GE cafe

Installation Instructions

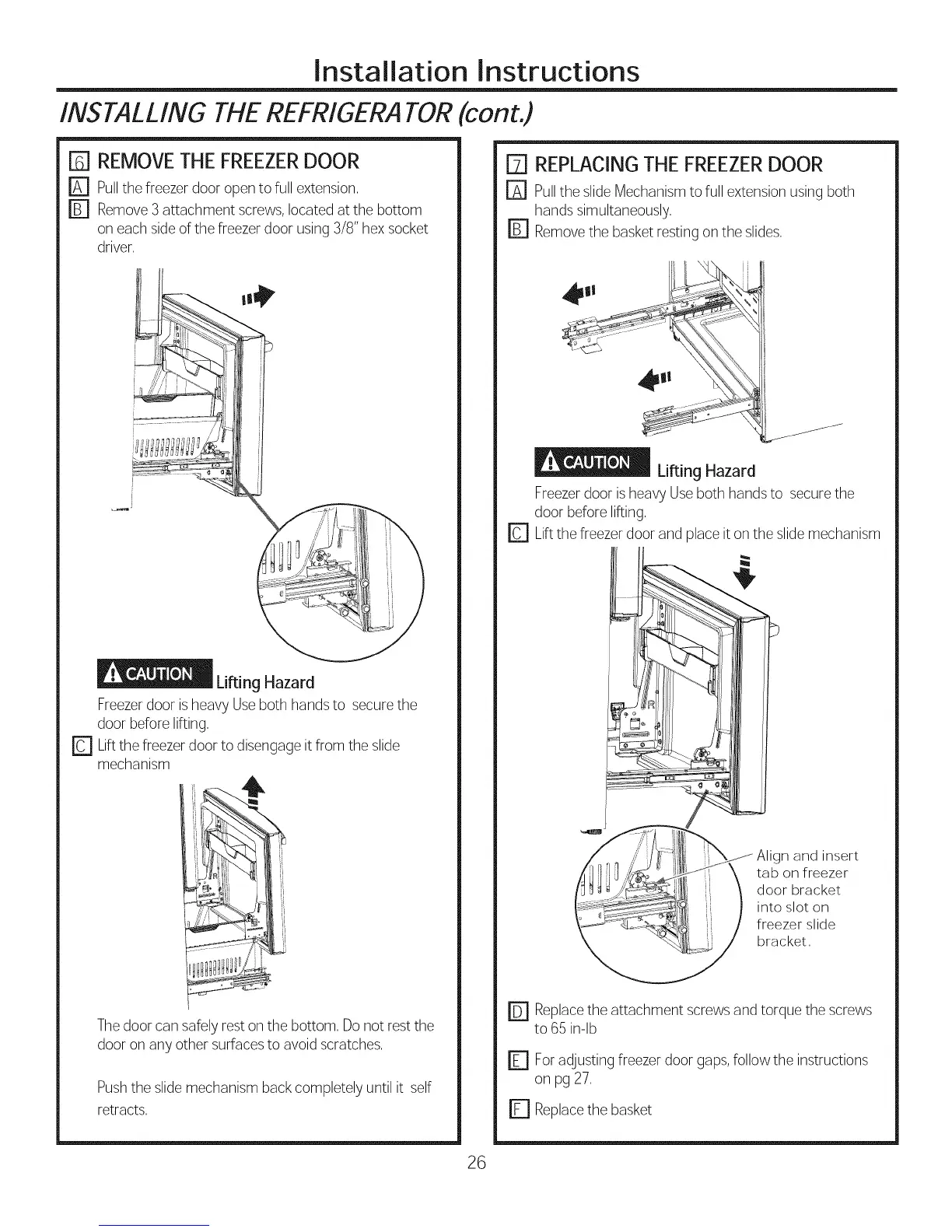

INSTALLING THE REFRIGERATOR (cont.)
l'_ REMOVETHE FREEZERDOOR
E] Pullthe freezer door open to full extension,
r_ Remove3 attachment screws, located at the bottom
on each sideof the freezerdoor using 3/8" hexsocket
driver,
i
_ Lifting Hazard
Freezerdoor isheavy Useboth hands to secure the
door before lifting,
[] Liftthe freezer door to disengage it from the slide
mechanism
Thedoor can safely rest on the bottom, Do not rest the
door on any other surfacesto avoid scratches,
Pushthe slide mechanism back completely until it self
retracts,
E] REPLACING THE FREEZERDOOR
r_ Pullthe slide Mechanism to full extension using both
hands simultaneously,
r_ Removethe basket resting on the slides,
Lifting Hazard
Freezerdoor isheavy Useboth handsto secure the
door before lifting,
r_ Liftthe freezer door and place it on the slide mechanism
Align and insert
tab on freezer
door bracket
into slot on
freezer slide
bracket,
r_ Replacethe attachment screws and torque the screws
to 65 in-lb
F] Foradjusting freezer door gaps, follow the instructions
on pg 27,
F] Replacethe basket
26
