GE Corometrics 171 Service Manual

Revision C 170 Series Monitor 5-9
2000947-004
Theory of Operation: Functional Overview
* Active low.

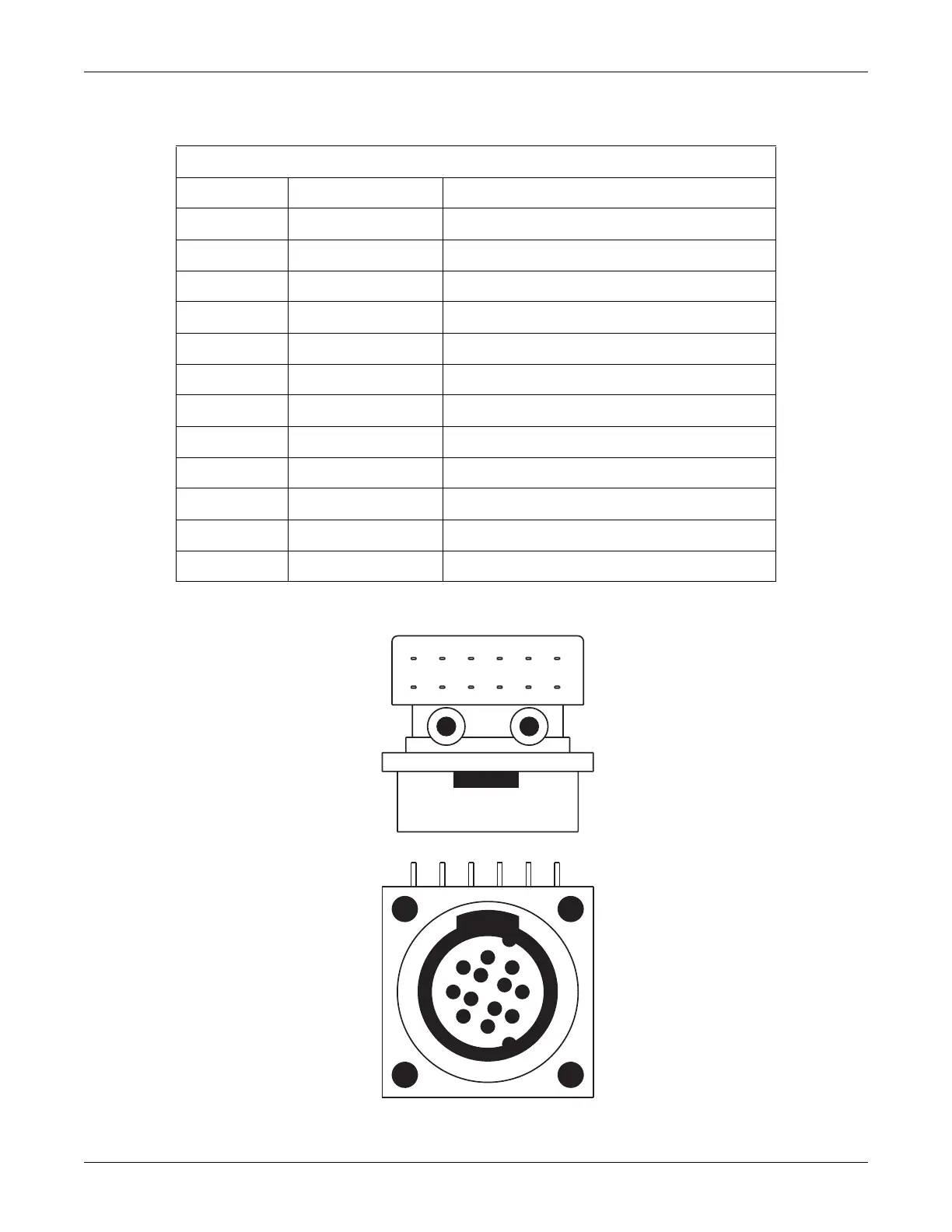

Figure 5-6. FECG Connector (facing the front panel from the outside)
Table 5-10. FECG Connector (Model 173)
Pin # Signal Name Signal Description
1 NC No Connection
2 FECGEN* Enable for FECG Channel
3 GND Chassis Ground
4 NC No Connection
5 NC No Connection
6 LA Left Arm
7 RA Right Arm
8 SHIELD Shield
9 NC No Connection
10 NC No Connection
11 NC No Connection
12 RL Right Leg
1
2
3
4
5
6
7
12
9
8
10
11
23
4
56
879
101112
1
