GE Multilin D60 Line Distance Protection System 4-23
4 HUMAN INTERFACES 4.3 FACEPLATE INTERFACE
4

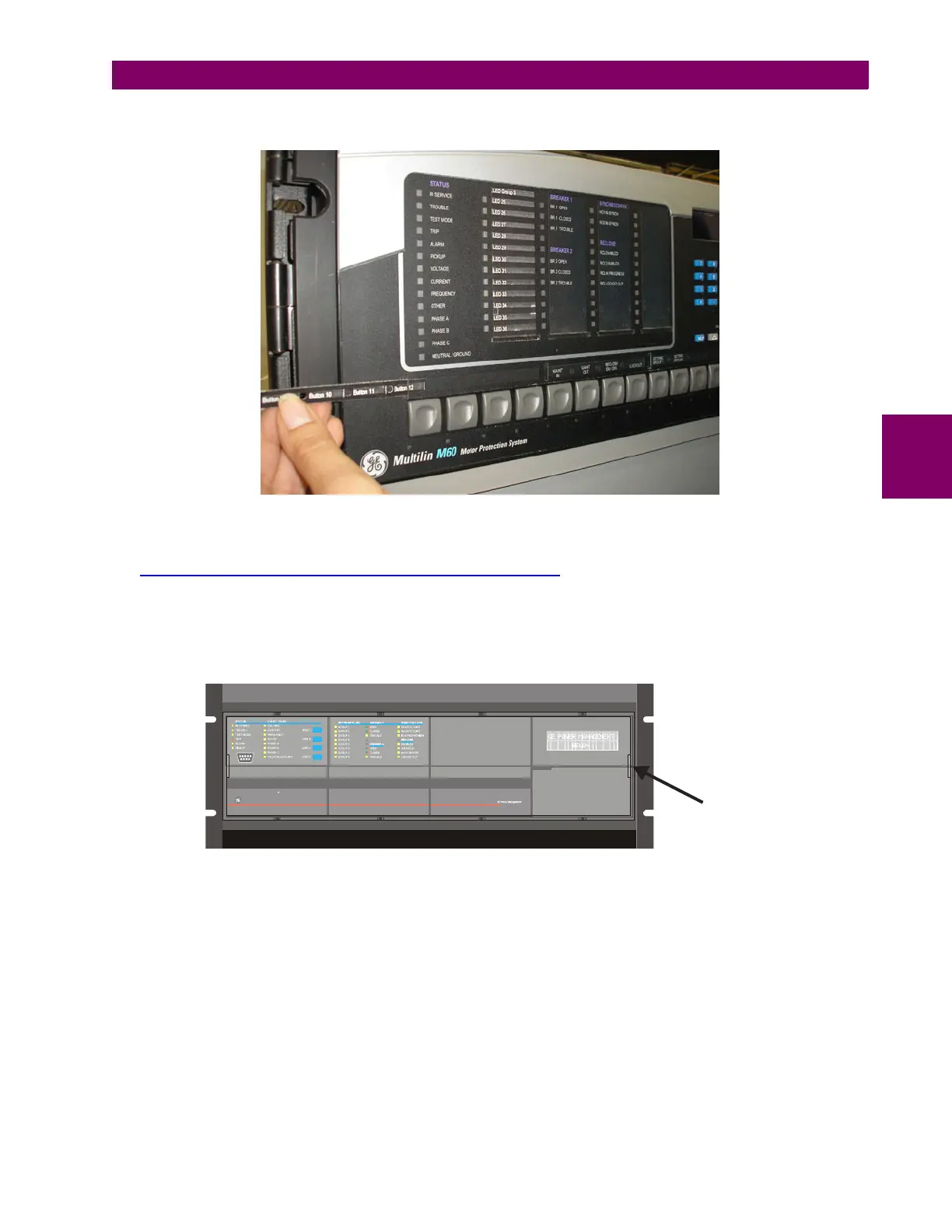

4. Slide the new user-programmable pushbutton label inside the pocket until the text is properly aligned with the buttons,
as shown below.
b) STANDARD FACEPLATE
Custom labeling of an LED-only panel is facilitated through a Microsoft Word file available from the following URL:
http://www.gedigitalenergy.com/products/support/ur/GET-8494A.doc
This file provides templates and instructions for creating appropriate labeling for the LED panel. The following procedures
are contained in the downloadable file. The panel templates provide relative LED locations and located example text (x)
edit boxes. The following procedure demonstrates how to install/uninstall the custom panel labeling.
1. Remove the clear Lexan Front Cover (GE Multilin part number: 1501-0014).
Push in and
gently lift cover
F60 FEEDER MANAGEMENT RELAYF60 FEEDER MANAGEMENT RELAYF60 FEEDER MANAGEMENT RELAYF60 FEEDER MANAGEMENT RELAY
R
842771A2.cdr
To Next Page
