GE D60 User Manual

GE Multilin D60 Line Distance Protection System 5-175
5 SETTINGS 5.6 GROUPED ELEMENTS
5

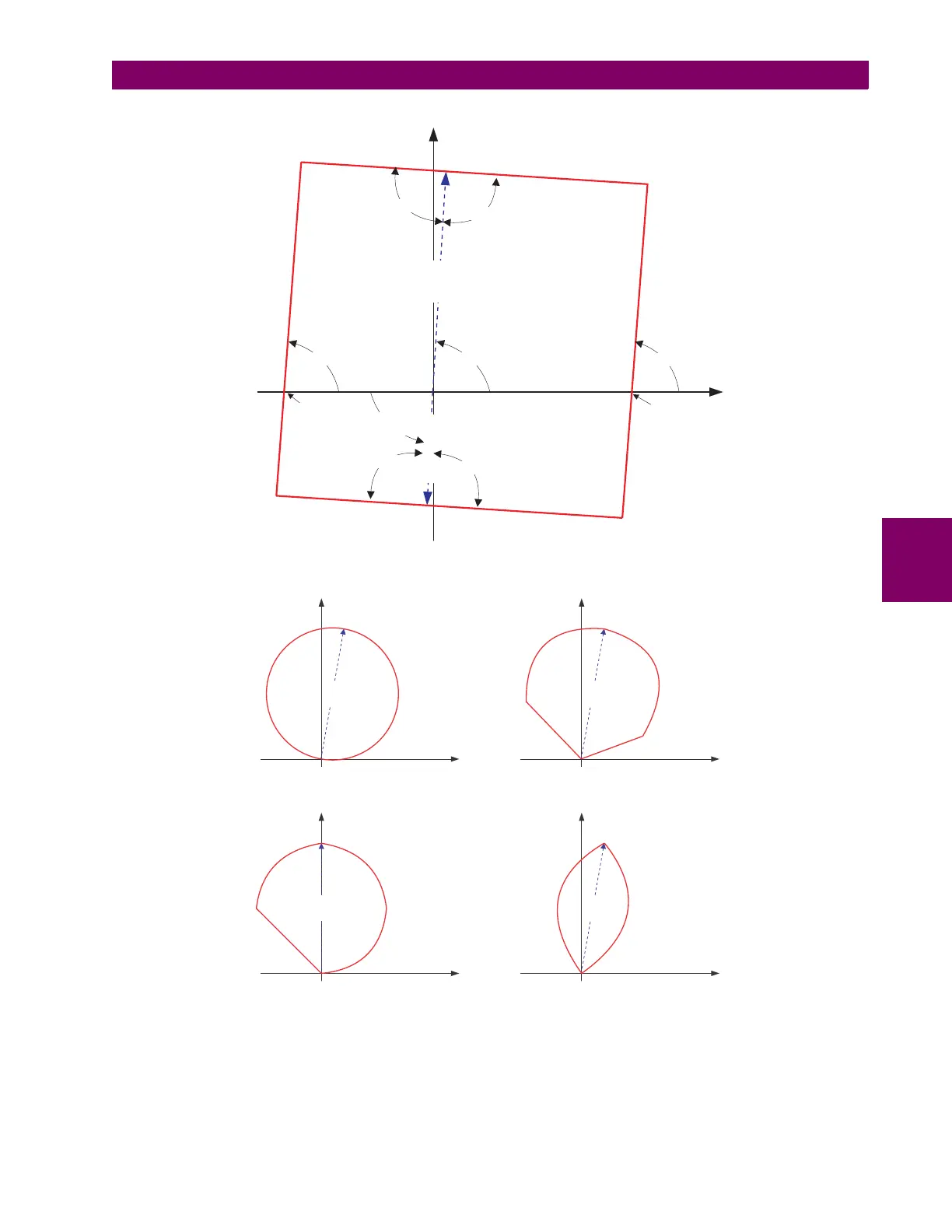

Figure 5–71: NON-DIRECTIONAL QUADRILATERAL PHASE DISTANCE CHARACTERISTIC
Figure 5–72: MHO DISTANCE CHARACTERISTIC SAMPLE SHAPES
837803A1.CDR
X
R
REACH
RCA
COMP LIMIT
COMP LIMIT
RGT BLD RCA
LFT BLD RCA
RGT BLD
-LFT BLD
REV REACH
REV REACH
RCA
COMP LIMIT
COMP LIMIT
837722A1.CDR
X
R
REACH
RCA = 80
o
COMP LIMIT = 90
o
DIR RCA = 80
o
DIR COMP LIMIT = 90
o
X
R
REACH
RCA = 80
o
COMP LIMIT = 90
o
DIR RCA = 80
o
DIR COMP LIMIT = 60
o
X
R
REACH
RCA = 80
o
COMP LIMIT = 60
o
DIR RCA = 80
o
DIR COMP LIMIT = 60
o
X
R
REACH
RCA = 90
o
COMP LIMIT = 90
o
DIR RCA = 45
o
DIR COMP LIMIT = 90
o
