5.7 CONTROL ELEMENTS 5 SETTINGS
5
The active AR mode is memorized (latched) on power cycling. This means that the relay uses the last-used mode on
power-up. The AR mode resets to the default mode (specified by the AR MODE setting) when any settings in the autore-
close function are changed.

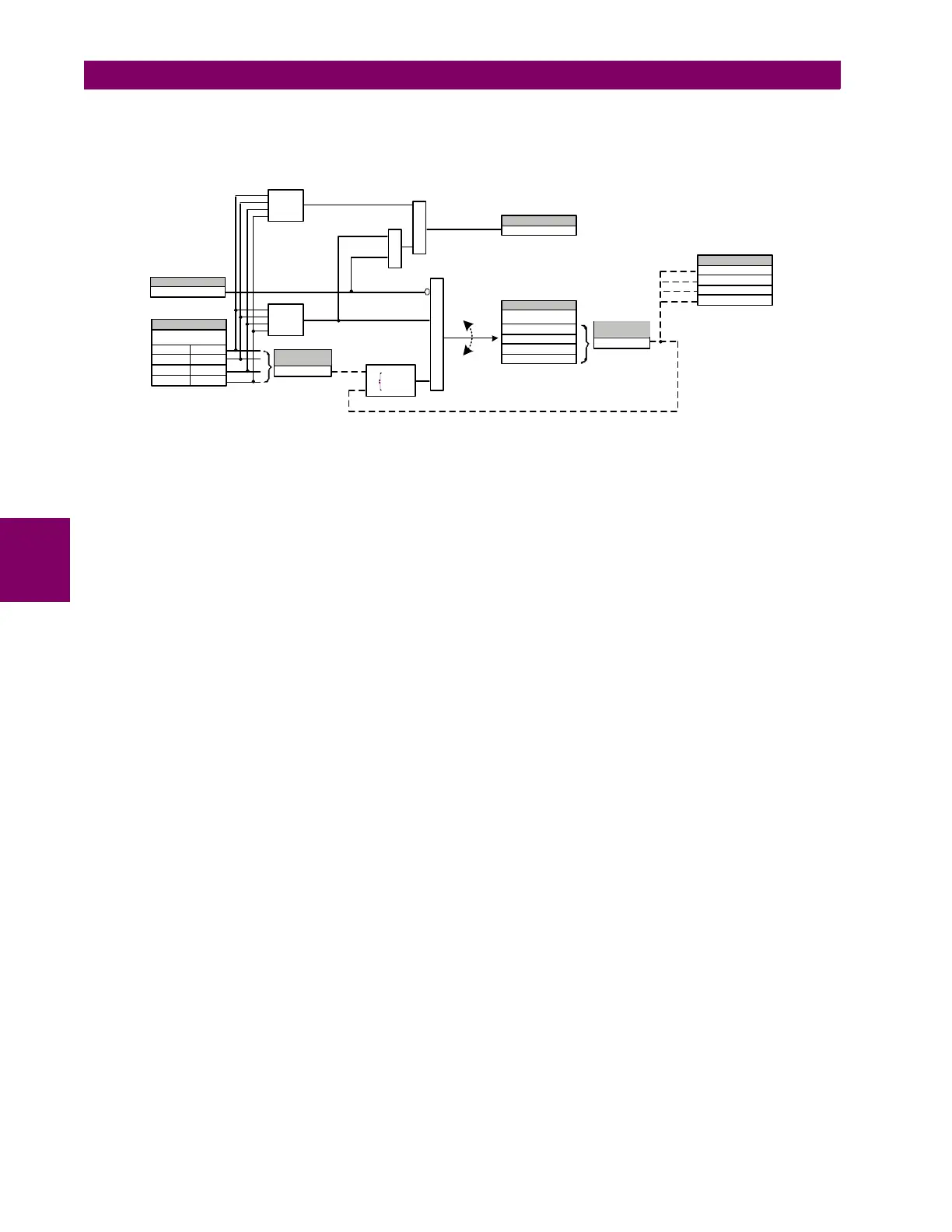

Figure 5–145: MODE CONTROL LOGIC
In addition, the current AR mode is available as FlexLogic Operands because AR Mode equals to 1, 2, 3, and 4 respec-
tively so that it can be monitored and logged.
FLEXLOGIC OPERAND
AR RIP
AND
Off = 0
Mode 1:
Off = 0
Mode 2:
Off = 0
Mode 3:
Off = 0
Mode 4:
Only 1
out of 4
is high
AR Mode Activation
SETTING
SETTING
AR M0DE:
Mode 1: 1 & 3 Pole
Mode 2: 1 Pole
Mode 3: 3 Pole - A
Mode 4: 3 Pole -B
Mode to be activated
a=1….4
Current AR Mode
b=1….4
Switch to
new mode
Note: only one mode can
be activated at a time.
Simultaneous multiple
modes activation will be
ignored.
FLEXLOGIC OPERAND
AR MODE =1
AR MODE =2
AR MODE =3
AR MODE =4
=
1 if a ≠ b
0 otherwise
a
b
Multiple (>1)
inputs are
high
AND
OR
FLEXLOGIC OPERAND
AR MODE SWITCH FAIL
427248A1.vsd
