GE DNCD450EG7WC - Installation Instructions; Preparing for Installation of New Dryer; Electrical Connection Information

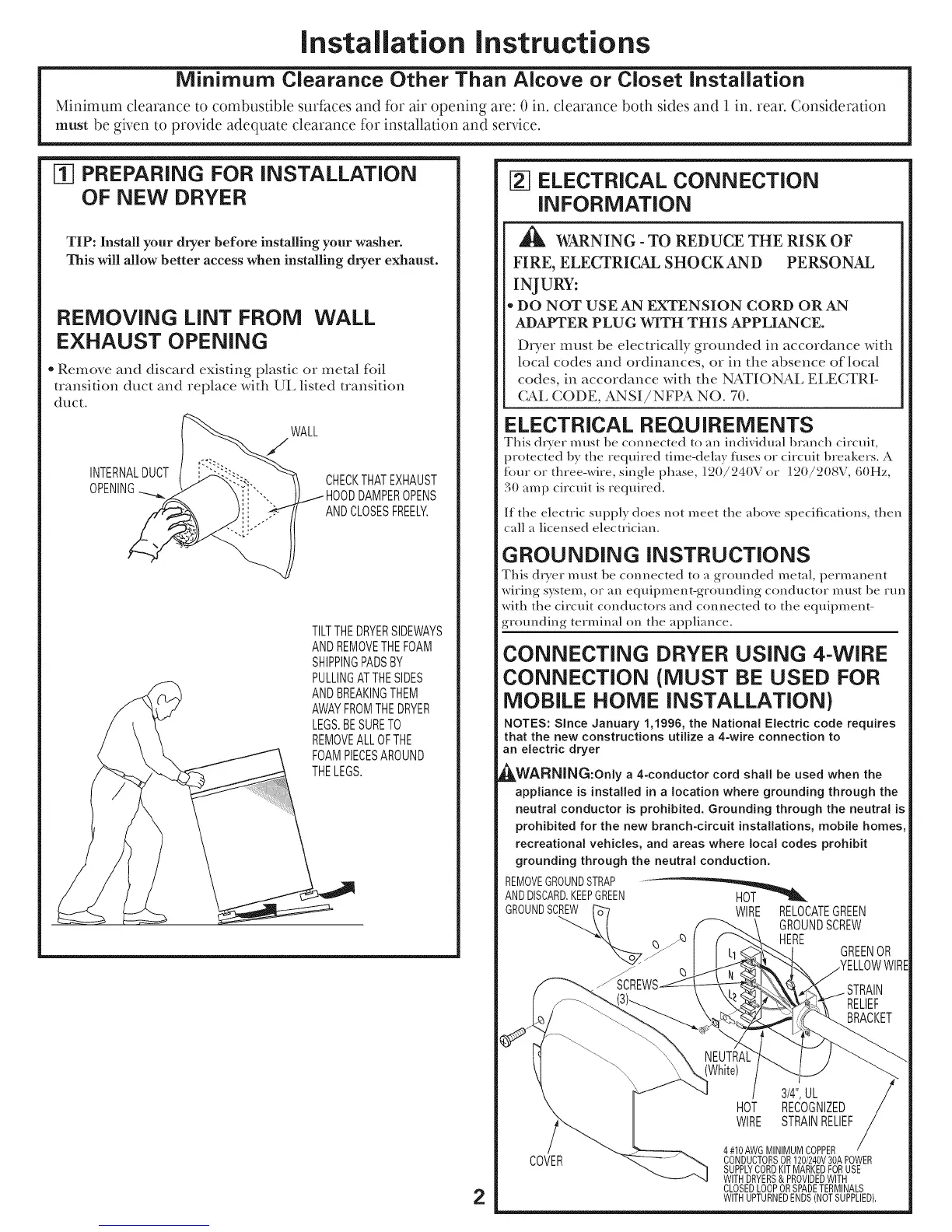

Installation instructions
Minimum Clearance Other Than Alcove or Closet Installation
Minimum clearance m combustible surfhces and for air opening are: 0 in. clearance bod_ sides and 1 in. rear. Consideration
must be given m provide adequate clearance ff)r installation and service.
I-f] PREPARING FOR iNSTALLATiON
OF NEW DRYER
TIP: Install your dryer before installing your washer,
This will allow better access when installing dryer exhaust.
REMOVING LiNT FROM WALL
EXHAUST OPENING
* Remove and discard existing plastic or metal foil
transition duct and replace with UL listed transition
duct°
WALL
/
INTERNALDUCT
CHECKTHATEXHAUST
OPENING DAMPEROPENS
ANDCLOSESFREELY.
TILTTHEDRYERSIDEWAYS
ANDREMOVETHEFOAM
SHIPPINGPADSBY
PULLINGATTHESIDES
ANDBREAKINGTHEM
AWAYFROMTHEDRYER
LEGS.BESURETO
REMOVEALLOFTHE
FOAMPIECESAROUND
THELEGS.
2
[_ ELECTRICAL CONNECTION
iNFORMATiON
A
WARNING- TO REDUCE THE RISK OF
FIRE, ELECTRICAL SHOCKAND PERSONAL
INJURY:
e DO NOT USE AN EXTENSION CORD OR AN
ADAt_ER PLUG WITH THIS APPLIANCE.
Dwer must be electrically grounded in accordance with
local codes and ordinances, or in the absence of local
codes, in accordance with the NATIONAL ELECTRI-
CAL CODE, ANSI/NFPA NO. 70.
ELECTRICAL REQUIREMENTS
This dryer must be connected to an individual branch circuit,
protected by the required time-delay fllses or circuit breakers. A
Ibm or three-wire, single phase, 120/240V or 120/208V, 60Hz,
30 amp circuit is required.
If the electric supply does not meet the aboxe specifications, then
call a licensed electrician.
GROUNDING INSTRUCTIONS
This dryer must be connected to a grounded metal, permanent
wiring system, or an equipmen/-grounding conductor must be run
with the circuit conductors and connected to the equipment-
grounding terminal on the appliance.
CONNECTING DRYER USING 4-WIRE
CONNECTION (MUST BE USED FOR
MOBILE HOME INSTALLATION)
NOTES: Since January 1,1996, the National Electric code requires
that the new constructions utilize a 4-wire connection to
an electric dryer
t_WARNING:only a 4-conductor cord shah be used when the
appliance is installed in a location where grounding through the
neutral conductor is prohibited. Grounding through the neutral is
prohibited for the new branch-circuit installations, mobile homes,
recreational vehicles, and areas where local codes prohibit
grounding through the neutral conduction.
REMOVEGROUNDSTRAP -
ANDDISCARD,KEEPGREEN
HOT-"'_
GROUNDSCREW WIRE RELOCATEGREEN
GROUNDSCREW
HERE
GREENOR
