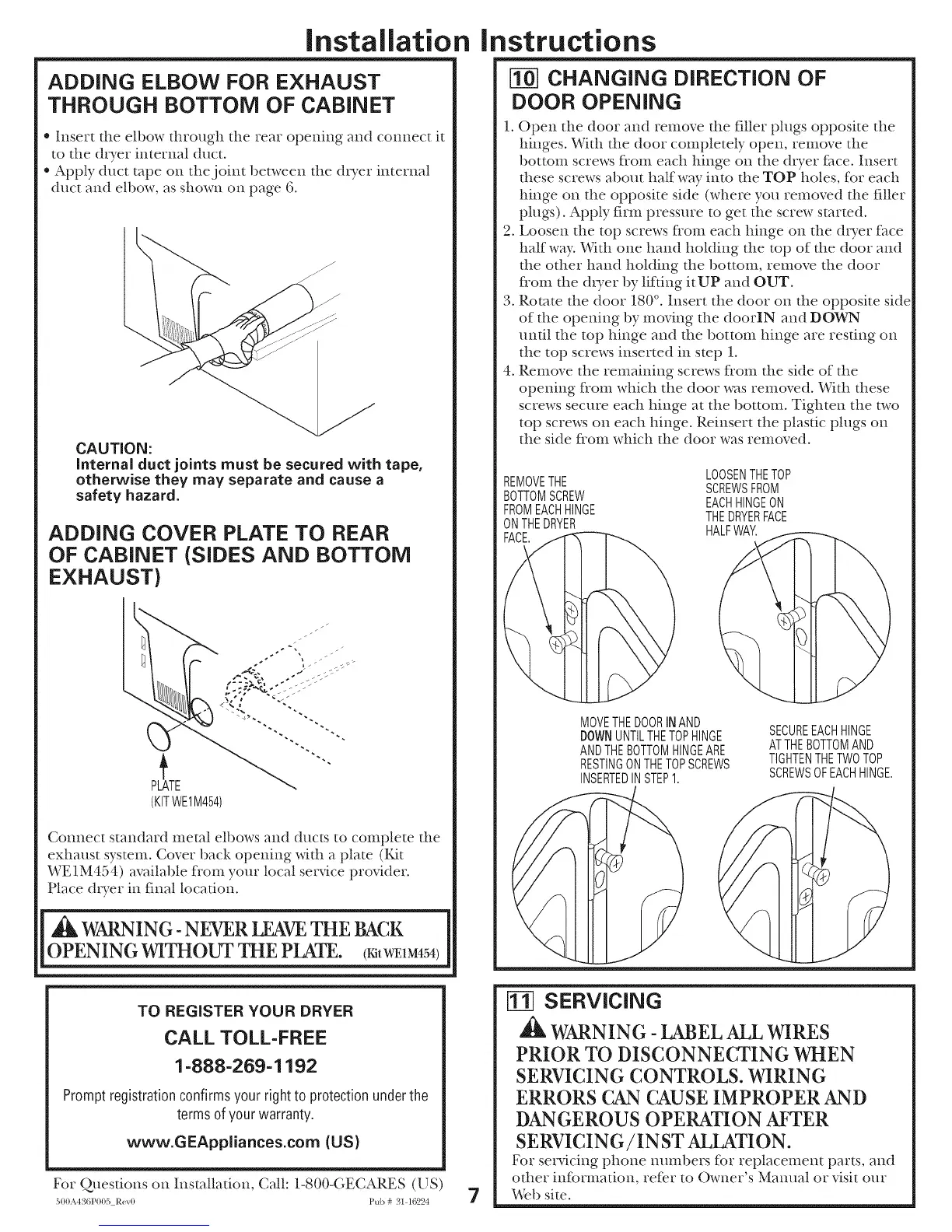

Installation
ADDING ELBOW FOR EXHAUST
THROUGH BOTTOM OF CABINET
* Insert tile elbow through the rear opening and connect it
to the dryer internal duct.
* Apply duct tape oil thejoim between tile dryer internal
duct and elbow, as shown oil page 6.
CAUTION:
Internal duct joints must be secured with tape,
otherwise they may separate and cause a
safety hazard.
ADDING COVER PLATE TO REAR
OF CABINET (SIDES AND BOTTOM
EXHAUST)
PLATE
÷
(KITWE1M454)
Connect standard metal elbows and ducts to complete the
exhaust system. Cover back opening with a plate (Fdt
WEIM454) available from your local service provider.
Place dryer in final location.
_ WARNING-NEVER LEAVE THE BACK ]
OPENING WITHOUT THE PLATE. (KitWglM454)
Instructions
CHANGING DIRECTION OF
DOOR OPENING
1. Open the door and remove the filler plugs opposite the
hinges. With the door completely open, remove the
bottom screws from each hinge on the dryer face. Insert
these screws about half way into the TOP holes, for each
hinge on the opposite side (where you removed the filler
plugs). Apply firm pressure to get the screw started.
2. Loosen the top screws from each hinge on the dryer face
half way. With one hand hoMing the top of the door and
the other hand holding the bottom, remove the door
from the dD'er by lifting itUP and OUT.
3. Rotate the door 180 °. Insert the door on the opposite side
of the opening by moving the doorlN and DOWN
mltil the top hinge and the bottom hinge are resting on
the top screws inserted in step 1.
4. Remove the remaining screws from the side of the
opening from which the door was removed. With these
screws secure each hinge at the bottom. Tighten the two
top screws on each hinge. Reinsert the plastic plugs on
the side from which the door was removed.
REMOVETHE
BOTTOMSCREW
FROMEACHHINGE
ONTHEDRYER
_.__FAC_
LOOSENTHETOP
SCREWSFROM
EACHHINGEON
THEDRYERFACE
HALFWAY.
MOVETHEDOORINAND
DOWNUNTILTHETOPHINGE
ANDTHEBOTTOMHINGEARE
RESTINGONTHETOPSCREWS
INSERTEDINSTEP1.
SECUREEACHHINGE
ATTHEBOTTOMAND
TIGHTENTHETWOTOP
SCREWSOFEACHHINGE.
TO REGISTER YOUR DRYER
CALL TOLL-FREE
1-888-269-1192
Prompt registration confirms your right to protection under the
terms of your warranty.
www.GEAppliances.com (US)
For Questions on Installation, Call: 1-800-GECARES (US)
5(t(t,\4 _tiPO05 Re'J) Pub # 31 16224 7
SERVICING
WARNING- LABEL ALL WIRES
PRIOR TO DISCONNECTING WHEN
SERVICING CONTROLS. WIRING
ERRORS CAN CAUSE IMPROPER AND
DANGEROUS OPERATION AFTER
SERVICING/INST ALIATION.
For servicing t)hone numbers for replacement parts, and
other information, refer to Owner's Manual or visit our
Web sire.
