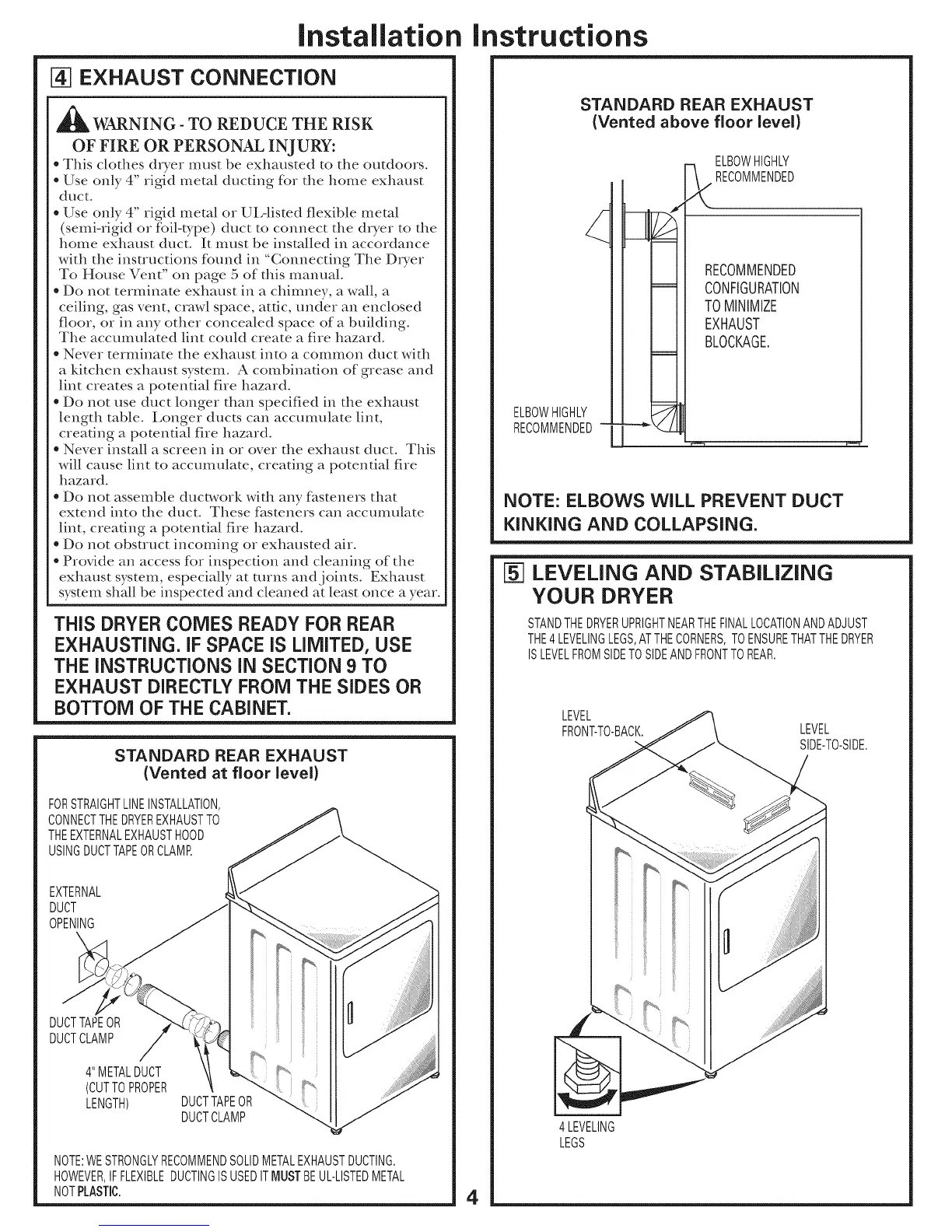

Installation
[-4-]EXHAUST CONNECTION
_ WARNING - TO REDUCE THE RISK
OF FIRE OR PERSONAL INJURY:
* This clothes dIyer must be exhausted to the outdoors.
* Use only 4" rigid metal ducting for the home exhaust
duct.
. Use only 4" rigid metal or UI,-listed flexible metal
(semi-rigid or foil-type) duct to connect the d_Ter to the
home exhaust duct. It must be installed in accordance
with the instructions found in "Connecting The Dryer
To House Vent" on page 5 of this manual.
* Do not terminate exhaust in a chimney, a wall, a
ceiling, gas vent, crawl space, attic, under an enclosed
floor, or in any other concealed space of a building°
The accumulated lint could create a fire hazard.
* Never terminate the exhaust into a common duct with
a kitchen exhaust system. A combination of grease and
lint creates a potential fire hazard.
* Do not use duct longer than specified in the exhaust
length table. Longer ducts can accumulate lint,
creating a potential fire hazard.
* Never install a screen in or over the exhaust duct. This
will cause lint to accumulate, creating a potential fire
hazard.
* Do not assemble ducta, vork with any fasteners that
extend into the duct. These fasteners can accumulate
lint, creating a potential fire hazard.
* Do not obstruct incoming or exhausted air.
* Provide an access for inspection and cleaning of the
exhaust system, especially at turns and joints. Exhaust
system shall be inspected and cleaned at least once a year.
THiS DRYER COMES READY FOR REAR
EXHAUSTING. iF SPACE iS LiMiTED, USE
THE iNSTRUCTiONS iN SECTION 9 TO
EXHAUST DIRECTLY FROM THE SIDES OR
BOTTOM OF THE CABINET.
STANDARD REAR EXHAUST
{Vented at floor level)
FORSTRAIGHTLINEINSTALLATION,
CONNECTTHEDRYEREXHAUSTTO
THEEXTERNALEXHAUSTHOOD
USINGDUCTTAPEORCLAMP.
EXTERNAL
DUCT
OPENING
DUCTTAPEOR
DUCTCLAMP
4"METALDUCT
(CUTTOPROPER
LENGTH)
DUCTTAPEOR
DUCTCLAMP
NOTE:WESTRONGLYRECOMMENDSOLIDMETALEXHAUSTDUCTING.
HOWEVER,IFFLEXIBLEDUCTINGISUSEDITMUSTBEUL-LISTEDMETAL
NOTPLASTIC.
instructions
STANDARD REAR EXHAUST
{Vented above floor level)
ELBOWHIGHLY
RECOMMENDED--
=
ELBOWHIGHLY
_ RECOMMENDED
RECOMMENDED
CONFIGURATION
TOMINIMIZE
EXHAUST
BLOCKAGE.
NOTE: ELBOWS WiLL PREVENT DUCT
KiNKiNG AND COLLAPSING.
[_ LEVELING AND STABiLiZiNG
YOUR DRYER
STANDTHEDRYERUPRIGHTNEARTHEFINALLOCATIONANDADJUST
THE4LEVELINGLEGS,ATTHECORNERS,TOENSURETHATTHEDRYER
ISLEVELFROMSIDETOSIDEANDFRONTTOREAR.
LEVEL
FRONT-TO-BACK.
LEVEL
SIDE-TO-SIDE.
4 LEVELING
LEGS
4
