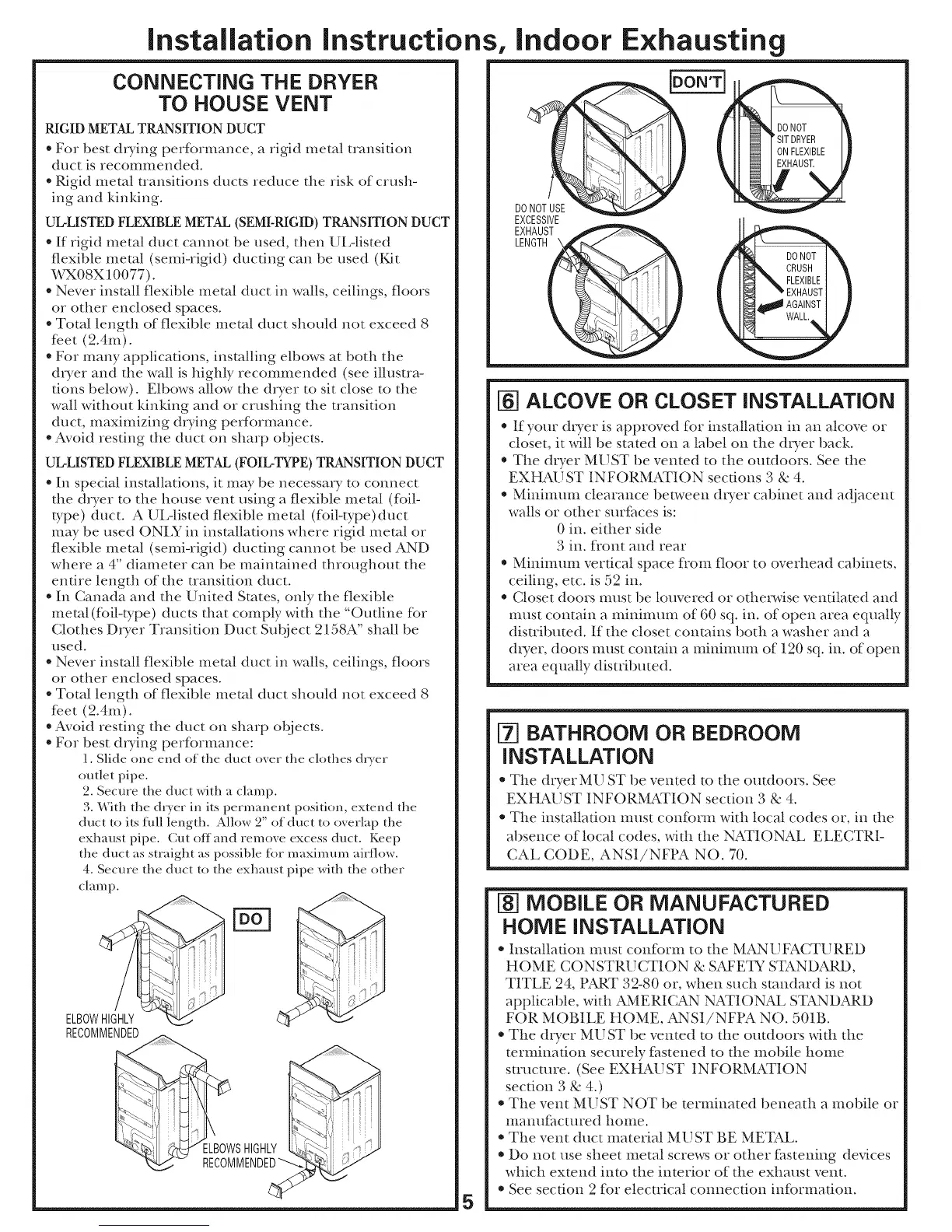

Installation instructions, indoor Exhausting
CONNECTING THE DRYER
TO HOUSE VENT
RIGID METAL TRANSITION DUCT
* For best dxying perfk_rmance, a rigid metal transition
duct is recommended.
* Rigid metal transitions ducts reduce the risk of crush-
ing and kinking.
UL-LISTED FLEXIBLE METAL (SEMI-RIGID) TRANSITION DUCT
* If rigid metal duct cannot be used, then Ul,-listed
flexible metal (semi-rigid) ducting can be used (Kit
WX08X10077).
* Never install flexible metal duct in walls, ceilings, floors
or other enclosed spaces.
* Total length of flexible metal duct should not exceed 8
feet (2.4m).
* For many applications, installing elbows at both the
diyer and the wall is highly recommended (see illustra-
tions below). Elbows allow the d_yer to sit close to the
wall without kinking and or crushing the transition
duct, maximizing d,ying perf_rmance.
* Avoid resting the duct on sharp objects.
UL-LISTEDFLEXIBLEMETAL(FOIL-TYPE) TRANSITION DUCT
* In special installations, it may be necessai T to connect
the d_Ter to the hot_se vent using a flexible metal (fkfil-
type) dt_ct. A UL-listed flexible metal (fkfil-type)dt_ct
may be t]sed ONIX in installations where rigid metal or
flexible metal (semi-rigid) ducfing cannot be used AND
where a 4" diameter can be maintained throughout the
entire length of the transition dt_ct.
* In Canada and the United States, only the flexible
metal (f_il-type) ducts that comply with the "Outline f_r
Clothes D_yer Transition Duct Subject 2158A" shall be
used.
*Never install flexible metal duct in walls, ceilings, floors
or other enclosed spaces.
*Total length of flexible metal duct should not exceed 8
feet (2.4m).
*Avoid resting the duct on sharp objects.
*For best drying perf_rmance:
]. Slide one end of the duct over the clothes dryer
outlet pipe.
2. Secure the duct with a clamp.
3. With the d_yer in its permanent position, extend the
duct to its fifll length. Allow 9" of duct to overlap the
exhaust pipe. Cut offand remove excess duct. Kee I)
the duct as straight as possible t_r maximum airflow.
4. Secure the duct to the exhaust pipe with the other
clamp.
ELBOWHIGHLY
RECOMMENDED
__ SHIGHLY I
MENDED
ALCOVE OR CLOSET iNSTALLATiON
* If yore" dlTer is approved for installation in an alcove or
closet, it will be stated on a label on the dryer back.
° The dryer MUST be vented to the outdoors. See the
EXHAUST INFORMATION sections 3 & 4.
* Minimmn clearance between duer cabinet and adjacent
walls or other surfaces is:
0 in. either side
3 in. Kont and rear
* Minimmn vertical space from floor to overhead cabinets,
ceiling, etc. is 52 in.
* Closet doors must be iouvered or othetwvise ventilated and
must contain a minimum of 60 sq. in. of open area equally
distributed. If the closet contains both a washer and a
duet, doors must contain a minimum of 120 sq. in. of open
area equally distributed.
BATHROOM OR BEDROOM
INSTALLATION
* The dryerMU ST be vented to the outdoors. See
EXHAUST INFORN_TION section 3 & 4.
* The installation must conform with local codes or, in the
absence of local codes, with the NATIONAL ELECTRI-
CAL CODE, ANSI/NFPA NO. 70.
5
FSqMOBILE OR MANUFACTURED
HOME INSTALLATION
° Installation must conform to the MANUFACTURED
HOME CONSTRUCTION & SAFETY STANDARD,
TITLE 24, PART 32-80 or, when such standard is not
applicable, with %MERICAN NATIONAL STANDARD
FOR MOBILE HOME, ANSI/NFPA NO. 501B.
° The dryer MU ST be vented to the outdoors with the
termination securely fastened to the mobile home
structure. (See EXHAUST INFORMATION
section 3 & 4.)
* The vent MUST NOT be terminated beneath a mobile or
mam_factured home.
* The vent duct material MU ST BE METAL.
* Do not use sheet metal screws or other fastening devices
which extend into the interior of the exhaust vent.
* See section 2 for electrical connection information.
