GE Evolution E9000 Series - Page 32

32 EVOLUTION SERIES E9000 MOTOR CONTROL CENTER
—
38
—
38
Partially close the
door as shown
—
39
—
39
Adjust the pilot
device bracket and
extension bubble lip
so it enters in between
the keeper bracket and
inside of the door
—
40
—
40
Close the door
completely and turn
the 1/4-turn latches
1/4
Turn Latch

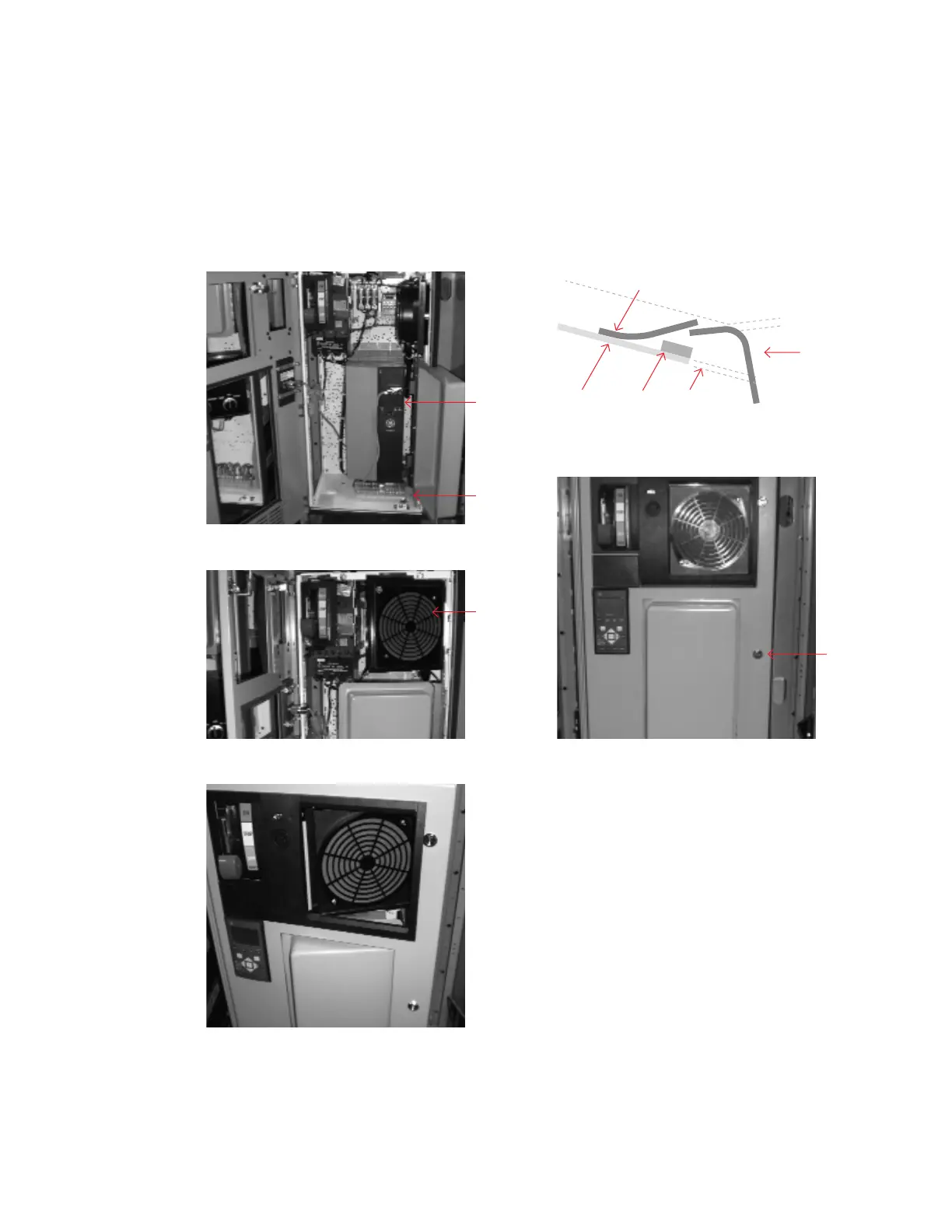

Door closing procedure of pilot device bracket, extension bubble door for some
GP/FP drives E9000 MCC units
Variable
Frequency
Drive
Extension
Bubble
—
36
—
36
Door, pilot device bracket
and extension bubble
in open position
—
37
—
37
Partially close the
pilot device bracket
and extension
bubble as shown
PD Bracket
Extension Bubble
Door
Door Cut Out

Locking Bracket
