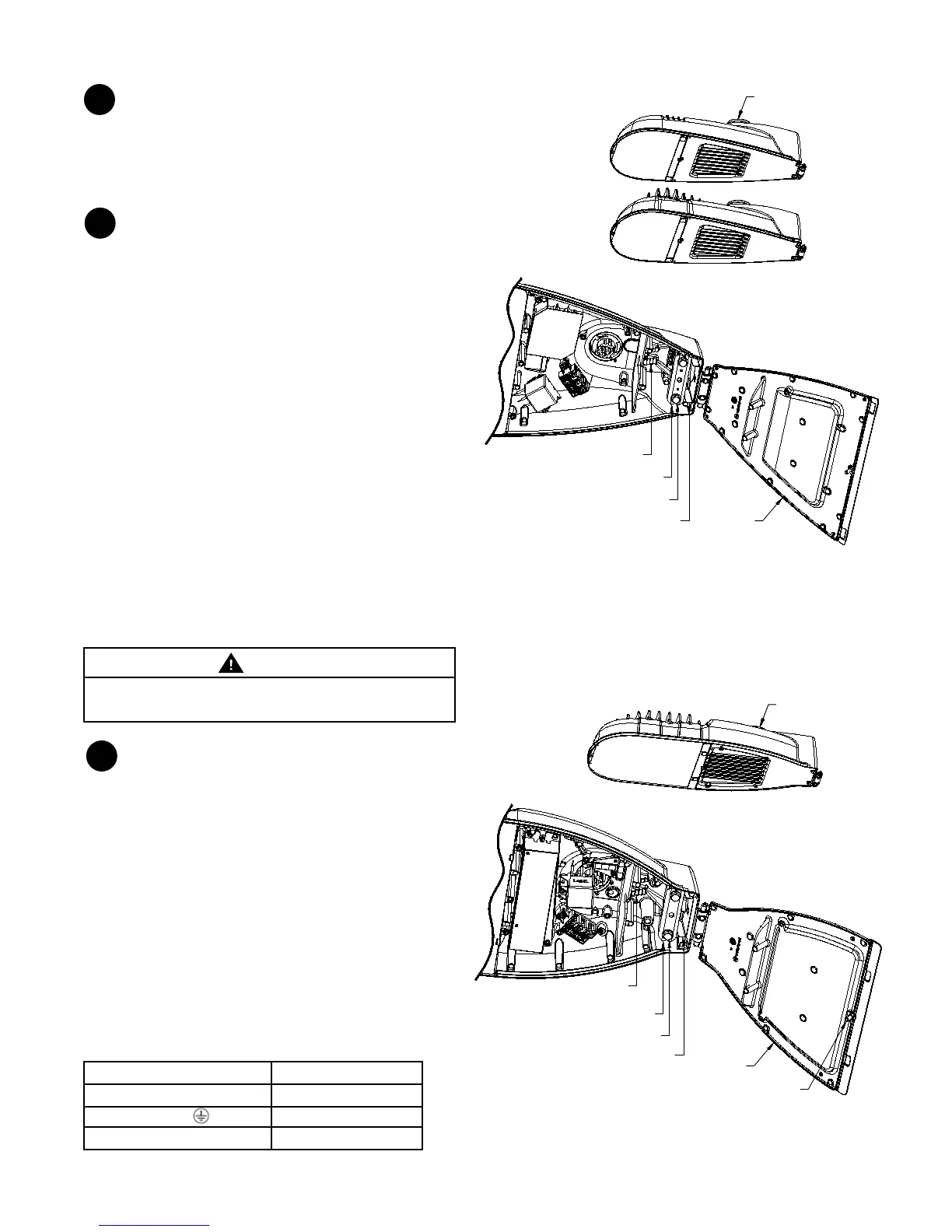

Figure 1: ERL1/ERLH
WIRING
3
NOTE: Make all electrical connections in accordance
with the National Electrical Code and any applicable
local code requirements including grounding.
NOTE: Verify supply voltage matches nameplate rating
• Use #6 thru #16 AWG service leads and match the
nameplate’s service lead temperature rating.
• Extend service leads approximately 7 inches past
pipe/mounting bracket end.
• Attach service leads to terminal board as shown on
terminal board and noted in Table 1. Torque to 35 in-lbs.
•
For wired dimming controls, attach dimming leads per
Table 2.
TABLE 1. Terminal Board Connections
• This luminaire has been packed to ensure no damage
during transit. Inspect to confirm.
• Do not impact or stack luminaire after unpacking.
PE Receptacle
Door
Bird Shield
Mounting Bolts
Pipe Clamps
Leveling Steps
Figure 2: ERL2
PE Receptacle
Door
Door Screw
Bird Shield
Mounting Bolts
Pipe Clamps
Leveling Steps
UNPACKING/HANDLING
1
Bird Shields
• The bird shield behind the pipe clamp has a 1 ¼ -inch
(1.660 OD ) opening. Remove shield if larger pipe is used.
Mounting Arm
• Unfasten, open and remove door from hinge cradle.
•
Adjust pipe clamp opening slightly larger than pipe size.
• Insert mounting arm through bird-shield (if used)
and into the luminaire until it hits the leveling-steps
extending from top of housing.
• Tilt the luminaire up or down using the leveling-steps.
A pad is provided on top of housing for a hand-level.
• To level, hold luminaire approximately level and snug
up bolts (4-5 foot-pounds).
- If upward tilt is needed, loosen the bolts slightly, lift
luminaire and insert it to the next set of steps.
- If downward tilt is needed, extract the mounting
arm from the luminaire to sit on a more rearward
set of steps.
• Once level, tighten each mounting bolt to 10-12
foot-pounds, alternating between bolts.
MOUNTING
2
WARNING
DO NOT torque bolts greater than 12 ft-lbs. Damage
may occur.
Terminal Board Position Supply Lead
L1 High Line
G Ground
N/L2 Low Line/Neutral
