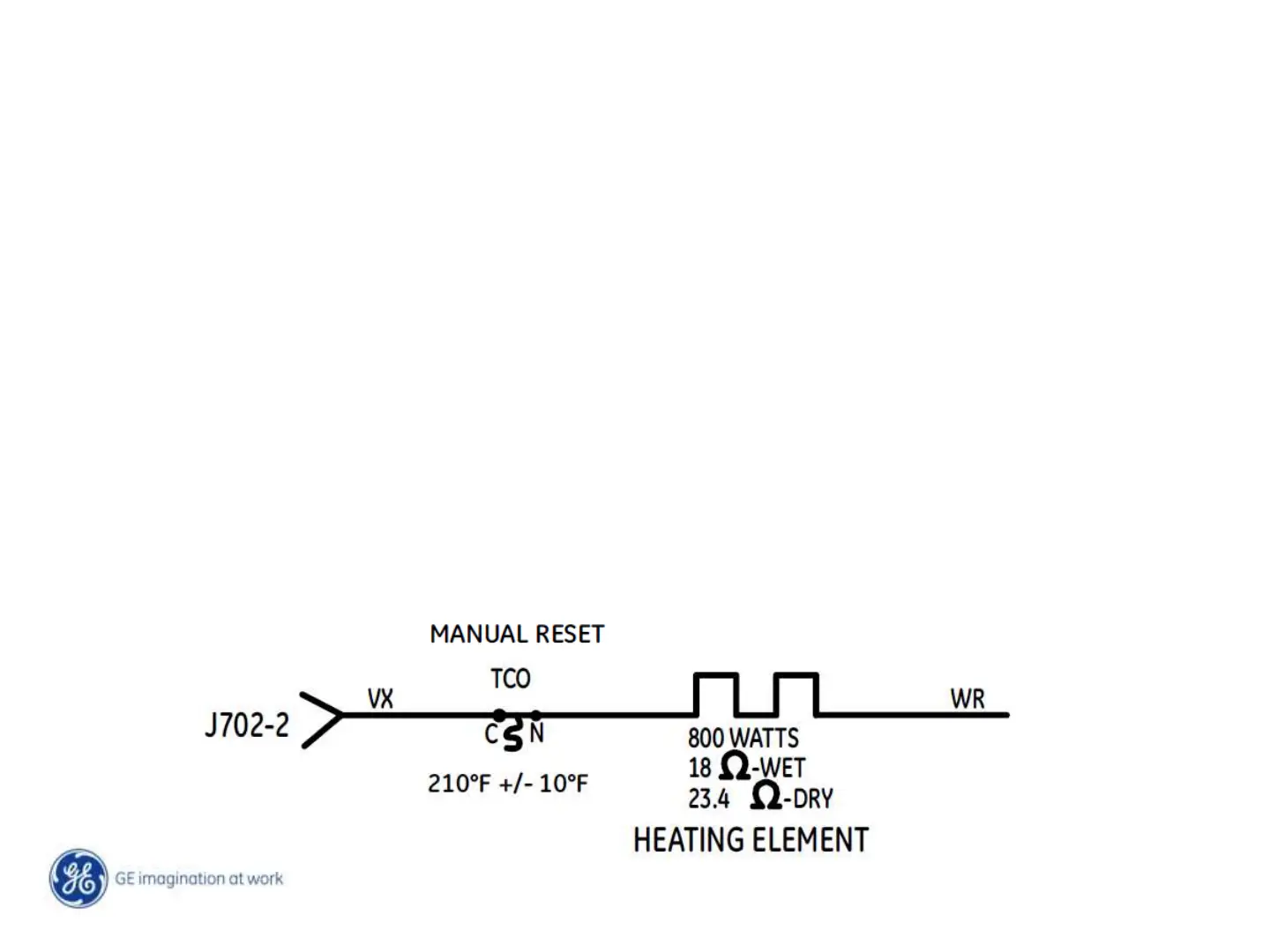

Dry System
Heater:
• 120 VAC,
• Dry Condition - 23.4 ohm dry, 5.125 amps
• Wet condition - 18 ohm & 6.7 amps
Tub TCO:
• Location is bottom of tub, right side approx. 12 inches from front
• 120 VAC, 210f +/- 10 Manual Reset
• If the TCO trips – reset and replace the main control
The Heater will cycle when heated dry is selected for the first 20
minutes of the heat cycle
J702-1
