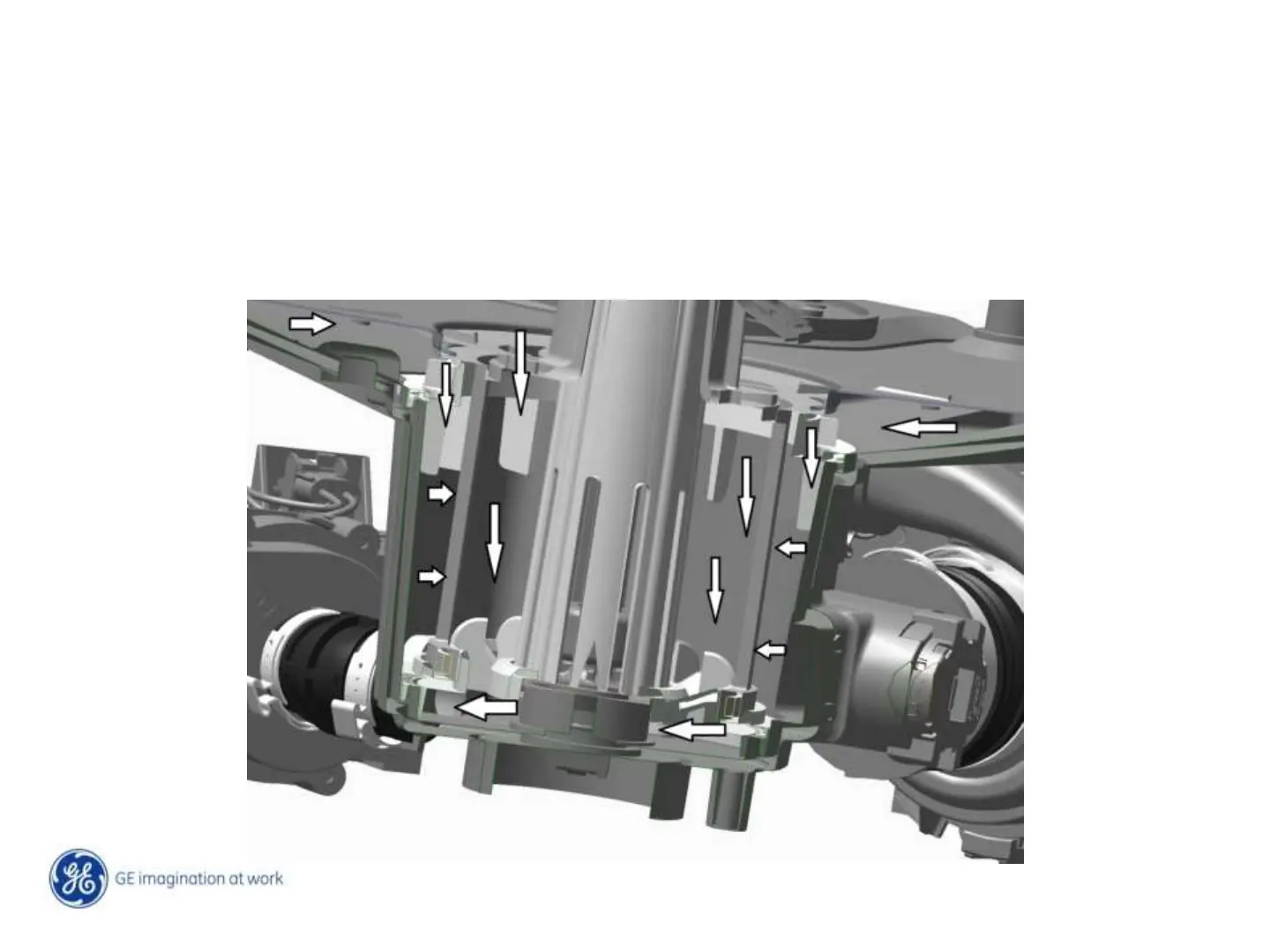

Drain water will take 2 paths, both entering the drain pump.
• Some water will pass through the coarse filter and causing the Fine Filter to
rinse debris to the floor plate and into the drain pump
• Some water will pass directly down to the floor plate, washing debris into the
pump and out through the drain hose
Drain Water
