GE GDF510PGDBB

60 /
Copyright General Electric 2011
9/23/2012

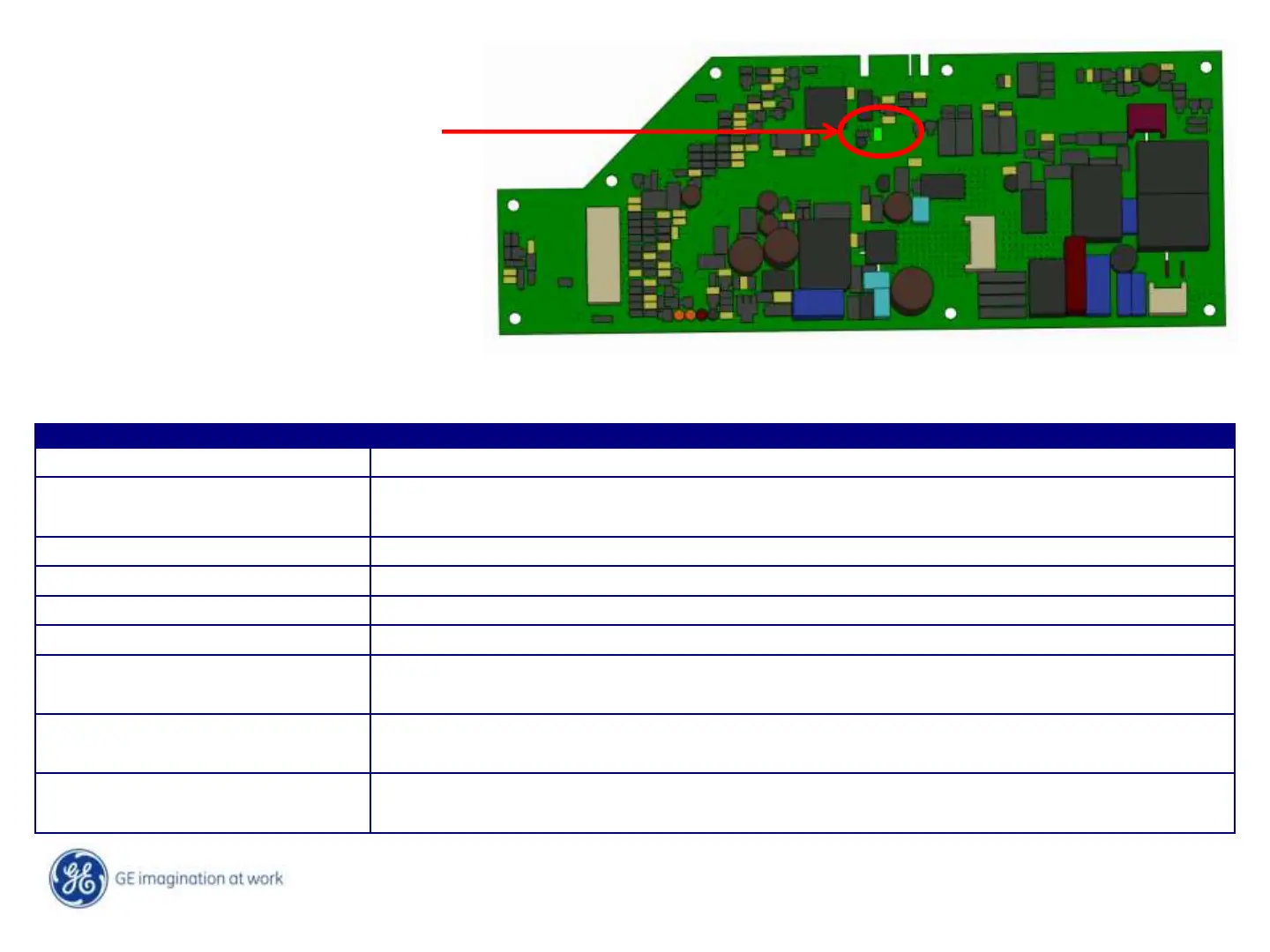

Service LED:
This is a Control Status LED
on the main control board
Allows accurate diagnoses
Of UI and Main Control Boards
Blink Pattern
Meaning
1x every 3 sec
Unit is not running a cycle. Select a cycle
and press start.
2x every 3 sec
Unit is in delay start and is waiting to start a cycle.
The cycle will begin once the
delay expires.
3x every 3 seconds
Unit is in the process of running a cycle.
4x every 3 seconds
Unit is paused.
Close the door and press the start key to resume the cycle.
5x every 3 seconds
Unit has completed a cycle and is end of cycle mode.
6x every 3 seconds
Control is in demo mode.
Press Heated Dry and Start for 5 seconds to exit.
Flashing(1x per second)
Communications Lost Between Control
boards. Check
connections, replace UI board
if necessary.
Flashing Rapidly (4x per
second) or Steady On
Software
Error. Replace Machine Control Board
Steady off
Unit is not powered. Check that power is available at unit.
Power supply failed. Check control voltages and replace machine control board.
