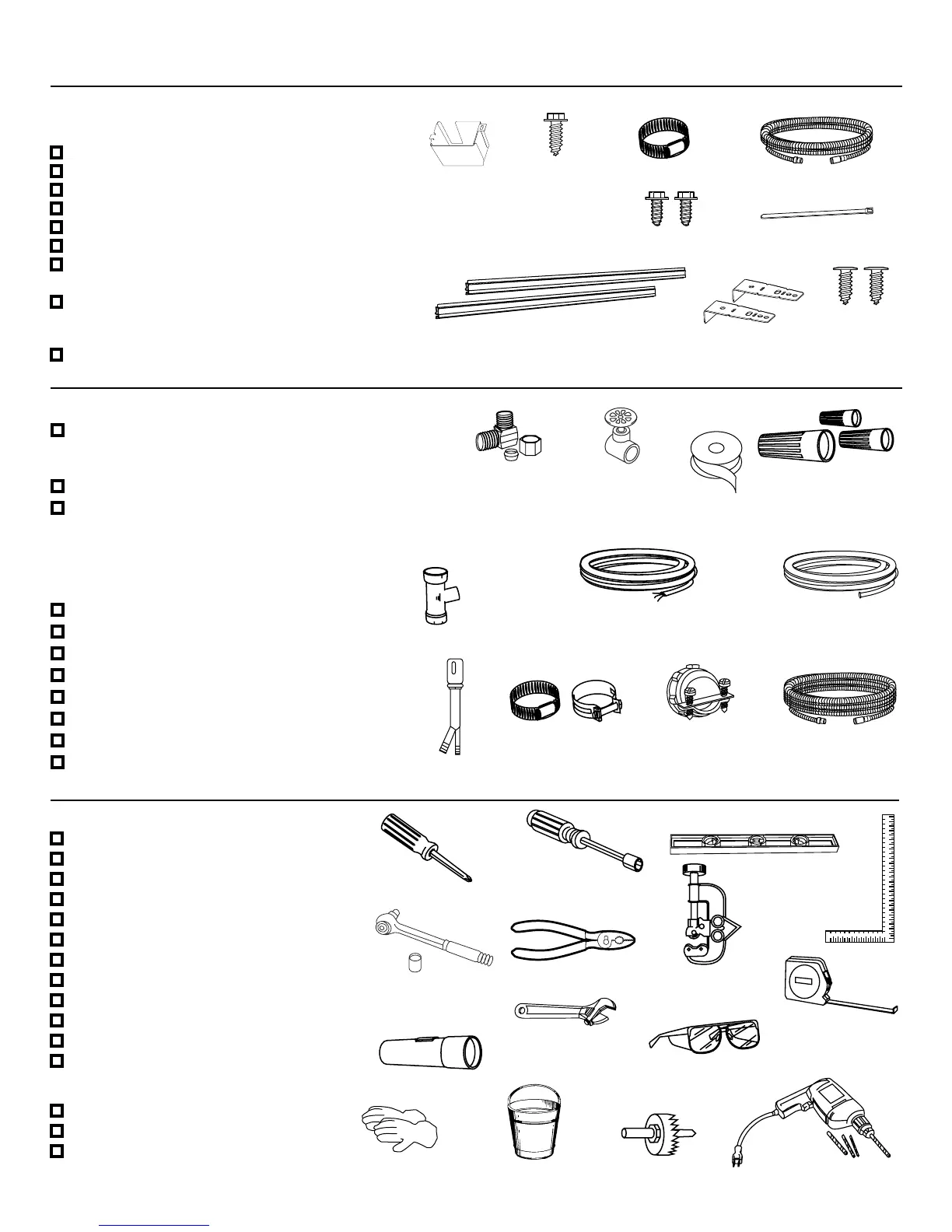

TOOLS YOU WILL NEED:
Phillips-head screwdriver
1/4" and 5/16" nutdriver
6" Adjustable wrench
Level
Carpenter's square
Measuring tape
Safety glasses
Flashlight
Bucket to catch water when ushing the line
15/16" socket (optional for skid removal)
Gloves
Pliers
For New Installations Only:
Tubing cutter
Drill and appropriate bits
Hole saw set
90° Elbow,
Ferrule and
Compression Nut
Hot Water Line
Hand
Shut-Off
Valve
Side Trim Pieces (on some models)
Hole Saw Set
Level
756Dia4
756Dia6
Thread
Seal Tape
756Dia7
756Dia8
756Dia9
756Dia11
Air Gap
756Dia12
756Dia13
Strain Relief
756Dia16
756Dia23
756Dia25
756Dia27
756Dia28
Drain Hose
Hose Clamp
#8 Hex-Head Mounting
Bracket Screws
923-02D
212Dia21
1/4" and 5/16"
Nutdriver
15/16" Socket
756Dia17
756Dia20
756Dia24
756Dia15
Bucket
756Dia26
Tubing Cutter
756Dia21
756Dia22
Drill and Bits
Flashlight
Gloves
Phillips-Head
Screwdriver
Carpenter's
Square
6"
Adjustable
Wrench
Safety Glasses
Pliers
Installation Preparation
2
Drain Hose Hanger
Hand Valve
Measuring Tape
PARTS SUPPLIED
IN INSTALLATION PACKAGE:
Junction box cover and #10 hex-head screw
Hose clamp
Drain hose (approximately 78" long)
Drain hose hanger
2 side trim pieces (some models)
Literature, samples and/or coupons
2 mounting brackets for wood countertops or
side
cabinets
2 #8-18 x 5/8" Phillips special head screws, to secure
dishwasher to underside of countertop or to side
cabinets
2 #8-18 hex head screws to secure brackets to
washer tub frame
MATERIALS YOU WILL NEED:
Ferrule, compression nut and 90° elbow (3/8"NPT
external thread on one end, opposite end sized
to fit water supply)
Thread seal tape
UL-listed wire nuts (3)
Materials Needed for
New Installations:
Air gap for drain hose, if required
Waste tee for house plumbing, if applicable
Electrical cable or power cord
Screw-type hose clamps
Strain relief for electrical connection
Hand shut-off valve (recommended)
Water line–3/8" minimum copper tubing
GPF12L drain hose (12' long), if needed
Junction
Box Cover
#10
Hex-Head
Junction
Box Screw
1/2" long
#10 hex screw
Optional
12' Drain Hose
GPF12L
Drain Hose 10ft.
Hot Water Line
Hose Clamps
Hose Clamps
Waste Tee
Electrical Cable
(or Power Cord, if applicable)
Wire Nuts (3)
756Dia19
Mounting
Brackets
#8 Phillips
Special
Head Screws
5/8" long
#8 Phillips Special
Head Screws
