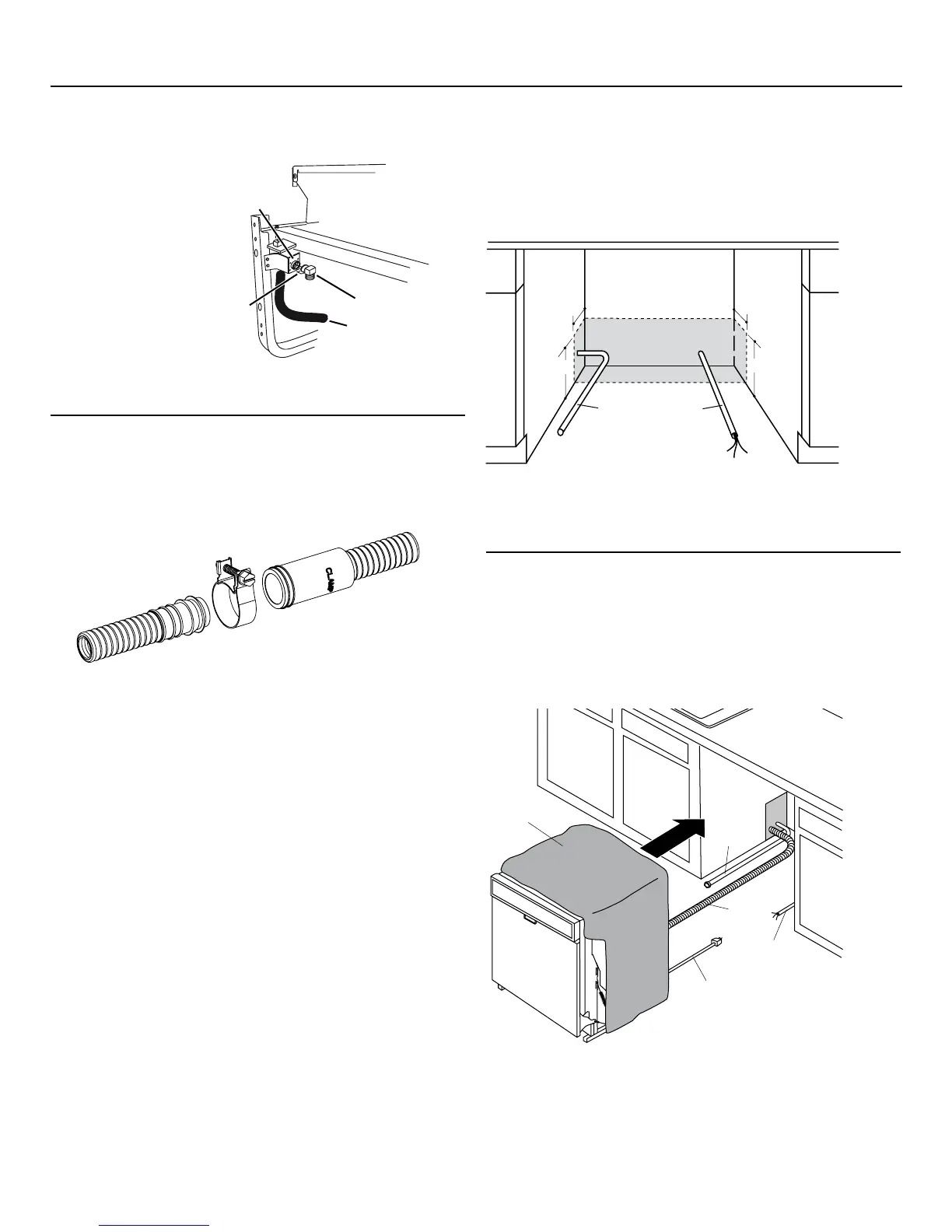

STEP 6: INSTALL DRAIN HOSE TO DRAIN
LOOP
Connect drain loop end to drain hose using the screw clamp as
shown in the figure.
STEP 5: INSTALL 90° ELBOW
• Wrap a 90° elbow with
thread seal tape.
• Thread 90° elbow
onto the water valve.
• Do not overtighten
elbow. Water valve
bracket could
bend or water valve
fitting could break.
• Position the end of
the elbow to face the
rear of the dishwasher.
Figure K
Dishwasher Installation
7
Front of Dishwasher
Water Valve
Bracket
90° Elbow
Fill Hose
Thread
Seal
Tape
Figure L
Power Cord
(If Used)
Insulation
Blanket
Water
Line
Maximum Drain Hose
Length 10'
House
Wiring
Drain
Hose
Figure N
STEP 8:
INSTALL DRAIN HOSE,
THROUGH CABINET
• Position dishwasher in front of cabinet opening. Insert drain
hose into the hole in cabinet side. If a power cord is used,
guide the end through a separate hole.
STEP 7: POSITION WATER LINE
AND HOUSE WIRING
• Position water supply line and house wiring on the floor of the
opening to avoid interference with base of dishwasher and
components under dishwasher.
Figure M
Water
Line
House
Wiring
4"
4"
6"
6"
Tip: Prevent unnecessary service call charges for ll, drain or
noise concerns.
Position utility lines so they do not interfere with anything
under or behind the dishwasher.
To Next Page
