INSTALL TRIM PIECES
In this step you will need the trim pieces set aside in Step 1.
• Select the top trim piece (See Figure R) and line up
center to the top latch. Press the trim piece onto the
tub flange moving from one side to the other.
• Select the left trim piece (see Figure R). Align top
edge with the top trim and press it onto the left side
of the tub flange moving from the top to the bottom.
Repeat for the right side tub flange trim piece. (See
Figure R for right side trim piece.)
Dishwasher Installation
SLIDE DISHWASHER
THREE-FOURTHS OF
THE WAY INTO CABINET
IMPORTANT – Do not push against front panel with
knees. Damage will occur.
•
Grasp the sides of the front panel and slide
dishwasher into the opening a few inches at a time.
• As you proceed, pull the drain hose through the
opening under the sink. Stop pushing when the
dishwasher extends about 6 inches forward of
adjacent cabinets.
• Make sure drain hose is not kinked under or behind
the dishwasher.
• Make certain the house wiring, drain line and
water line do not interfere with components under
dishwasher.
STEP 10

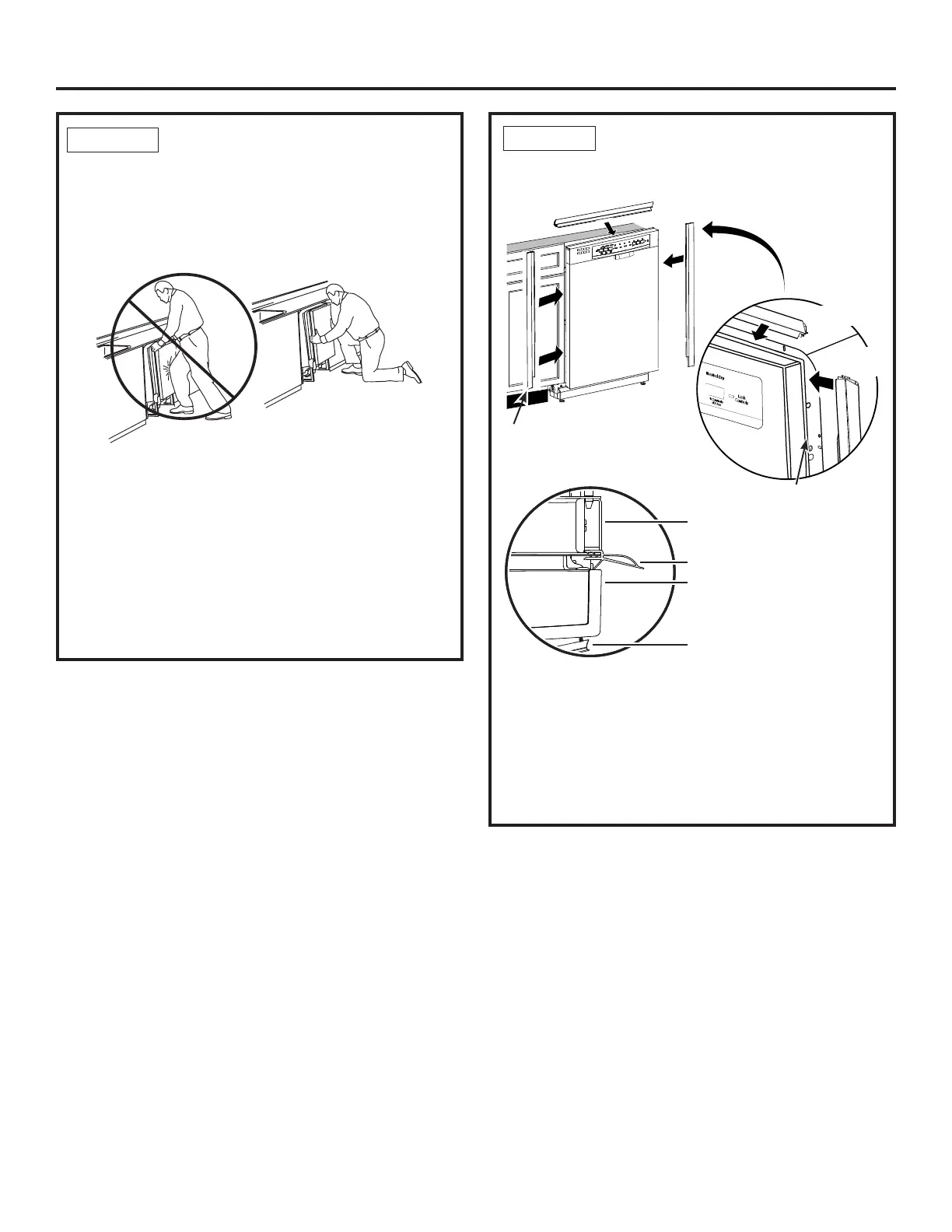

Figure Q
Do not push against
front door panel with
knee. Damage to the
door panel will occur.
8
Top
View
Handle
Door
Tub trim
Tub frame
STEP 11
Side Trim
Figure R
Side
Trim
Top View
Side
Trim
Top Trim
Fully seat to tub flange
To Next Page
