19 20
Ethernet cable 120ohm termination resistor is controlled by dip switch. "ON" means connected, and
"OFF" means disconnected, illustrated as the above figure.
Selection mode of terminal resistance dial switch with 120ohm.
• When single inverter is in communication, dial the terminal resistance dial switch to ON state (The
default is OFF) which is next to the RS485 communication port of inverter, so that the RS485
terminal is with 120ohm.and make the shielding layer of munication line single-point grounding, as
shown in the last figure.
• If multiple inverters are in communication, connect all the inverters in a daisy chain through the
RS485 communication cable For device at the end of daisy chain, dial the terminal resistance dial
switch to ON state (The default is OFF), and make the shielding layerof communication line
single-point grounding.
4.4.3 WiFi Communication
This function is only applicable for WiFi model, for specific configurations, please refer to "WiFi/LAN
Configuration Instruction" in the attachment, and you can also refer to the description of "Demo
Videos Of Monitoring Installation" on the http://www.goodwe.com/DownLoad.aspx website.
After the configurations are completed, please register on the website www.gesolarinverter.com.

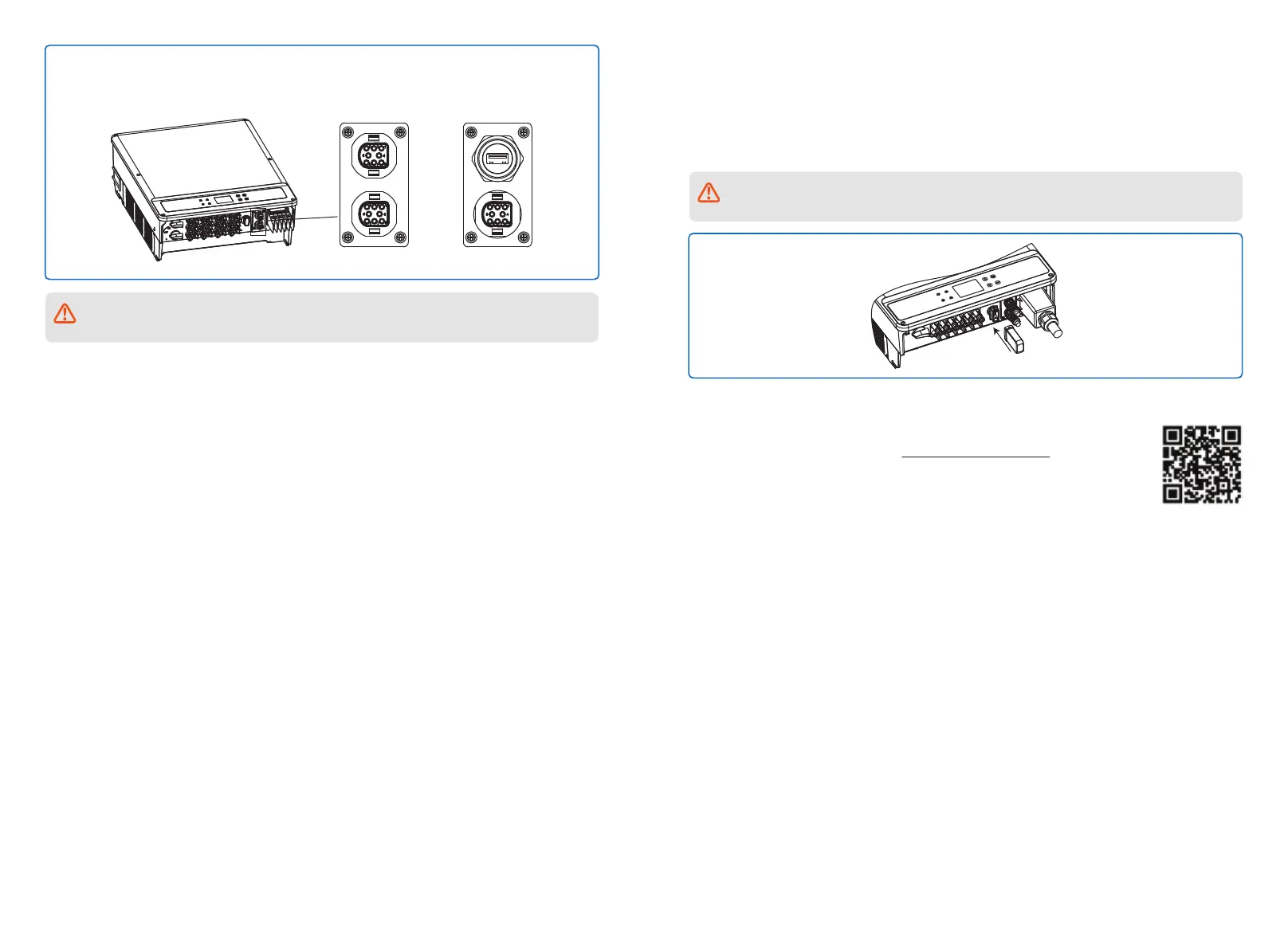

The WiFi module installation of series is shown in the below figure.
4.4.2 Earth Fault Alarm
The inverter complies with IEC62109-2 13.9. When earth fault occurs, Buzzer in EzLogger Pro will
ring for 1 minute, and RUN LED will be lighting for 1 minute. The alarm will ring again in half an hour
unless the fault is resolved.
Step 3:
Connect the terminal to the right position onto the inverter.
Cable requirements of RS485 communication: Shielded twisted-pair cable or shielded
twisted-pair.
The name and password of Wi-Fi cannot use symbols, only Arabic numerals or upper-
case /lowercase letters.
DRED
RS 485 RS 485
USB
OR
4.4.4 Monitoring Portal
Portal is an on-wire monitoring system. After completing the installation of commu-
nication connection, you can access
portal.gesolarinverter.com or download the
‘Power Sight’ App by scanning the QR code to monitor your PV plant and device.
Please contact after-sales for further details.
Power Sight
