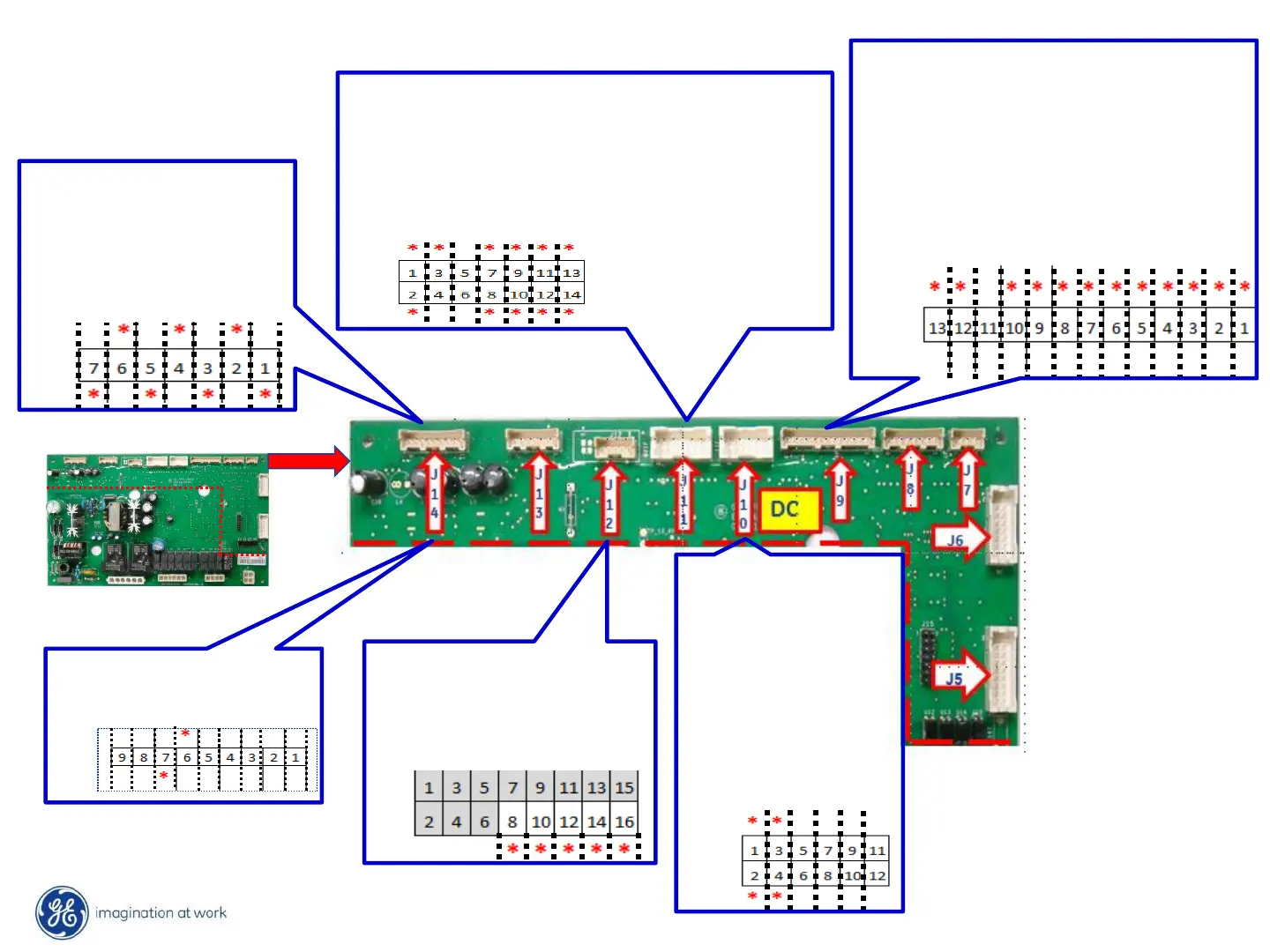

GE GFE29HSDASS - Main Control Board Connector Pinouts

120
5/4/2012
PIN 6 – FF LED s -
PIN 7 – FF LEDs +
J14
J13
PIN 1 – ZIGBEE BUS
PIN 2 – UI & DOOR BUS
PIN 3 – ZIGBEE & UI BRD GND -
PIN 4 – DOOR BRD GND -
PIN 5 - 12 VDC ZIGBEE BRD +
PIN 6 – 12 VDC UI BRD +
PIN 7 – 12 VDC DOOR BRD +
PIN 8 - 3 WAY VALVE
PIN 10 - 3 WAY VALVE
PIN 12 - 3 WAY VALVE
PIN 14 - 3 WAY VALVE
PIN 16 - 3 WAY VALVE
J12
PIN 1 - 12VDC DELI +
PIN 2 - DELI BUS
PIN 3 - DELI BRD GND
PIN 4 - OPEN
PIN 5 - OPEN
PIN 6 - OPEN
PIN 7 - DELI THERMISTOR 5VDC
PIN 8 - DELI THERMISTOR
J11
PIN 9 - FF EVAP THERMISTOR 5VDC
PIN 10 - FF EVAP THERMISTOR
PIN 11 – 5VDC THERMISTOR OPEN
PIN 12 – OPEN THERMISTOR
PIN 14 – FF THERMISTOR 5 VDC
PIN 16 – FF THERMISTOR
PIN 1 – 5VDC FZ THERMISTOR
PIN 2 – FZ THERMISTOR
PIN 3 – 5VDC FZ EVAP
THERMISTOR
PIN 4 – FZ EVAP THERMISTOR
PIN 5 - THERMISTOR 5VDC
PIN 6 – CNDVR
PIN 7 – FZ IM THERMISTOR 5VDC
PIN 8 – FZ IM THERMISTOR
PIN 9 - RAKE SENSOR 5VDC
PIN 10 – RAKE SENSOR
PIN 11 - GND
PIN 12 – FEELER ARM SENSOR
J10
PIN 1 – COND FAN 12 DC +
PIN 2 – COND FAN GND
PIN 3 – COND FAN PWM
PIN 4 – COND FAN RPM
PIN 5 - MAIN BRD HTR -
PIN 6 – MAIN BRD HTR 12VDC+
PIN 7 – FINVERTER SIGNAL -
PIN 8 – INVERTER SIGNAL +
PIN 9 - AMBIENT THERMISTOR 5 VDC+
PIN 10 – HUMIDITY 5 VDC +
PIN 11 – AMBIENT THERMISTOR
PIN 12 – HUMIDITY SENSOR SIGNAL
PIN 13 – MUMIDITY SENSOR GND
J9
Main Control Board DC
* Indicates a wire
in the connector
at that location
