121
5/4/2012

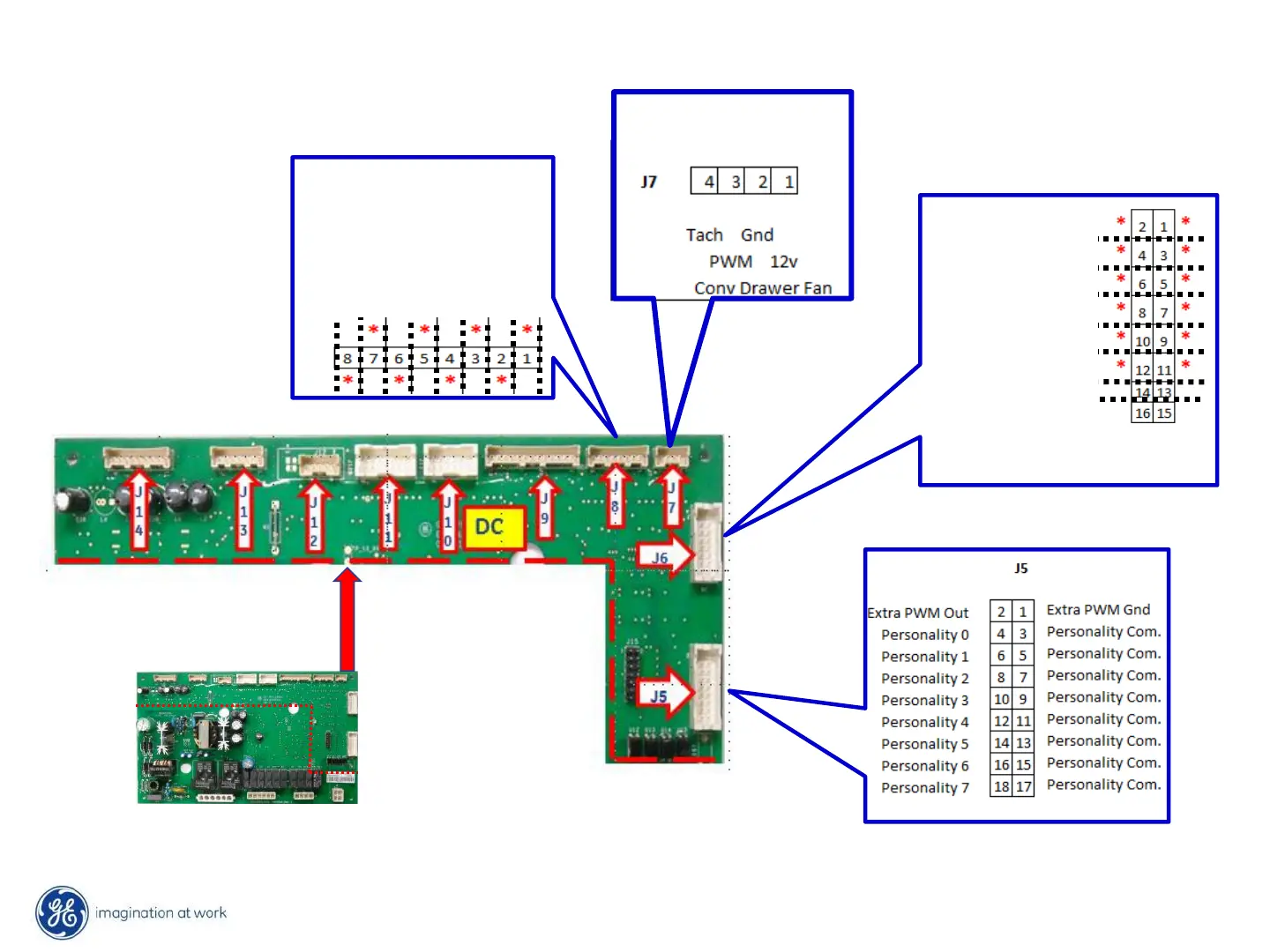

Main Control Board DC continued:
PIN 1 12 VDC FZ FZN+
PIN 2 12 VDC ICE BOX FAN +
PIN 3 GND FZ FZN
PIN 4 GND ICE BOX
PIN 5 - PWM FZ FAN
PIN 6 PWM ICE BOX FAN
PIN 7 RPM FZ FAN
PIN 8 RPM ICE BOX
J8
Future use
PIN 1 12VDC DELI FAN +
PIN 2 12VDC FF FAN +
PIN 3 GND DELI FAN
PIN 4 GND FF FAN
PIN 5 - RPM DELI FAN
PIN 6 RPM FF FAN
PIN 7 PWM DELI FAN
PIN 8 PWM FF FAN
PIN 9 - DELI DAMPER
PIN 10 DELI DAMPER
PIN 11 - DELI DAMPER
PIN 12 DELI DAMPER
PIN 13 OPEN
PIN 14 OPEN
PIN 15 OPEN
PIN 16 - OPEN
J6
MODEL ID
* Indicates a wire
in the connector
at that location
