GE GFE29HSDASS

122
5/4/2012

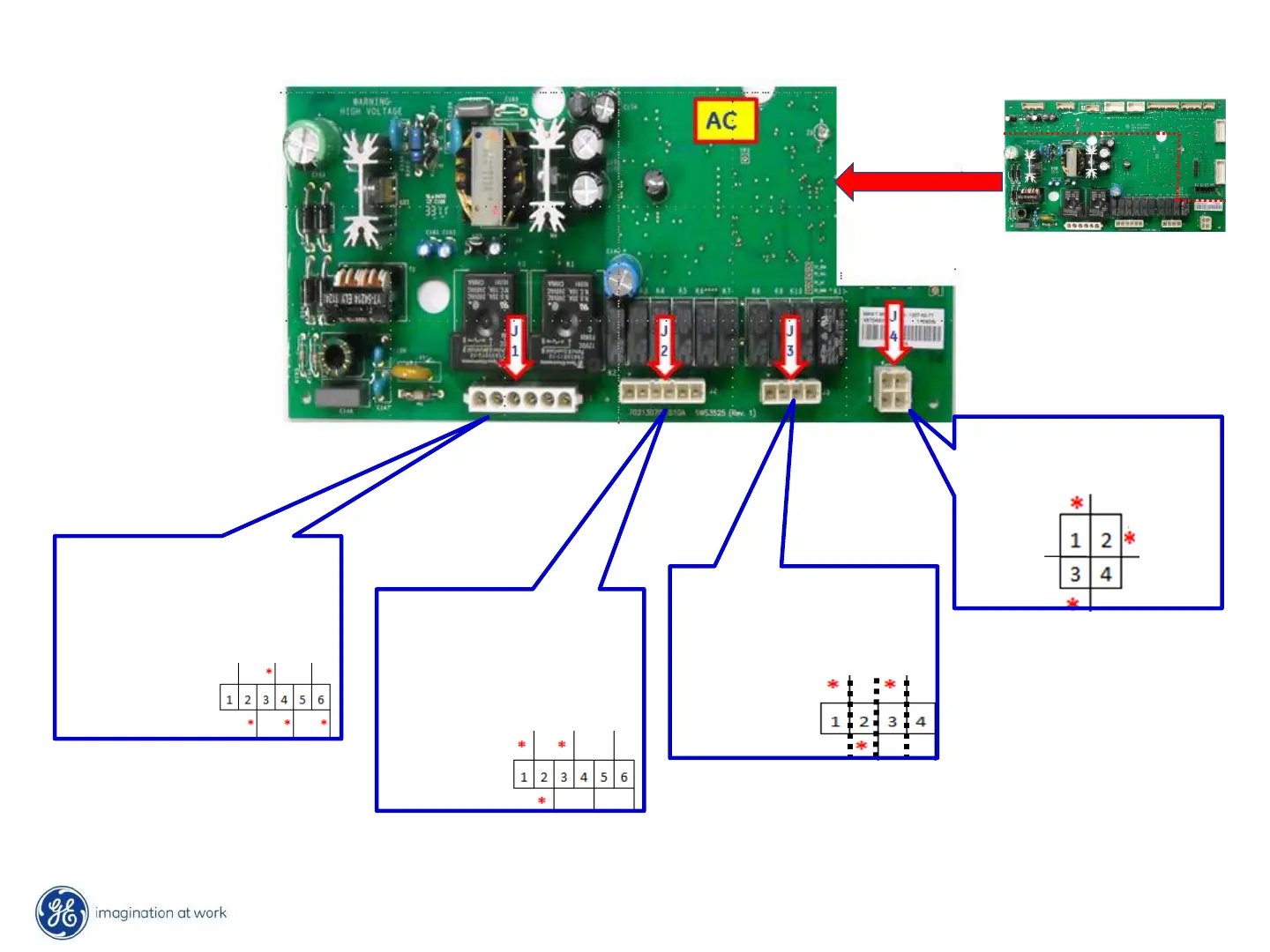

Main Control Board AC
PIN 1 – LEFT FF DOOR SW
PIN 2 – FZ DRAWER SW
PIN 3 – RT FF DOOR SW
PIN 4 - OPEN
J4
PIN 1 – FZ IM RAKE MTR
PIN 2 – FZ IM HTR
PIN 3 – FZ IM WTR VALVE
PIN 4 - OPEN
J3
PIN 1 – ISOLATION VALVE
PIN 2 – FF DEFROST HTR
PIN 3 – ICE PORT HTR
PIN 4 – MUL HTR
PIN 5 – ICE DUCT HTR
PIN 6 – DELI PAN HTR
J2
PIN 1 – HOT WATER INTERLOCK
PIN 2 – AC GROUND
PIN 3 – AC NEUTRAL
PIN 4 – FZ DEFROST HTR
PIN 5 – S SPD COMP
PIN 6 – AC LINE 1
J1
* Indicates a wire
in the connector
at that location
