GE GFE29HSDASS - Door Control Board Connector Pinouts

126
5/4/2012
Door Control Board DC
J
8
J
4
J
3
J
5
DC
AC
J3

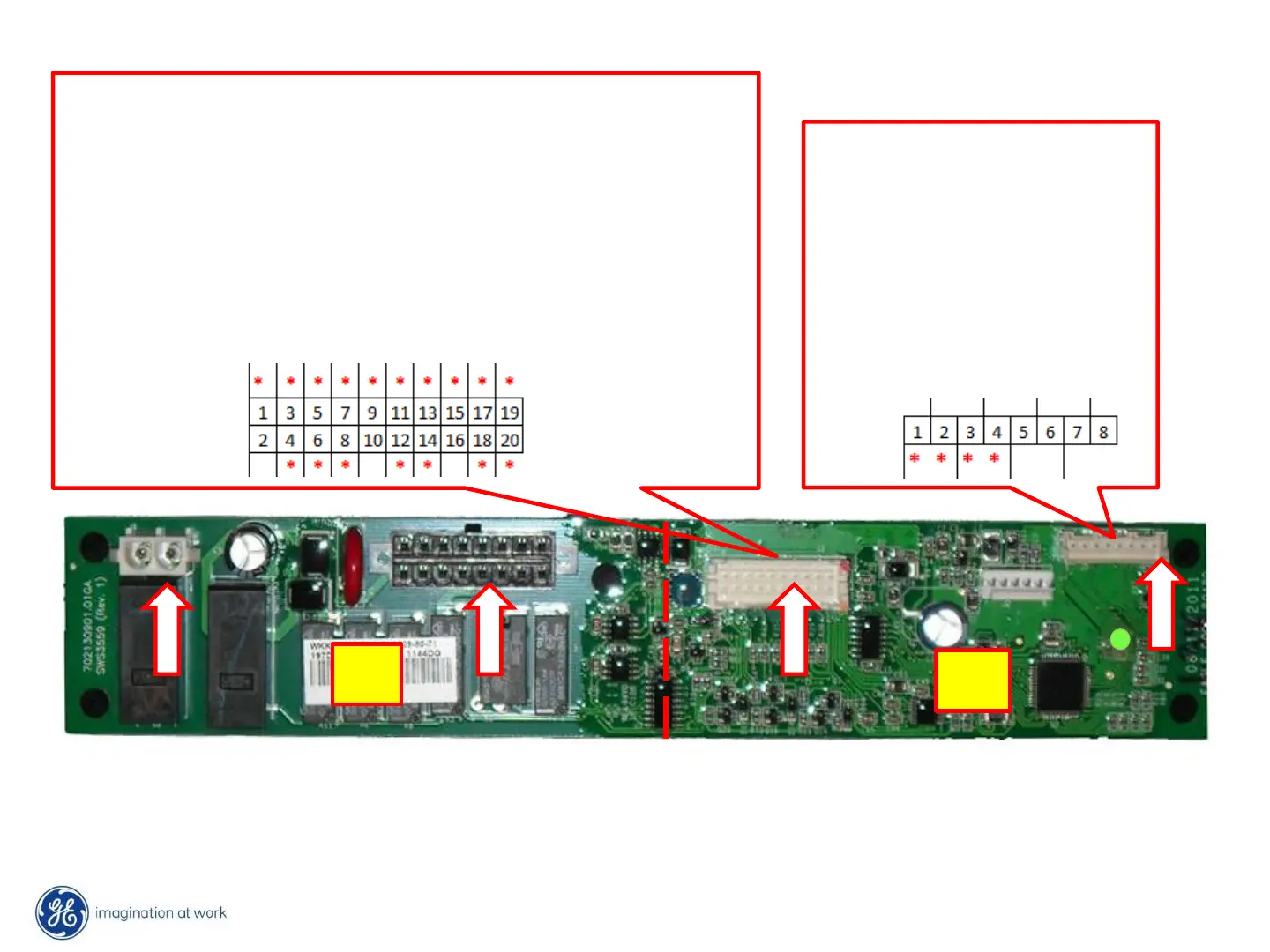

PIN 1 - ICE BOX GASKET HTR
PIN 2 - OPEN
PIN 3 – FZ LED -
PIN 4 – ART. MULLION
PIN 5 - FZ LED +
PIN 6 – IM FEELER AREM SENSOR
PIN 7 - DUCT DOOR MTR +
PIN 8 – FLOW METER
PIN 9 – RECESS HTR
PIN 10 - OPEN
PIN 11 – IM EJECTOR RAKE SENSOR
PIN 12 – PADDLE SWITCH
PIN 13 – FILL TUBE HTR
PIN 14 – IM SENSOR GROUND
PIN 15 – DUCT DOOR MTR -
PIN 16 - OPEN
PIN 17 - 13VDC SUPPLY +
PIN 18 – GEABUS (COMMUNICATION)
PIN 19 – FLOW METER 5VDC
PIN 20 – BOARD GOUND
J3
J5
J5
PIN 1 – IM THERMISTOR
PIN 2 – 5VDC
PIN 3 – ICE BOX THERMISTOR
PIN 4 – 5VDC
PIN 5 – HOT WATER 1
PIN 6 – 5VDC
PIN 7 - HOT WATER 2
PIN 8 – HOT WATER LED
* Indicates a wire in the connector at that location
A blinking green LED means the board’s DC power supply is on and operating.
