GE GFE29HSDASS

127
5/4/2012
J
8
J
4
J
3
J
5
DC
AC

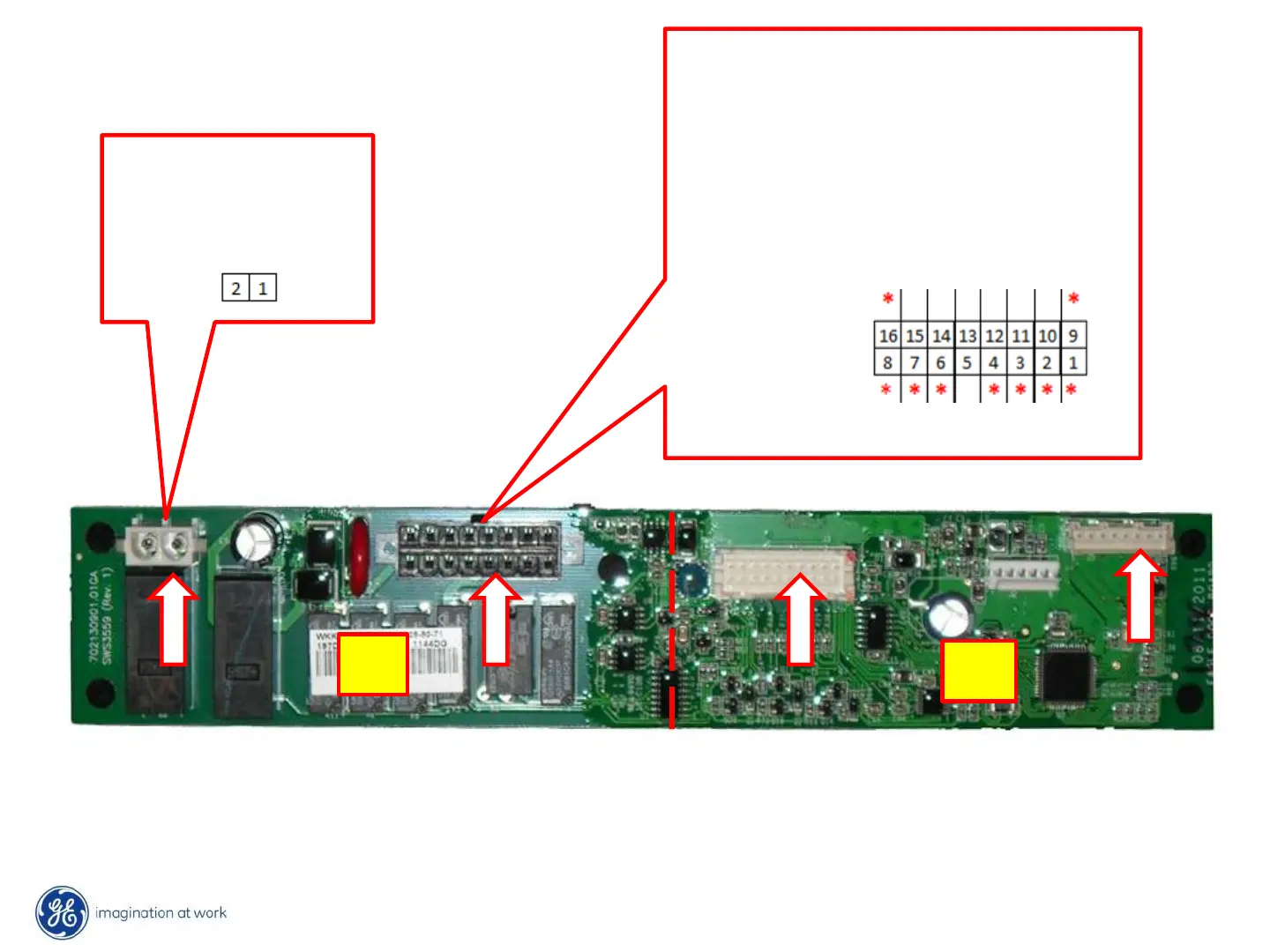

Door Control Board AC
PIN 1 – L1 A/C POWER SUPPLY
PIN 2 – IM RAKE MOTOR
PIN 3 – IM WATER VALVE
PIN 4 – SWITCHED L1 AUGER INPUT
PIN 5 - OPEN
PIN 6 – AUGER MOTOR DC -
PIN 7 – DISPENSER WATER VALVE
PIN 8 – AUGER MOTOR DC+
PIN 9 - IM MOLD HEATER
PIN 10 - OPEN
PIN 11 - OPEN
PIN 12 - OPEN
PIN 13 - OPEN
PIN 14 - OPEN
PIN 15 – OPEN
PIN 16 – A/C NEUTRAL
J4
THIS WILL BE THE HEATER
CONNECTOR FOR HOT
WATER ON CAFÉ MODELS
J8
* Indicates a wire in the
connector at that location
