Water Tank
Flow Meter
Water Valve
¾ The water valve is located in the
lower part of the left fresh food door
and supplies water to both the
icemaker and the water dispenser.
¾ The flow meter operates the same as
previous models with the ‘Precise Fill’
feature.
¾ The water tank capacity is 16 ounces.
¾ All of the quick connects have RED
retainer clips that must be removed
to disconnect tubing.
Note: RED clips must be reinstalled
after reinserting tubing.

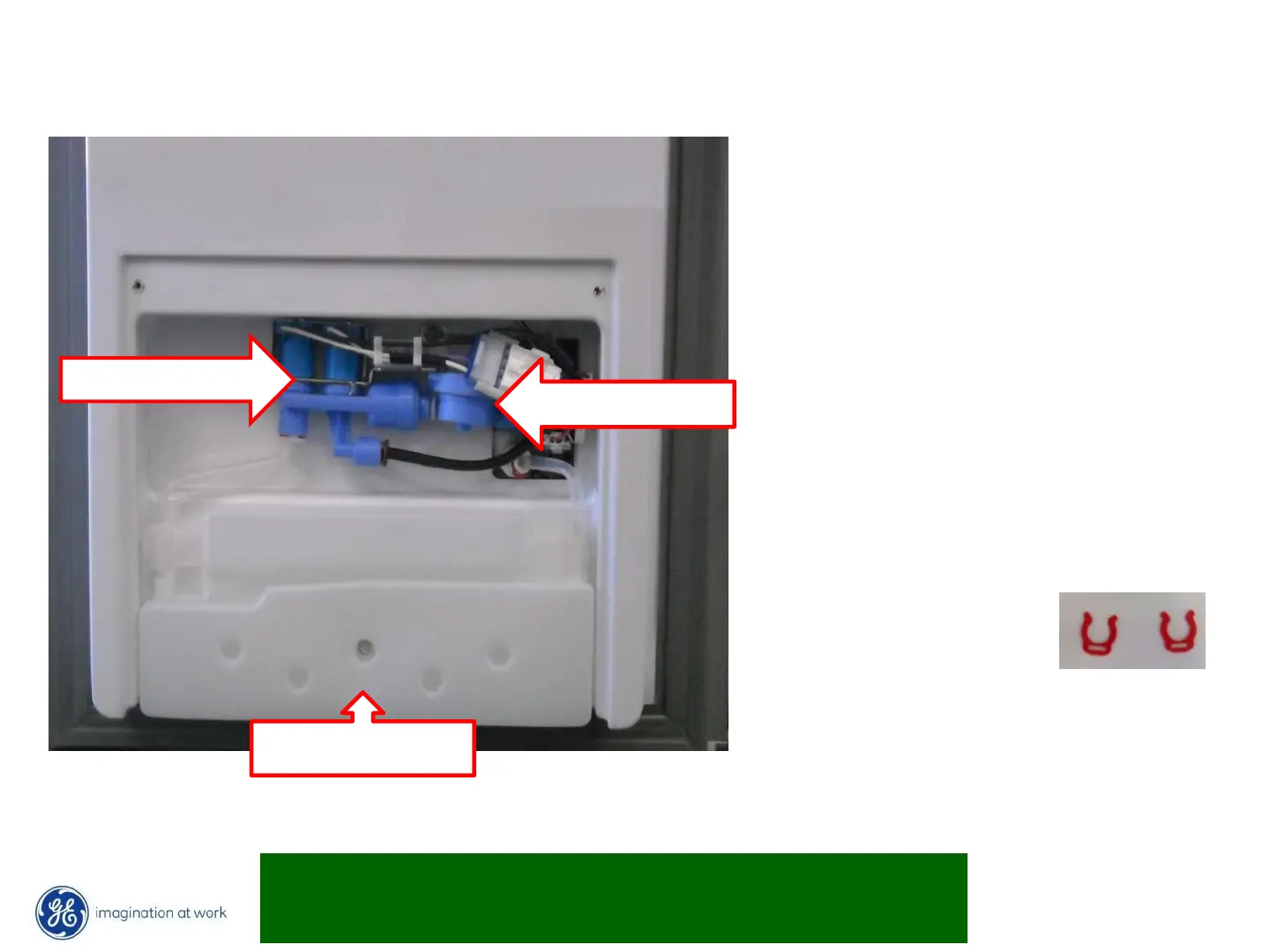

Water Valve and Water Tank Location
When disconnecting hose connections always use great care so that
when the hose releases your hand does not forcefully contact another
component in the refer.
