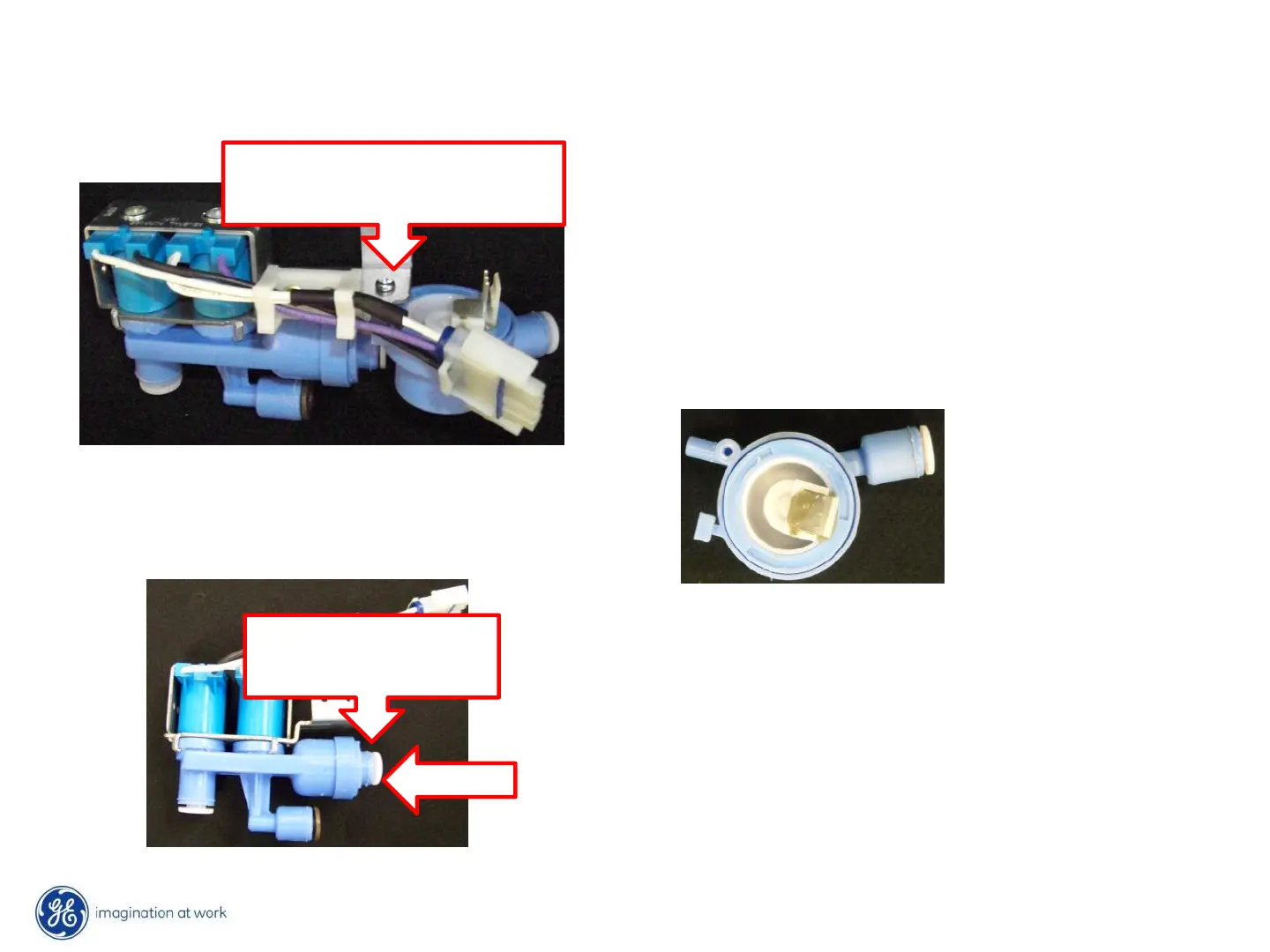

Water Valve and Flow Meter Assembly
¾ The flow meter is attached to the water
valve with a Phillips screw and quick
connector.
¾ To separate the water valve from the flow
meter, remove the Phillips screw and push
in on collar to release the quick connector.
Remove Phillips screw
PUSH
WATER VALVE
FLOW METER
The flow meter will be
available in the future
as a separate part.
Quick Connector
