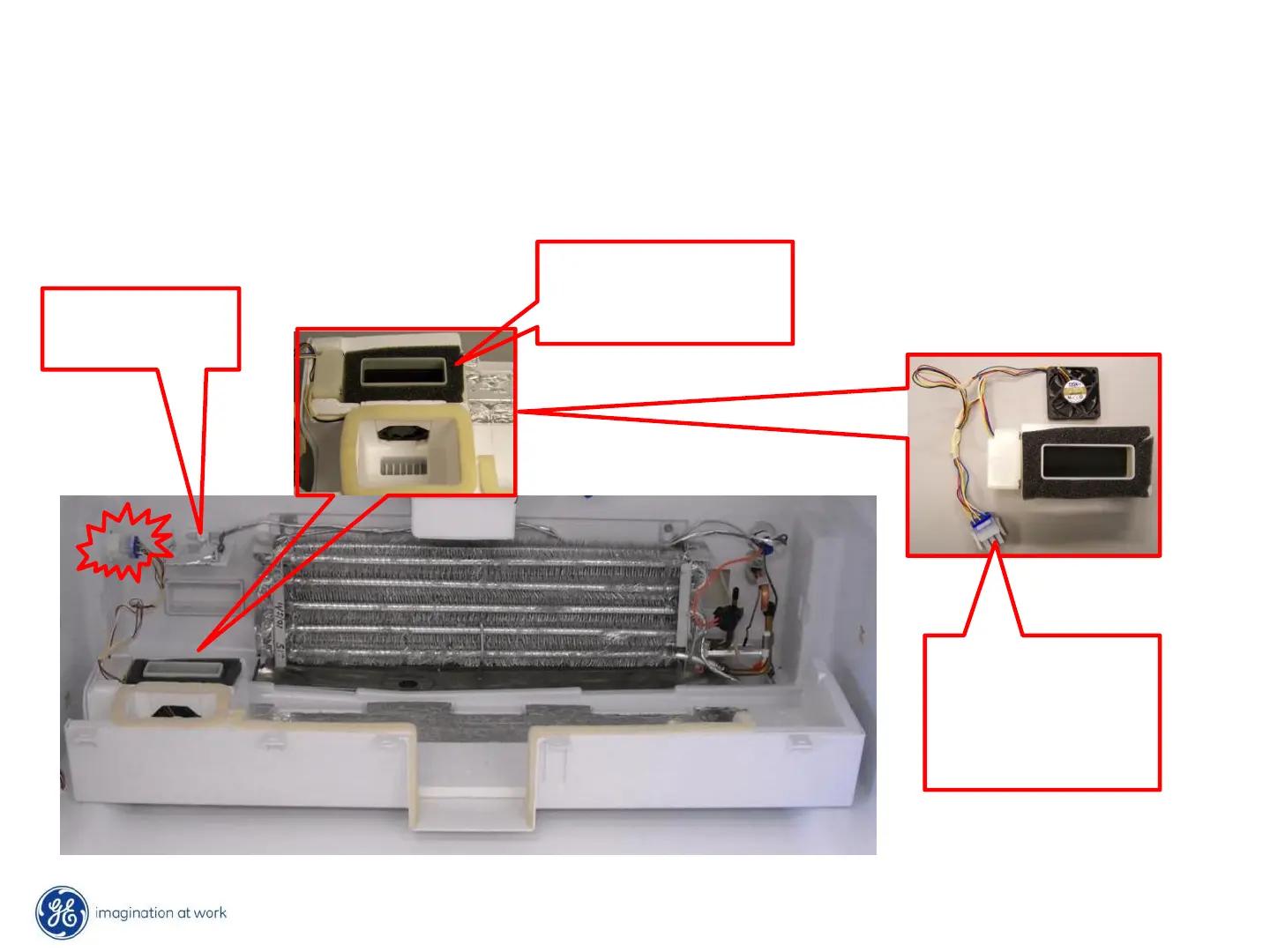

Deli Pan Fan, Heater and Damper
¾ Pull up on the fresh food evaporator cover and lay it forward.
¾ Disconnect the fan and damper assembly connector.
¾ Remove the gasket and Styrofoam retainer, then remove the assembly from the
evaporator cover.
FAN color code:
RED – 12vdc+
BLACK – 12 VDC-
YELLOW – PWM SPEED
BLUE – RPM FEEDBACK
HEATER
DAMPER
Fan speed range is
3000 – 6000 RPM
* Values are approximate and preliminary
