GE GFWS2600 - Page 33

33

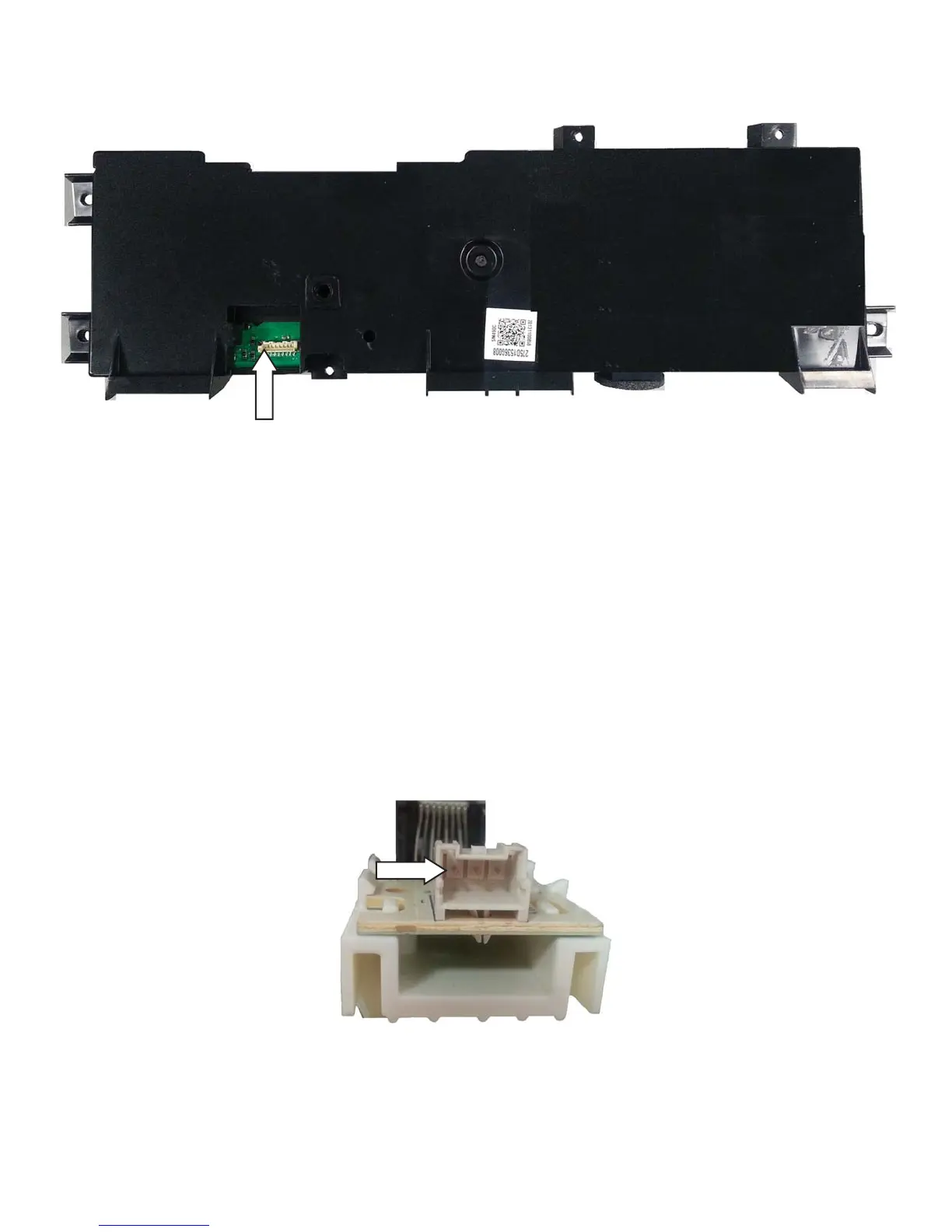

UI Board Pin Out
J201-1
UI J201 pin 1 - +12 VDC from IMC board
UI J201 pin 2 - Comm Line
UI J201 pin 3 - +7.5 VDC from IMC board
UI J201 pin 4 - Not Used
UI J201 pin 5 - DC GND from IMC board
UI J201 pin 6 - DC GND to RJ45 board
UI J201 pin 7 - Comm Line
UI J201 pin 8 - +12 VDC to RJ45 board
RJ45 Board
J203-1
