Description and operation
Description of the interrupting chambers
GE Information L12- 109EN/03
3/4
03- 2017
Upper housing
Description
The upper housing encloses the movement transfer mechanism (15) from the
operating tie- rod (8) to the moving contact (4) of the two chambers.

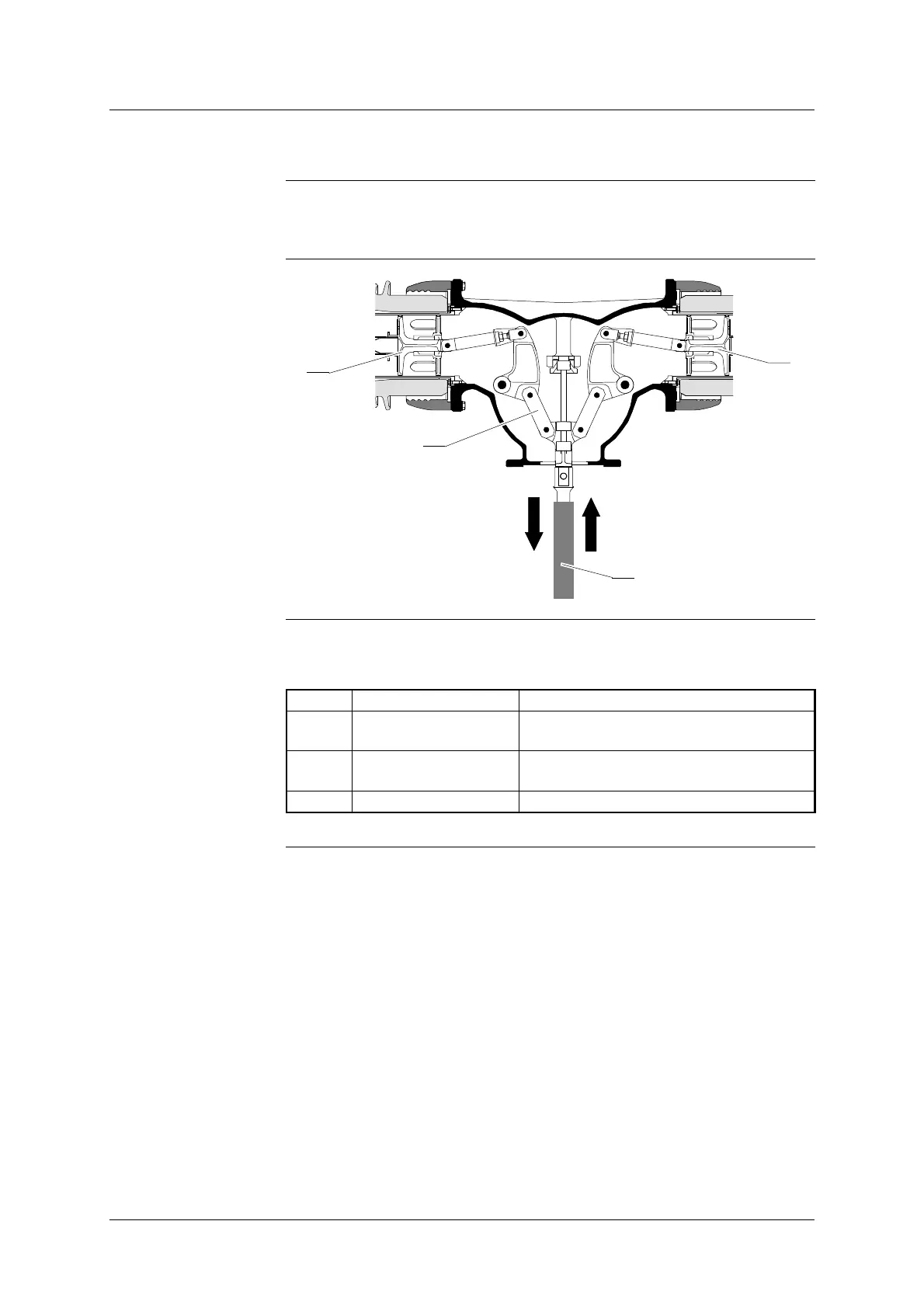

Diagram
15
8
4
4
Parts table
The table below gives the housing internal and peripheral components :
Mark Component Function
4 Moving contact It is worked by the operating mechanism
and contains the blasting device.
8 Operating tie- rod T ransmits the movement to the moving
contact of the two chambers.
15 Mechanism T ransfer of the movement.
