Description and operation
Pole operation
(Interrupting principle)
GE Information L13- 011EN/03
3/8
03- 2017

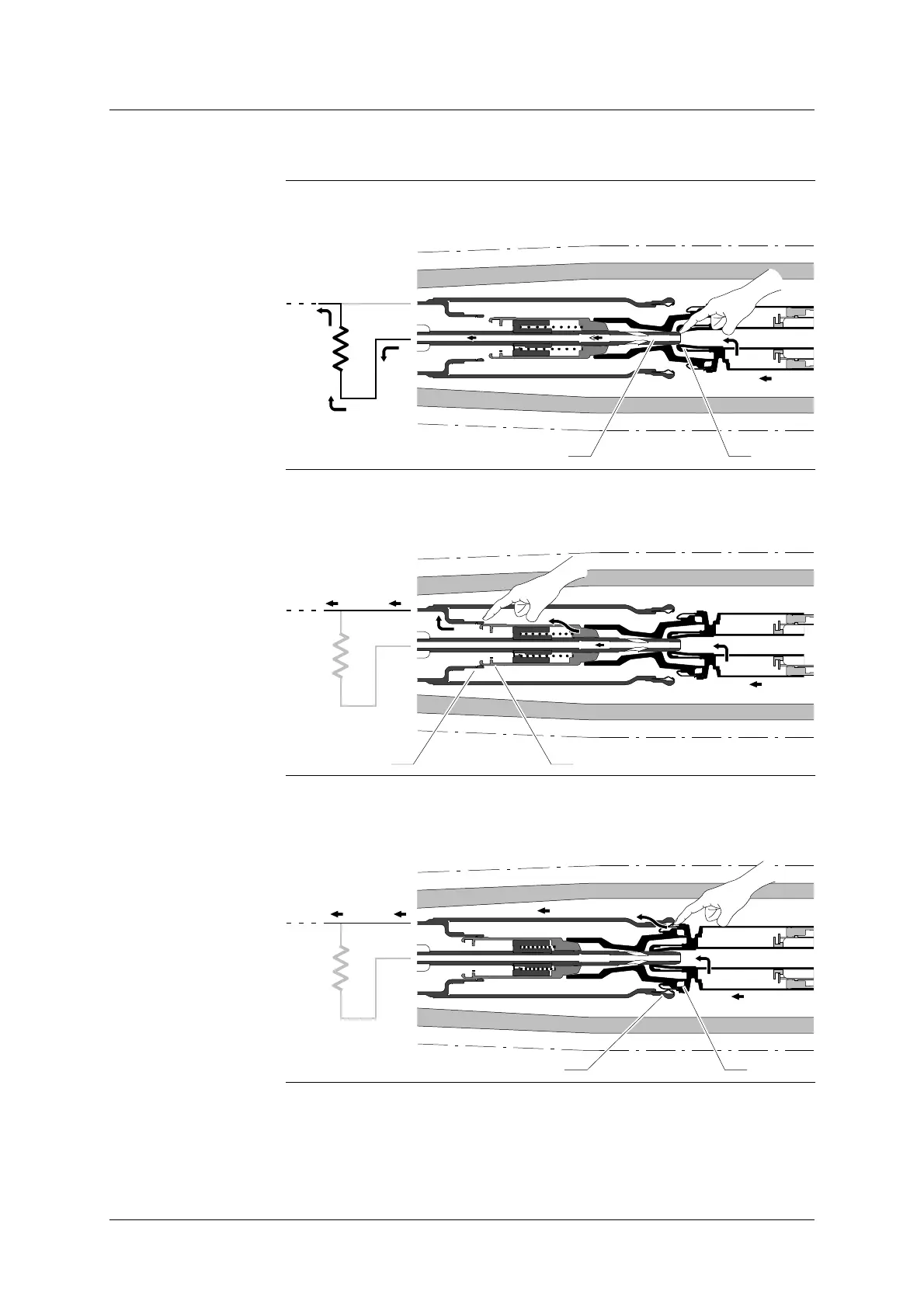

Closing, continued
Start of insertion of
resistor
The arcing fingers (12) of the moving contact comes in contact with the fixed
contact rod (13), the resistor (R) is inserted.
1213
R
End of insertion of
resistor
As the closing stroke continues, the moving part of the resistor insertion
device (5) come into contact with the fixed contact (2) and by- pass the previ-
ous electric circuit.
52
R
Closingofmaincon-
tacts
As the closing stroke continues, the moving contact (6) come into contact with
the main fingers (3) of the fixed contact. The C.B. is then in “CLOSED” posi-
tion.
63
R
Continued on next page.
