Description and operation
Pole operation
(Interrupting principle)
GE Information L13- 011EN/03
4/8
03- 2017
Closing, continued

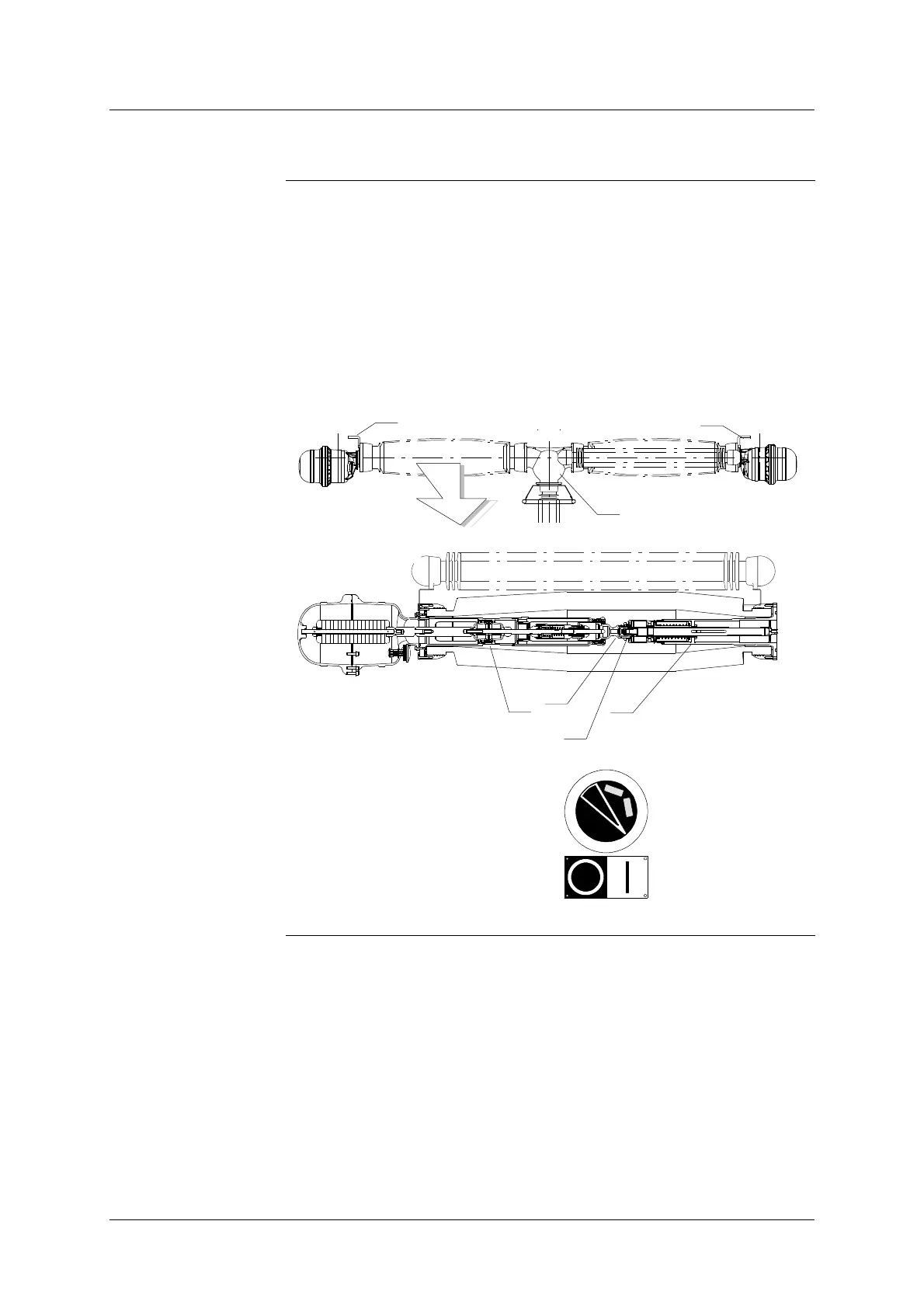

“CLOSED” position
In “CLOSED” position the current passes through :
- the terminal (1),
- the fixed contact support (2),
- the main contacts (3),
- the moving contact (6),
- the moving contact support (7),
- the common housing (8),
and follows the opposite chain on the other chamber and the terminal (1).
1
8
1
2
7
3
6
Circuit- breaker
Closed
