Installation
Chamber - Column Coup ling
GE Information L31- 7143EN/02
9/16
03- 2017
Final coupling, continued
Removing the cham-
ber transport cover

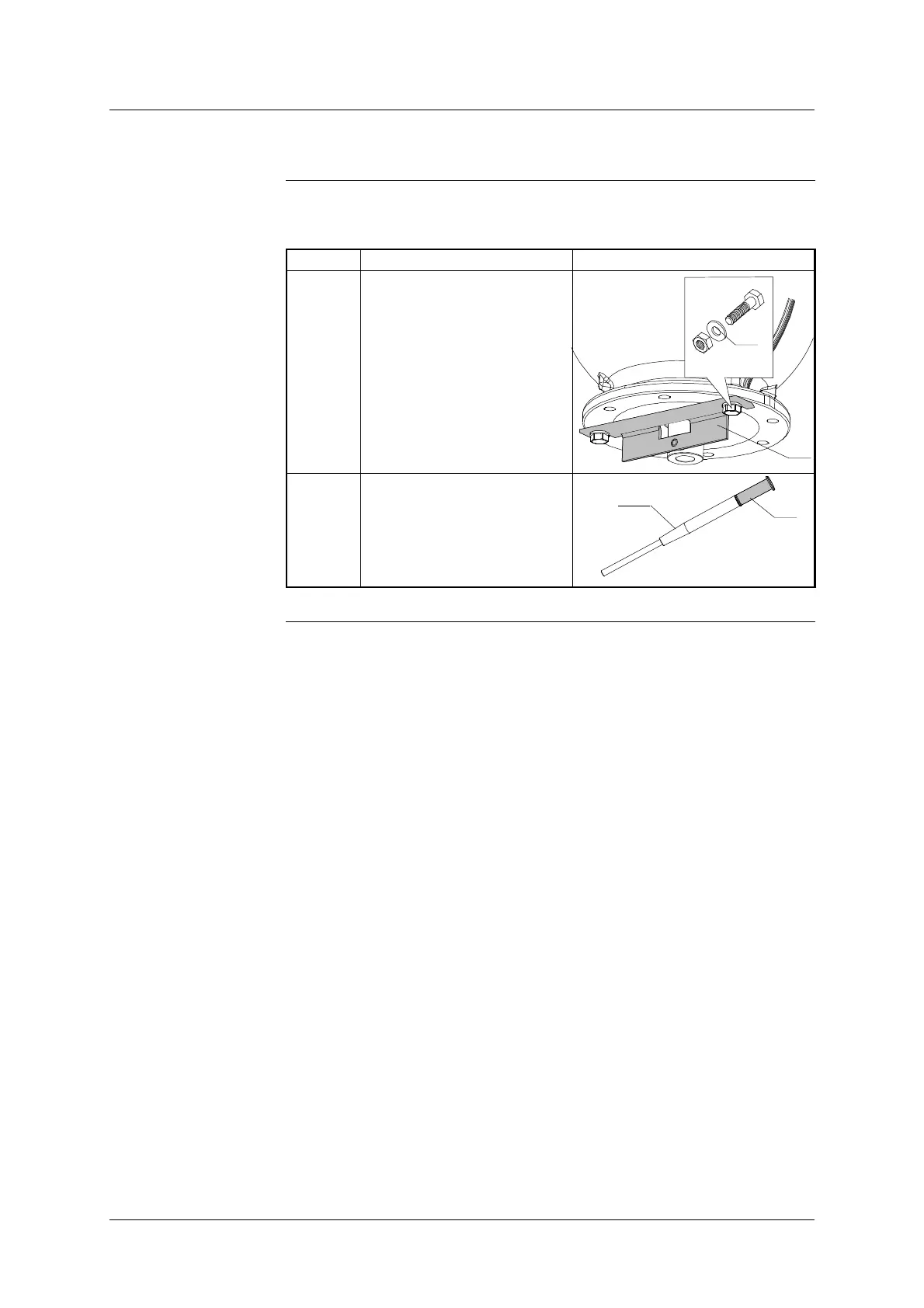

The table below shows the steps for removing the chamber transport cover:
Step Action Illustration
6 Fit the trolley stop (34) and fix
in place using the bolts (40)
recovered from the transport
cover, hand tightening them.
x2
HM16-55
34
40
7 Prepare the fitting tool (35)
by screwing the coupling pin
(24) onto its end, hand tight-
ening.
35
24
