Installation
Chamber - Column Coup ling
GE Information L31- 7143EN/02
10/16
03- 2017
Final coupling, continued

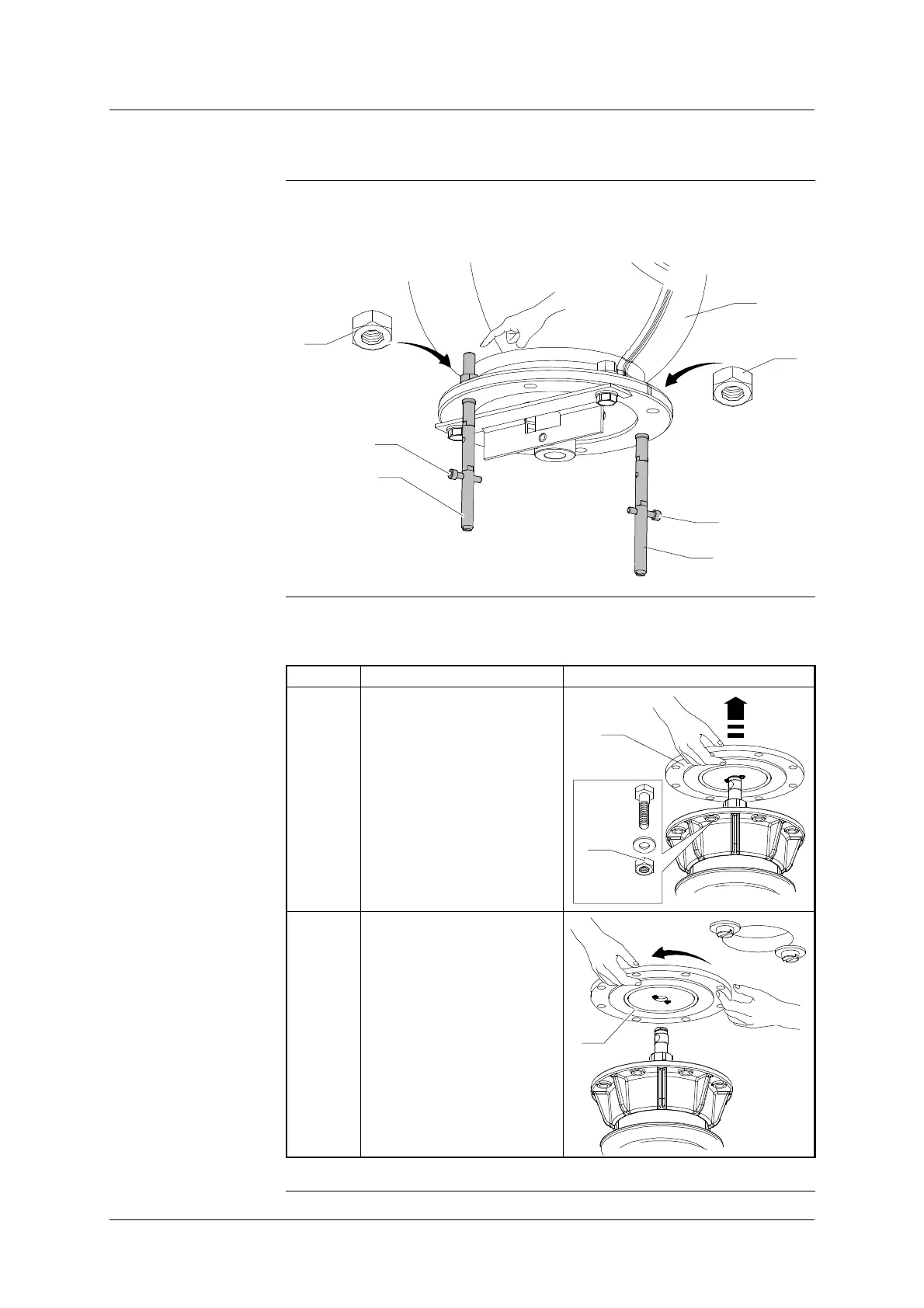

Fitting the
centring pins
Fit the centring pins (30) & (31) hard against the spherical casing (2), lightly
tighten the nuts (41).
Fit the screws (42) to the centring pins (30) and (31).
41
41
2
30
42
31
42
Removing the column
cover
The table below shows the steps for removing the column cover:
Step Action Illustration
1 Remove the fittings (43) and
open the cover (11).
11
x8
HM16-55
43
2 Turn the cover (11) through
90 to remove it.
11
Continued on next page.
