Installation
Chamber - Column Coup ling
GE Information L31- 7142EN/02
12/18
03- 2017
Final coupling, continued
Fitting the
centring pins

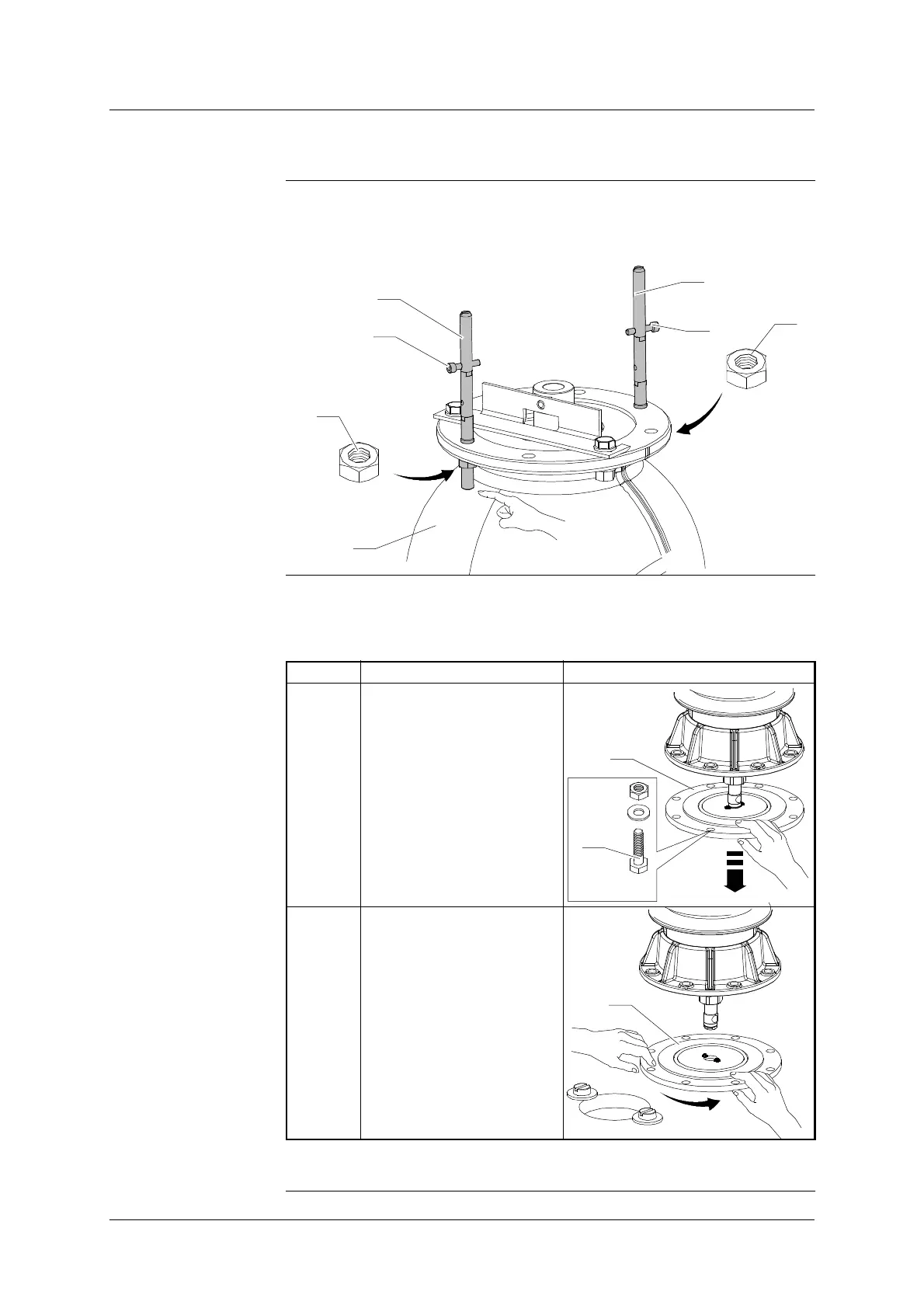

Fit the centring pins (30) & (31) hard against the spherical casing (2), lightly
tighten the nuts (41).
Fit the screws (42) to the centring pins (30) and (31).
41
41
2
42
31
42
30
Removing the
column cover
The table below shows the steps for removing the column cover:
Step Action Illustration
1 Remove the fittings (43) and
open the cover (11).
11
x8
HM16-55
43
2 Turn the cover (11) through
90 to remove it.
11
Continued on next page.
To Next Page
