Installation
Chamber - Column Coup ling
GE Information L31- 7142EN/02
13/18
03- 2017
Final coupling, continued
Fitting the seal

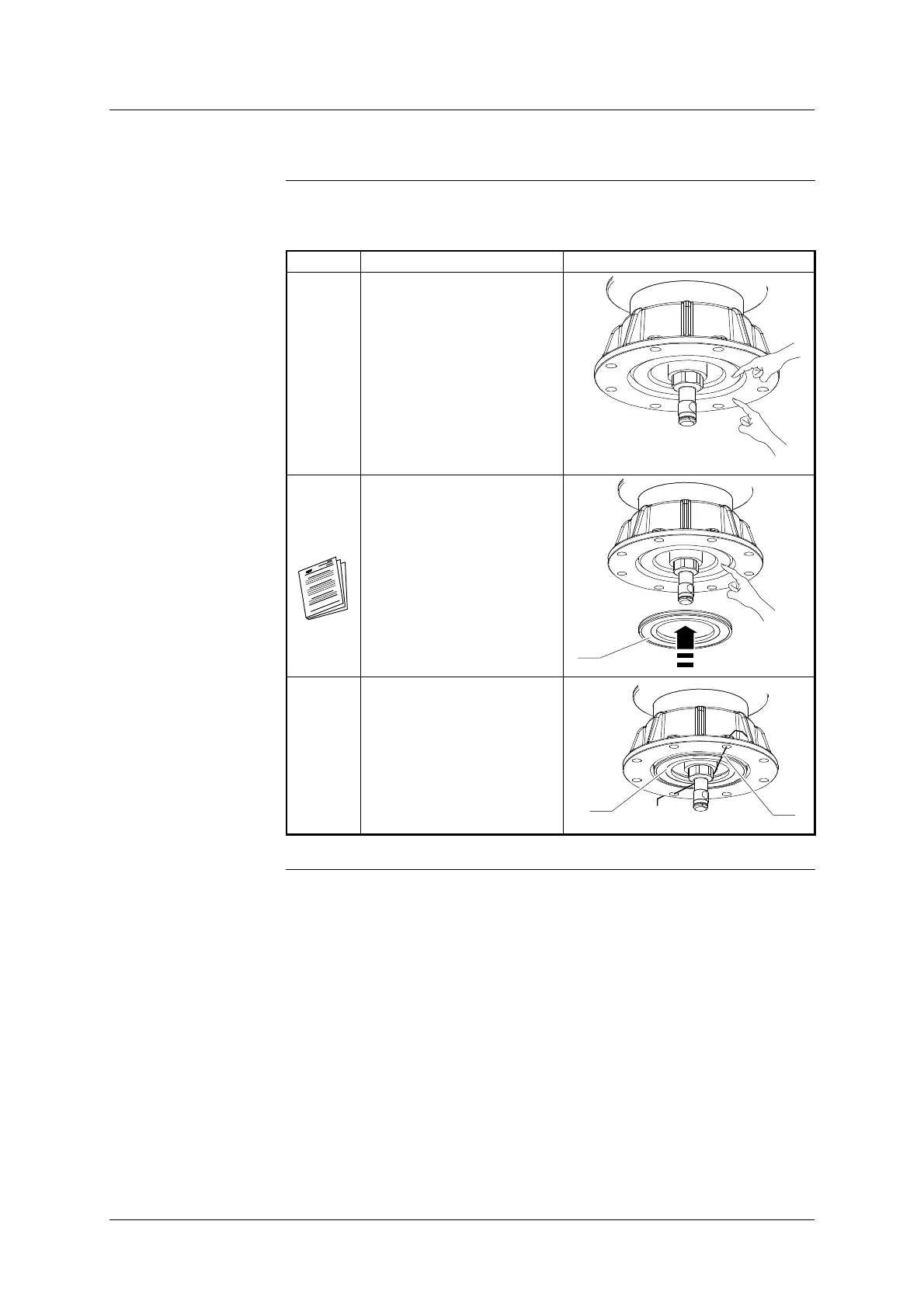

The table below shows the steps for fitting the seal:
Step Action Illustration
1 Clean the contact surfaces
”A” and ”B” with ISOPRO-
PANOL.
Only coat surface ”B” with
MOLYKOTE M111 lubricant.
A
B
2 Fit a new seal (20) and place
it on surface ”A”, referring to
”Preparing and fi tting
static seals”.
See module ’General
assembly procedures’.
20
A
3 Temporarily fit a rigid cable
(36) to counter the effects of
the seal (20) coming apart
during the coupling process
20
36
