Installation
Chamber - Column Coup ling
GE Information L31- 7142EN/02
16/18
03- 2017
Final coupling, continued
Connection
chambers/column

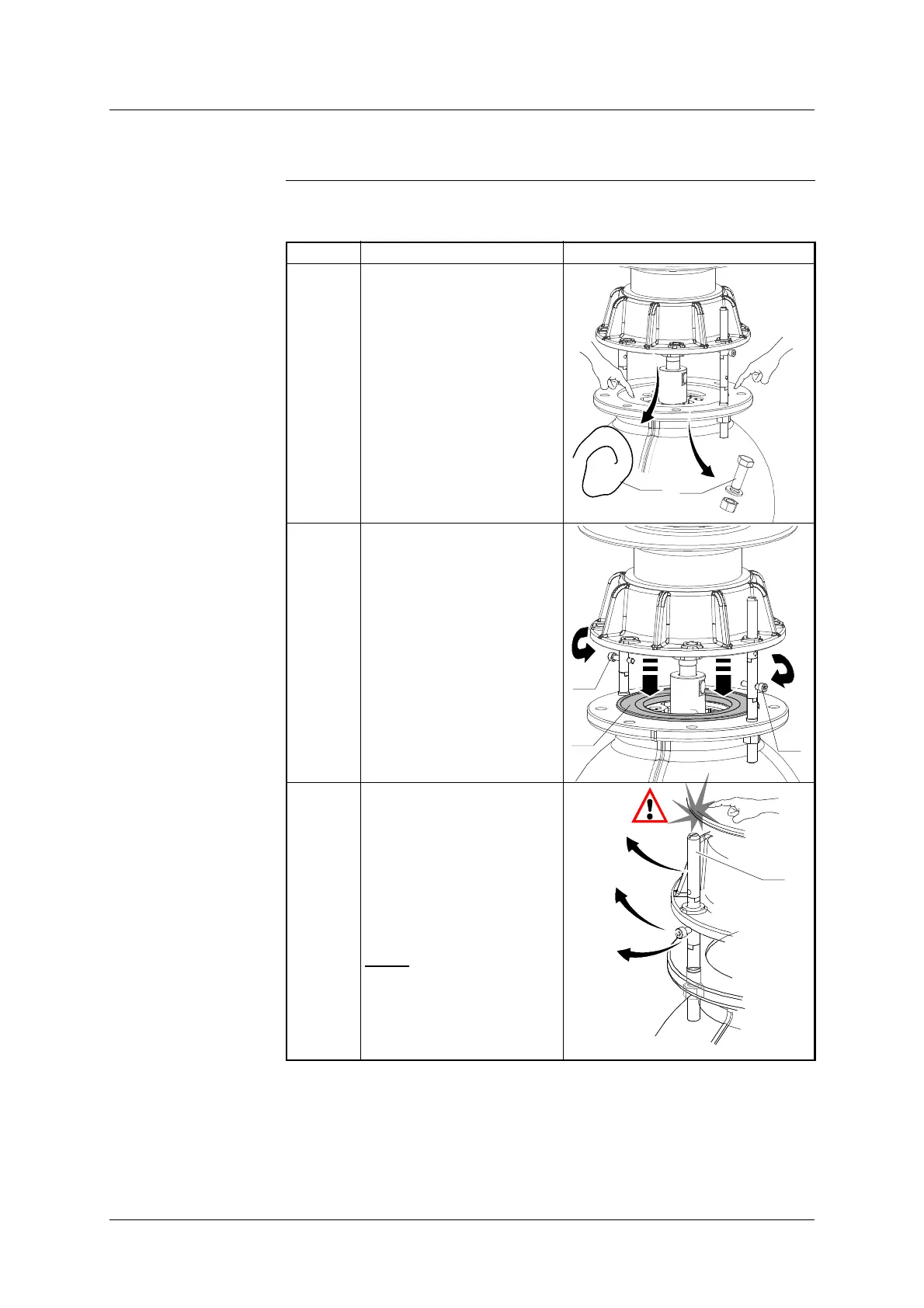

The table below shows the steps for fitting the chamber- column coupling pin:
Step Action Illustration
1 Clean the contact surfaces
”A” and ”B” with ISOPRO-
PANOL.
Only coat surface ”B” with
MOLYKOTE M111 lubricant.
Remove the rigid cable (36).
Remove the trolley stop fix-
ing screws (40).
B
A
36
40
2 Lower the seal (20) onto the
chamber casing.
Lower the screws (42) on
the centring pins.
42
42
20
3 Continue to slowly lower the
column, removing the first
two sections of centring pin
(30 & 31) when they are no
longer of any use as a guide,
in the following order:
- First section (C)
- Screw (42)
- Second section (B)
NOTE
: The aim of this
operation is to prevent
the centring pins com-
ing into contact with the
porcelain fins on the
column.
30
31
(C)
(42)
(B)
Continued on next page.
