Installation
Chamber - Column Coup ling
GE Information L31- 7142EN/02
15/18
03- 2017
Final coupling, continued
Fitting the
coupling pin

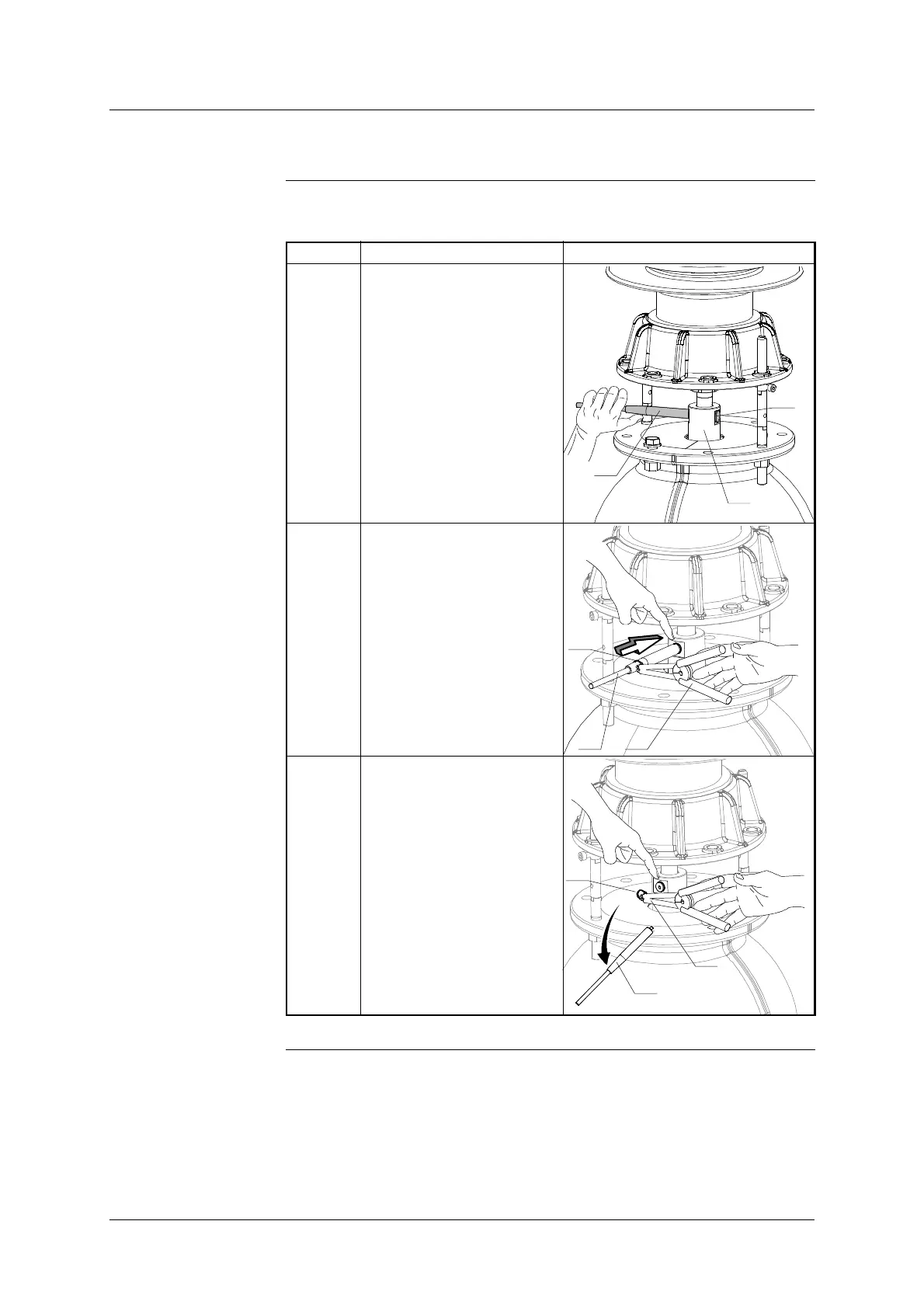

The table below shows the steps for fitting the chamber- column coupling pin:
Step Action Illustration
5 Fit the coupling pin (24) by
manually pulling on the fit-
ting tool (34) until it stops on
the cylinder (8).
35
24
8
6 Fit the circlips (25), sliding
them along the fitting tool
(35) using circlips pliers (37).
See the second method (7).
25
35 37
7 Remove the fitting tool (35)
from the coupling pin,
loosening it by hand.
Second method:
Fit circlips (25) using circlip
pliers (37).
25
37
35
Continued on next page.
