GE GSD1807 - Step 13 Connect Drain Line; Drain Line Installation

Installation Instructions
10
• If a longer drain hose is required, add up to 42" of length for a
total of 10 ft. to the factory installed hose. Use 5/8" or 7/8"
inside diameter hose and a coupler to connect the two hose
ends. Secure the connection with hose clamps.

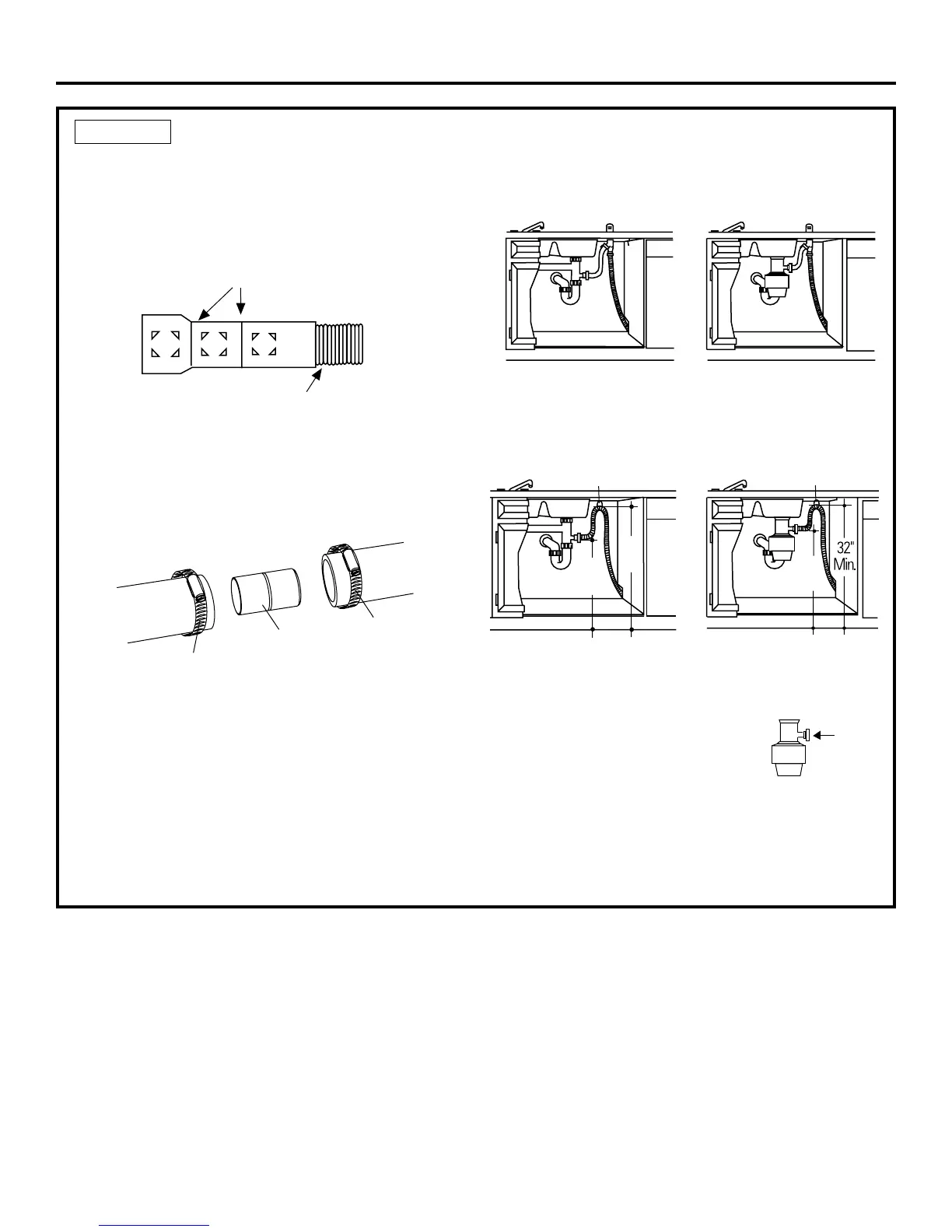

Figure U
STEP 13 CONNECT DRAIN LINE
FOLLOW ALL LOCAL CODES AND ORDINANCES.
The drain hose molded end will fit 5/8", 3/4" or 1"
diameter connections on the air gap, waste tee or
disposer. Cut on the marked line as required for your
installation.
DRAIN LINE INSTALLATION
• Connect drain line to air gap, waste tee or disposer using either
previously determined method.
Waste Tee Installation
Method 1 – Air gap with waste tee or disposer
Disposer Installation
Method 2 – High drain loop with waste tee or disposer
Disposer Installation
Figure W
Figure X
• Secure the drain hose to the air gap, waste tee or disposer with
clamps.
NOTE: TOTAL DRAIN HOSE LENGTH MUST NOT EXCEED
10 FEET FOR PROPER DRAIN OPERATION.
IMPORTANT –
When connecting drain line to disposer, check
to be sure that drain plug has been removed.
DISHWASHER WILL NOT DRAIN IF PLUG IS LEFT IN PLACE.
TIP: Avoid unnecessary service call charges. Always
be sure disposer drain plug has been removed before
attaching dishwasher drain hose to the disposer.
Figure V
Waste Tee Installation
Cutting Lines
1"
3/4"
5/8"
IMPORTANT: Do not cut corrugated
portion of hose
Fasten to underside
of countertop
32"
Min.
18"
Min.
Fasten to underside
of countertop
18"
Min.
Hose Clamp
Coupler
Hose Clamp
Remove
Hopper
Plug
