Installation Preparation
3

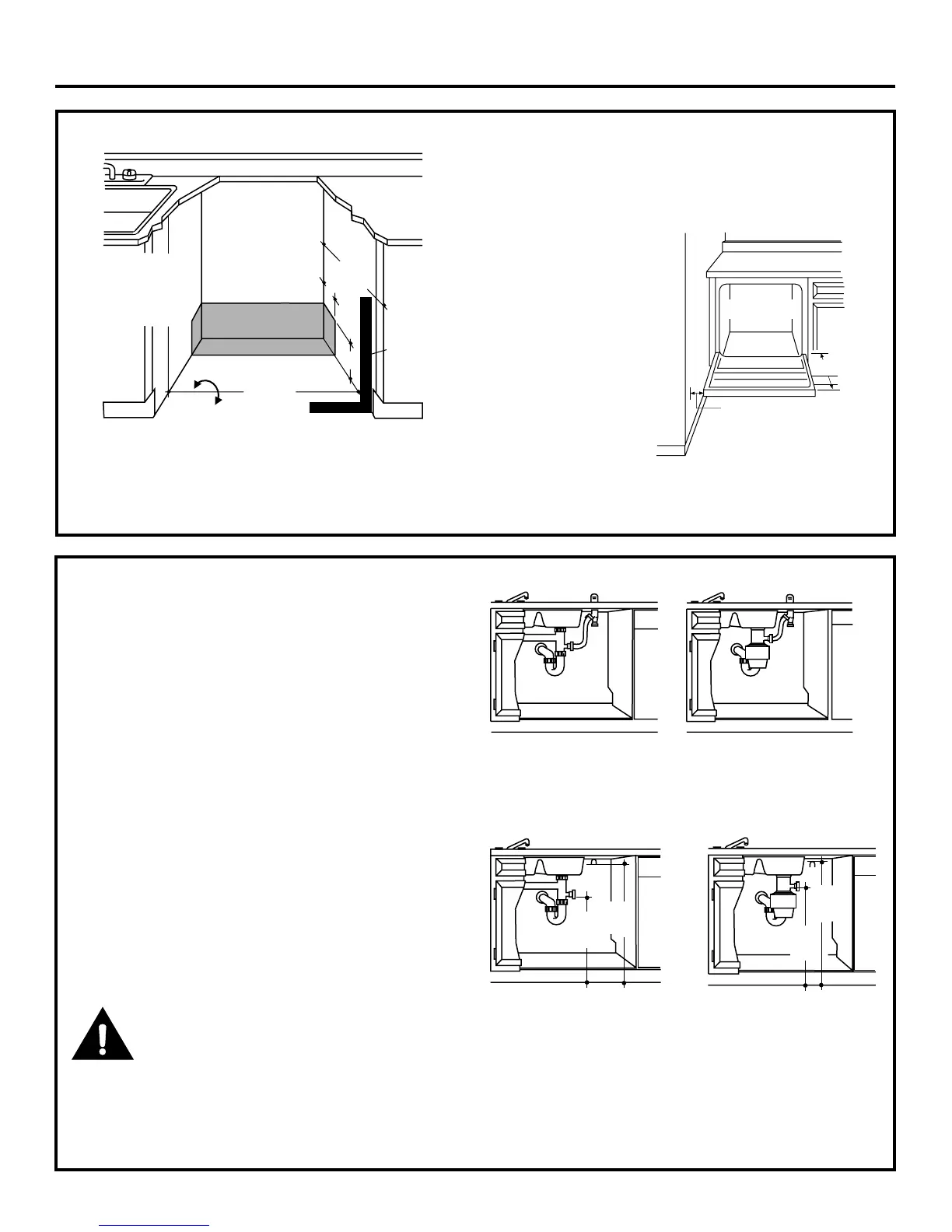

PREPARE DISHWASHER ENCLOSURE
• The rough cabinet opening must be at least 24" deep and
17-5/8" to 18" wide (GSD1807K) or 23-5/8" to 24" wide
(GSD3800K). The opening should be 34" to 35" max. height.
CLEARANCES: When
installed into a corner,
allow 2" min. clearance
between dishwasher and
adjacent cabinet, wall or
other appliances. Allow
25-5/8" min. clearance
from the front of the
dishwasher for door
opening. Figure B
DRAIN REQUIREMENTS
• Follow local codes and ordinances.
• Do not exceed 10 feet distance to drain.
• Do not connect drain lines from other devices
to the dishwasher drain hose.
• Dishwasher must be connected to waste line with an
air gap (not supplied) or 32" minimum high drain loop, depending
on local codes and ordinances to prevent back flow into the
dishwasher.
• Air gap must be used if waste tee or disposer connection is less
than 18" above the floor to prevent siphoning.
DRAIN PREPARATION
The type of drain installation depends on answers to
the following questions:
■ Do local codes or ordinances require an air gap?
■ Will waste tee or disposer connection be less than
18" above the floor?
■ Will installation have a drain loop less than 32"
above floor?
If the answer to ANY of the 3 questions above is YES,
Method 1 MUST be used. Otherwise either Method 1
or Method 2 may be used. Figure C or Figure D.
CAUTION:
An air gap MUST BE USED if the drain hose is connected to waste
tee or disposer lower than 18" above the floor.
Failure to provide the proper drain connection height with air gap or
32" minimum, high drain loop will result in improper draining of the
dishwasher.
Figure A
Figure B
Figure C
Figure D
Note: ADA installation, (32-1/2") beneath 34" high counter-
tops may be accomplished by adjusting the toekick and
leveling legs.
Install waste tee or disposer and air gap according to
manufacturer’s instructions.
CABINET PREPARATION
• Drill a 1-1/2" dia. hole in the cabinet wall within the
shaded areas shown in Figure A for the drain hose connection.
The hole should be smooth with no sharp edges.
Method 1 – Air Gap with Waste Tee or Disposer
Method 2 – High Drain with Waste Tee or Disposer
Provide a method to attach drain hose to underside of
countertop.
Cabinets
Square
and
Plumb
Floor MUST
be Even with
Room Floor.
Plumbing and Electric Service
Must Enter Shaded Area
34" to 35"
Underside of
Countertop
to Floor
24"
Min.
17-5/8" or 23-5/8" Min.
18" or 24" Max.
4"
6"
Clearance for Door
Opening 2" Minimum
Countertop
Dishwasher
25-5/8"
18"
Min.
32"
Min.
32"
Min.
18"
Min.
• The dishwasher must be installed so that drain hose is no more
than 10 feet in length for proper drainage.
• The dishwasher must be fully enclosed on the top, sides and
back, and must not support any part of the enclosure.
