GE GSD1807 - Step 6 Position Water Line and House Wiring; Step 7 Insert Drain Hose through Cabinet; Step 8 Slide Dishwasher Partially into Cabinet

Power Cord
(If Used)
Insulation
Blanket
Water
Line
House
Wiring
Drain
Hose
Maximum
Drain Hose
Length 10'
Installation Instructions
7
STEP 8 SLIDE DISHWASHER
PARTIALLY INTO CABINET
DO NOT PUSH AGAINST FRONT PANEL WITH KNEES.
DAMAGE WILL OCCUR.
• Slide dishwasher into the opening a few inches at a time.
• As you proceed, pull the drain hose through the
opening under the sink. Stop pushing when the dishwasher is a
few inches forward of adjacent cabinetry.
• Make sure drain hose is not kinked under the dishwasher and
there is no interference with the water
line and wiring or any other component.

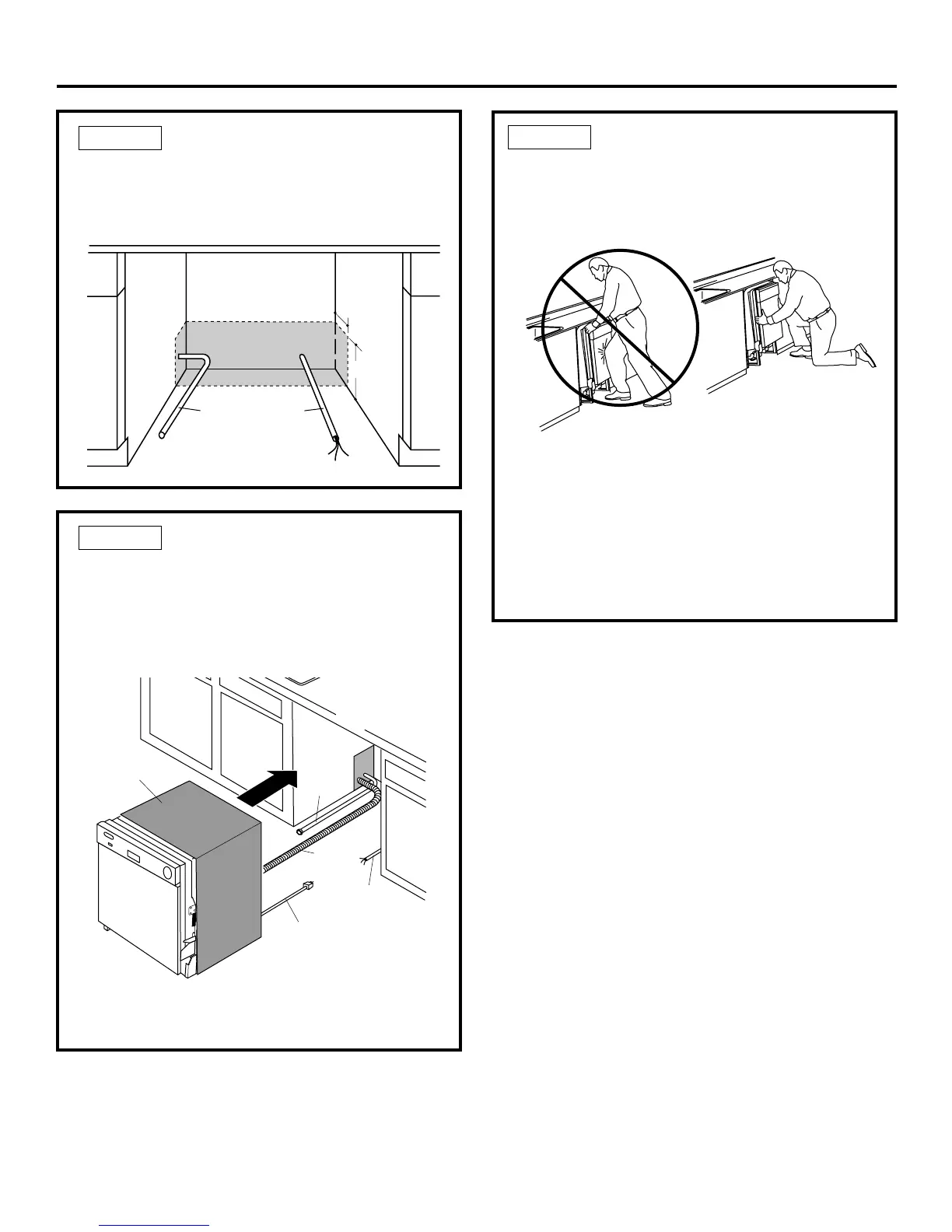

Figure O
TIP: Position water line and house wiring on the floor
to avoid interference with base of dishwasher.
Figure N
STEP 7 INSERT DRAIN HOSE
THROUGH CABINET
• Upright the dishwasher and position in front of the opening.
Insert drain hose into cabinet wall hole.
If a power cord is used, guide the end through a separate
hole.
STEP 6 POSITION WATER LINE
AND HOUSE WIRING
• Position water supply line and house wiring on the floor of
the opening to avoid interference with base of dishwasher
and components under dishwasher.
Figure M
Water
Line
House
Wiring
4"
6"
Do Not Push Against
Front Door Panel With
Knee. Damage to The
Door Panel Will Occur.
