GE GSD1807 User Manual

White
Groun
d
Black
Check That White, Black and
Green Dishwasher Wires Are Threaded
Thru Hole in Back
Remove
Junction Box
Cover
wires thru strain
relief
and tighten
Use UL Listed
Wire Nuts
A
C
B
D
Insert power cord

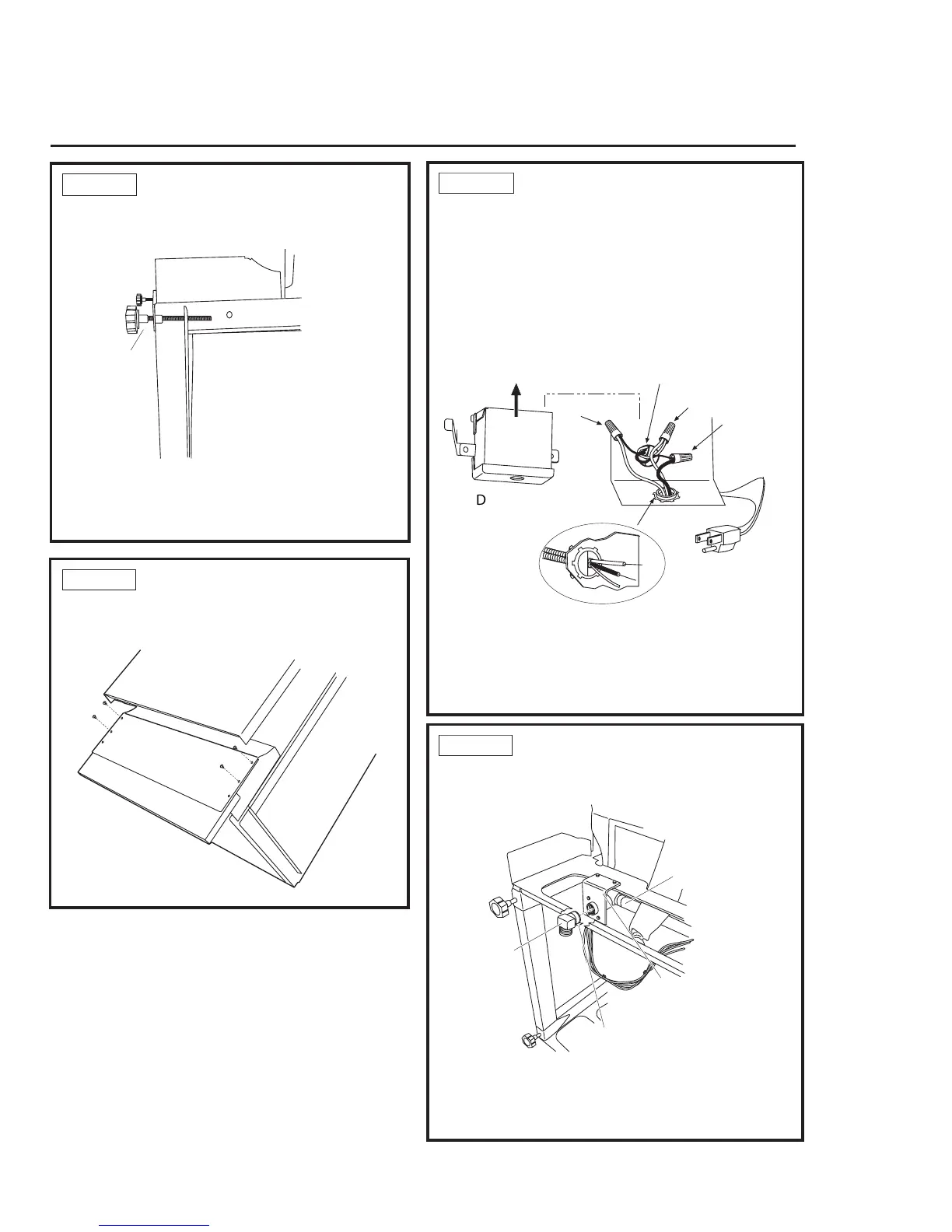

Installation Instructions
6
• Do not over tighten 90° elbow, water valve bracket
could bend or water valve fitting could break.
• Position the end of the elbow to face the rear of the
dishwasher.
STEP 5 INSTALL 90° ELBOW
• Wrap 90° elbow with thread seal tape.
• Install a 90° elbow onto the water valve.
Figure L
Figure J
STEP 3 REMOVE TOEKICK
• Remove the 4 toekick screws. Lift off the 2 piece
toekick.
• Measure installation height and dishwasher height.
Extend
leveling
legs out from the dishwasher base,
1/4"
less than
installation height.
Figure H
STEP 2 ADJUST LEVELING LEGS
• Move the dishwasher close to the installation
location
and
lay it on its back.
STEP 4 INSTALL POWER CORD
Skip this step if dishwasher will be direct wired. Use
power cord kit WX09X70910 available for purchase from
an authorized GE Appliances dealer. The power cord
and connections must
comply with the National Electrical
Code, Section 422 and/or local codes and ordinances.
• Recommended power cord length is 54" min. and
Figure K
Adjust to
Installation
Height
• Connect incoming
power cord white (or ribbed)
to dishwasher white, black
(or smooth) to black and ground to dishwasher green
wire. Use UL listed wire nuts of appropriate size.
• Replace junction box cover. Be sure wires are not
pinched under the cover.
Remove
4 Toekick
Screws
90
Elbow
Fill
Hose
Thread
Seal Tape
Water
Valve
Bracket
64” max.
Remove rubber ring,
