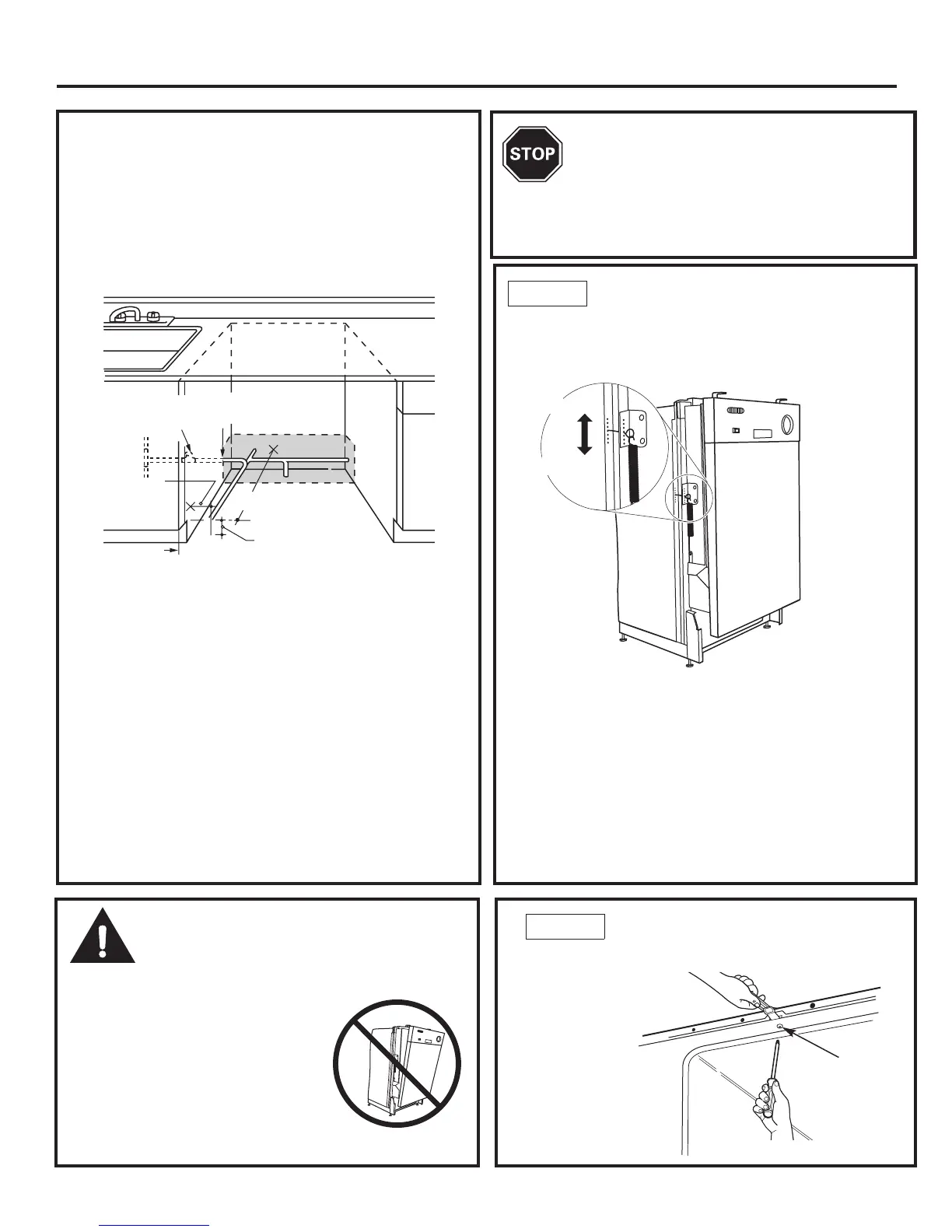

Installation Instructions
5
PREPARE HOT WATER LINE
• The line may enter from either side, rear or floor
within the shaded area shown in Figure F.
• The line may pass through the same hole as the
electrical cable and drain hose. Or, cut an additional
1-1/2” dia. hole to accommodate the water line.
If power cord with plug is used, water line must not
pass through power cord hole.
Figure F
Water Line Connection
• Turn off the water supply.
• Install a hand shut-off valve in an accessible location,
such as under the sink. (Optional, but strongly
recommended and may be required by local codes.)
• Water connection is on the left side of the dish-
washer. Install the hot water inlet line, using no less
than 3/8” O.D. copper tubing. Route the line as shown
in Figure F and extend forward at least 18" from rear
• Adjust water heater for 120°F to 150°F temperature.
• Flush water line to clean out debris.
• The hot water supply line pressure must be 20-120 PSI.
CAUTION:
Opening the door will cause the dish-
washer to tip forward.
Do not open the door until you
are ready to install the dishwasher. If it is
necessary to open the door, hold
the top of the dishwasher securely
with one hand and hold the door
with the other hand.
• Open the door slowly, if the door drops when
released, increase spring tension. If the door closes
when released, decrease tension.
• Pull the spring adjustment pin out of the holes, insert
in the next highest or lowest hole and test again.
• Adjust both door springs to the same tension.
• Continue moving the spring pin until door is balanced.
STEP 1 CHECK DOOR BALANCE
To check the door balance, hold the top of the
dishwasher firmly.
Figure G
BEFORE YOU BEGIN
Locate and set aside the package
containing 2
Phillips head countertop
mounting screws and 2 additional toe-
kick screws located in the literature
Cabinet Face
Shut-off
Valve
3" From Floor
18" From Wall
4"
From
Cabinet
1-1/2" Dia.
Hole
Hot
Increase
Decrease
wall.
package.
(To reposition the spring adjustment pin, it may be
easier to unhook the spring from the bottom first).
Door latch keeper
Hold nut at top of dishwasher
and loosen
screw
STEP 1B CHECK DOOR CLOSURE
• If the door latch is
difficult to open or
close, adjust
the latch by
loosening the
screw as shown
in the diagram.
