Installation Instructions
CONNECTING AN ELECTRIC DRYER
(Skip for gas dryers and if your dryer already has a power cord attached)
Before making the electrical connection, turn off
the circuit breaker(s) or remove the dryer’s circuit
fuse(s) at the electrical box. Be sure the dryer cord
is unplugged from the wall.
NEVER LEAVE THE
ACCESS COVER OFF THE TERMINAL BLOCK.
9

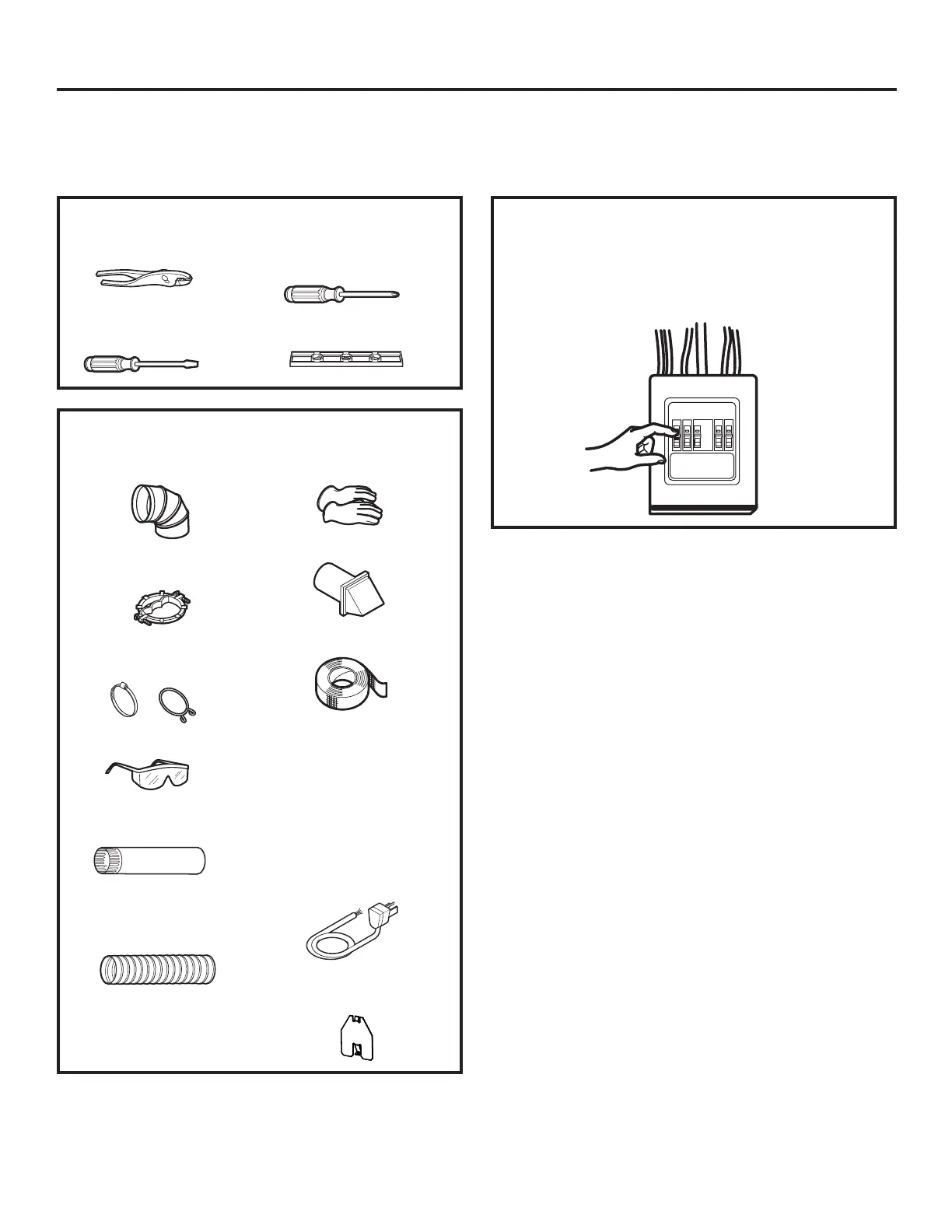

MATERIALS YOU WILL NEED
4” dia. metal elbow
3/4” Strain relief
(UL recognized)
4” Duct clamps (2) or
4” spring clamps (2)
Safety glasses
4” dia. metal duct
(recommended)
4” Cover plate (Kit
WE49X22606)
Gloves
Exhaust hood
Duct tape
TOOLS YOU WILL NEED
Slip-joint pliers
Flat-blade
screwdriver
Phillips
screwdriver
Level
4” dia., UL-listed
flexible metal duct (if
needed)
Dryer power cord kit
(not provided with
dryer)
UL rated 120/240V,
30A with 3 or 4 prongs.
Identify the plug type
as per the house
receptacle before
purchasing line cord.
