Installation Instructions
CONNECTING A GAS DRYER (skip for electric dryers)
• Before beginning the installation, turn off the circuit
breaker(s) or remove the dryer’s circuit fuse(s) at
the electrical box. Be sure the dryer
cord is unplugged from the wall.
• Turn the dryer’s gas shut-off valve in the supply line
to the OFF position.
• Disconnect and discard old flexible gas connector
and ducting material.
Shut-off
Valve

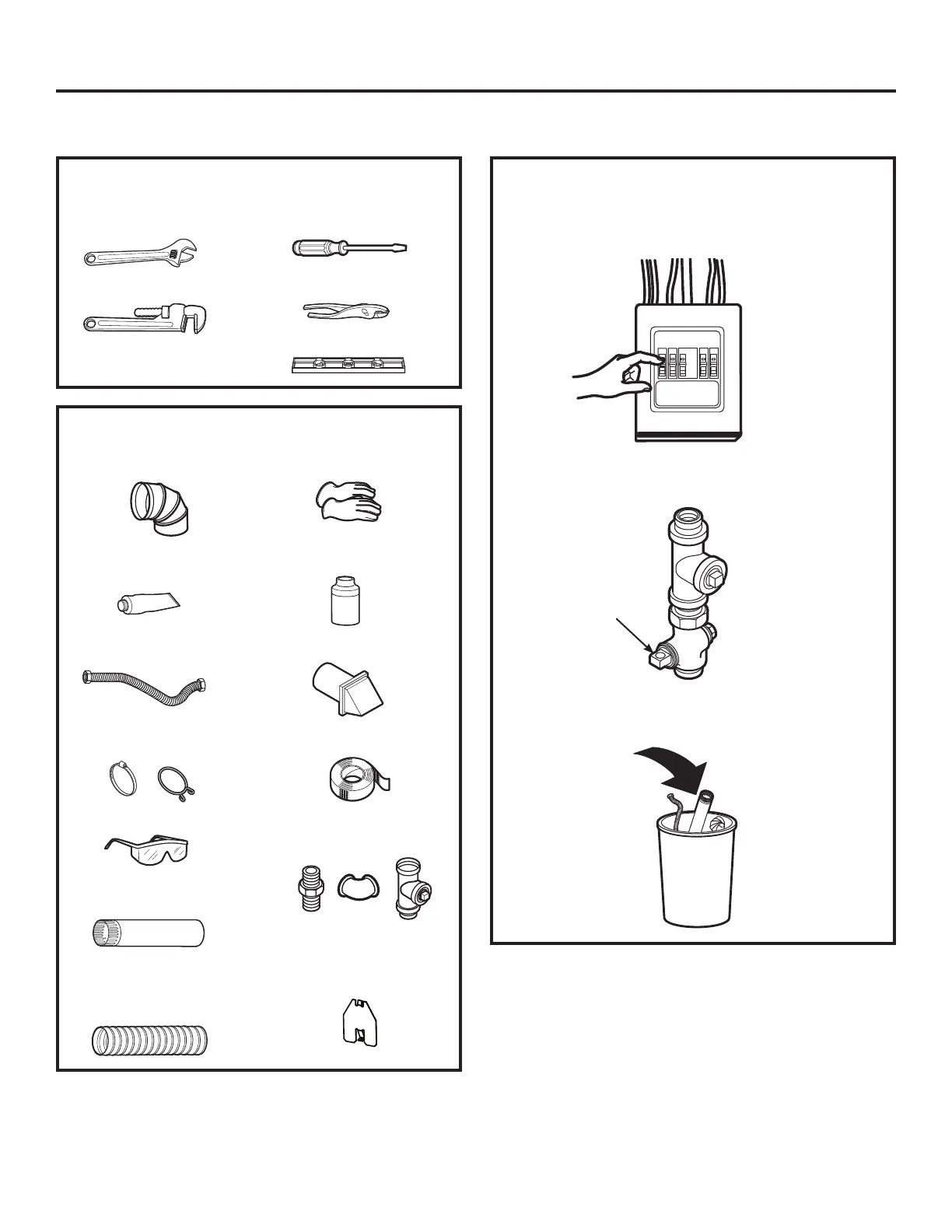

MATERIALS YOU WILL NEED
Ŷ
Ŷ
4” dia. metal elbow
Ŷ
Ŷ
Pipe compound or
PTFE tape
Ŷ
Ŷ
Flexible gas line
connector
Ŷ
Ŷ
Duct clamps (2) or
Spring clamps (2)
Ŷ
Ŷ
Safety glasses
Ŷ
Ŷ
4” dia. metal duct
(recommended)
Ŷ
Ŷ
Gloves
Ŷ
Ŷ
Soap solution for
leak detection
Ŷ
Ŷ
Exhaust hood
Ŷ
Ŷ
Aluminum foil tape
Ŷ
Ŷ
Gas pipe adapters (2),
elbow and pipe plug
TOOLS YOU WILL NEED
Ŷ
Ŷ
10” Adjustable
wrenches (2)
Ŷ
Ŷ
8” Pipe wrench
Ŷ
Ŷ
Flat-blade
screwdriver
Ŷ
Ŷ
Level
Ŷ
Ŷ
Slip-joint pliers
Ŷ
Ŷ
4” dia., UL-listed
flexible metal duct
(if needed)
Ŷ
Ŷ
4” Cover Plate
(Kit WE49X22606)
(if needed)
