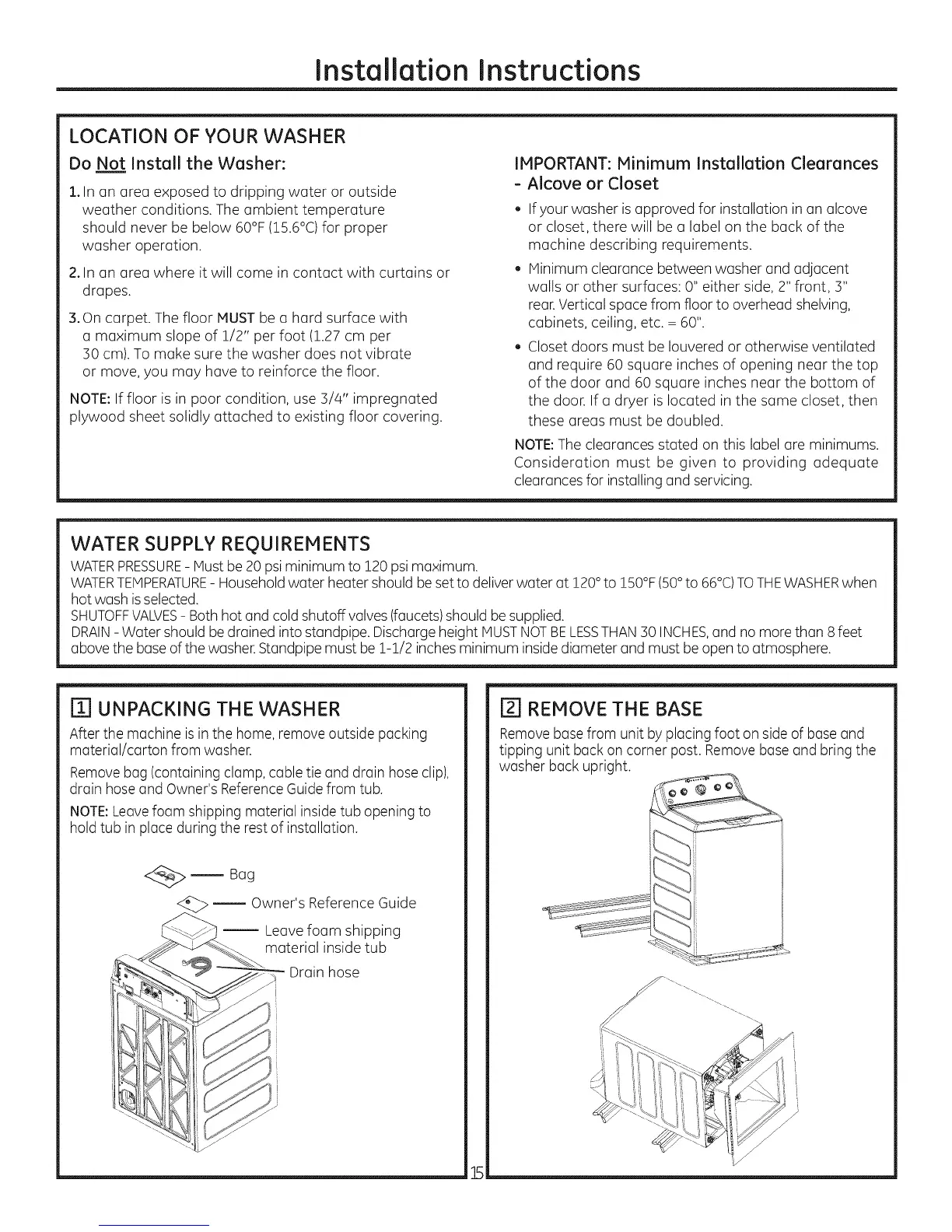

Installation Instructions
LOCATION OF YOUR WASHER
Do Not Install the Washer:
1.In an area exposed to dripping water or outside
weather conditions. The ambient temperature
should never be below 60°F (!5.6°C) for proper
washer operation.
2.In an area where it will come in contact with curtains or
drapes.
S.On carpet. The floor MUST be a hard surface with
a maximum slope of 1/2" per foot (1.27 cm per
30 cm). To make sure the washer does not vibrate
or move, you may have to reinforce the floor.
NOTE:If floor is in poor condition, use 3/4" impregnated
plywood sheet solidly attached to existing floor covering.
IMPORTANT: Minimum Installation Clearances
- Alcove or Closet
. Ifyour washer is approved for installation in an alcove
or closet, there will be a label on the back of the
machine describing requirements.
. Hinimum clearance between washer and adjacent
walls or other surfaces: 0" either side, 2" front, 3"
rear.Vertical space from floor to overhead shelving,
cabinets, ceiling, etc. = 60".
. Closet doors must be Iouvered or otherwise ventilated
and require 60 square inches of opening near the top
of the door and 60 square inches near the bottom of
the door. If a dryer is located in the same closet, then
these areas must be doubled.
NOTE:The clearances stated on this label are minimums.
Consideration must be given to providing adequate
clearances for installing and servicing.
WATER SUPPLY REQUIREMENTS
WATERPRESSURE- Must be 20 psi minimum to 120 psimaximum.
WATERTEHPERATURE- Householdwater heater should besetto deliver water at 120° to !50°F (50°to 66°@TOTHEWASHERwhen
hotwash is selected.
SHUTOFFVALVES- Bothhot and cold shutoff valves (faucets)should be supplied.
DRAIN- Water should be drained into standpipe. Dischargeheight HUSTNOTBELESSTHAN30 INCHES,and no more than 8 feet
above the baseof the washer. Standpipe must be 1-1/2 inches minimum inside diameter and must be open to atmosphere.
[!] UNPACKING THE WASHER
After the machine isin the home, remove outside packing
material/carton from washer.
Removebag (containing clamp, cabletie and drain hoseclip),
drain hose and Owner's ReferenceGuidefrom tub.
NOTE:Leavefoam shipping material insidetub opening to
hold tub in placeduring the rest of installation.
_._ _ Bag
Owner's Reference Guide
Leave foam shipping
material inside tub
F2] REMOVE THE BASE
Removebase from unit by placing foot on side of base and
tipping unit back on corner post. Remove base and bring the
washer back upright.
5
