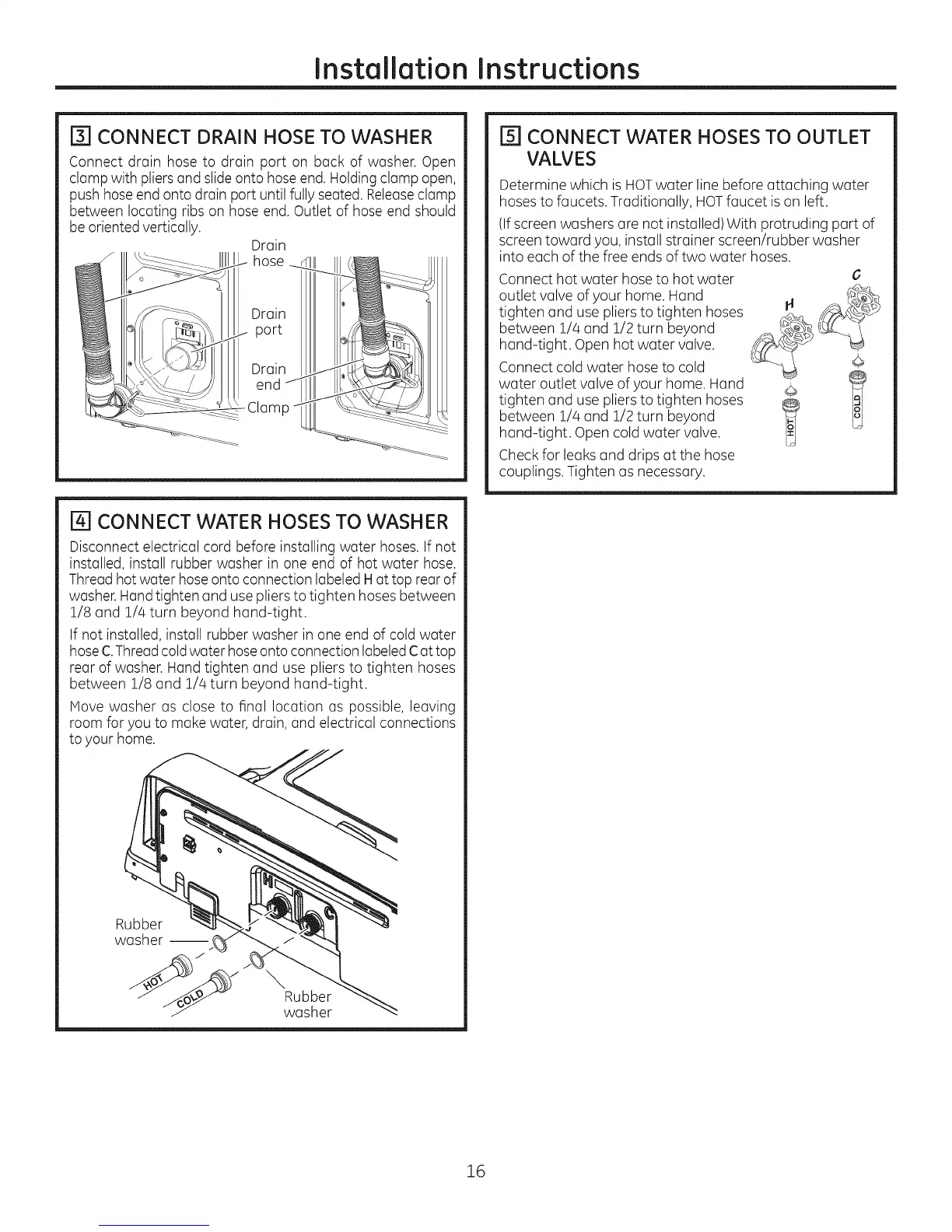

Installation Instructions
_] CONNECT DRAIN HOSE TO WASHER
Connect drain hose to drain port on back of washer. Open
clamp with pliers and slide onto hoseend. Holding clamp open,
pushhoseend onto drain port until fully seated. Releaseclamp
between locating ribs on hose end. Outlet of hose end should
be oriented vertically.
Drain
[_] CONNECT WATER HOSES TO WASHER
Disconnect electrical cord before installing water hoses. If not
installed, install rubber washer in one end of hot water hose.
Thread hotwater hoseonto connection labeled Hat top rear of
washer.Handtighten and usepliers to tighten hoses between
1/8 and 1/4 turn beyond hand-tight.
If not installed, install rubber washer in one end of cold water
hoseC.Threadcoldwater hose onto connection labeledCattop
rear of washer. Hand tighten and use pliers to tighten hoses
between 1/8 and 1/4 turn beyond hand-tight.
Move washer as close to final location as possible, leaving
room for you to make water, drain, and electrical connections
to your home.
_] CONNECT WATER HOSES TO OUTLET
VALVES
Determine which is HOTwater line before attaching water
hoses to faucets. Traditionally, HOTfaucet is on left.
(If screen washers are not installed) With protruding part of
screen toward you, install strainer screen/rubber washer
into each of the free ends of two water hoses.
Connect hot water hose to hot water
outlet valve of your home. Hand
tighten and use pliers to tighten hoses
between 1/4 and 1/2 turn beyond
hand-tight. Open hot water valve.
Connect cold water hose to cold
water outlet valve of your home. Hand
tighten and use pliers to tighten hoses
between 1/4 and 1/2 turn beyond
hand-tight. Open cold water valve.
Check for leaks and drips at the hose
couplings. Tighten as necessary.
Rubber
washer --
\
Rubber
washer
16
