GE GTW485 series

Installation Instructions

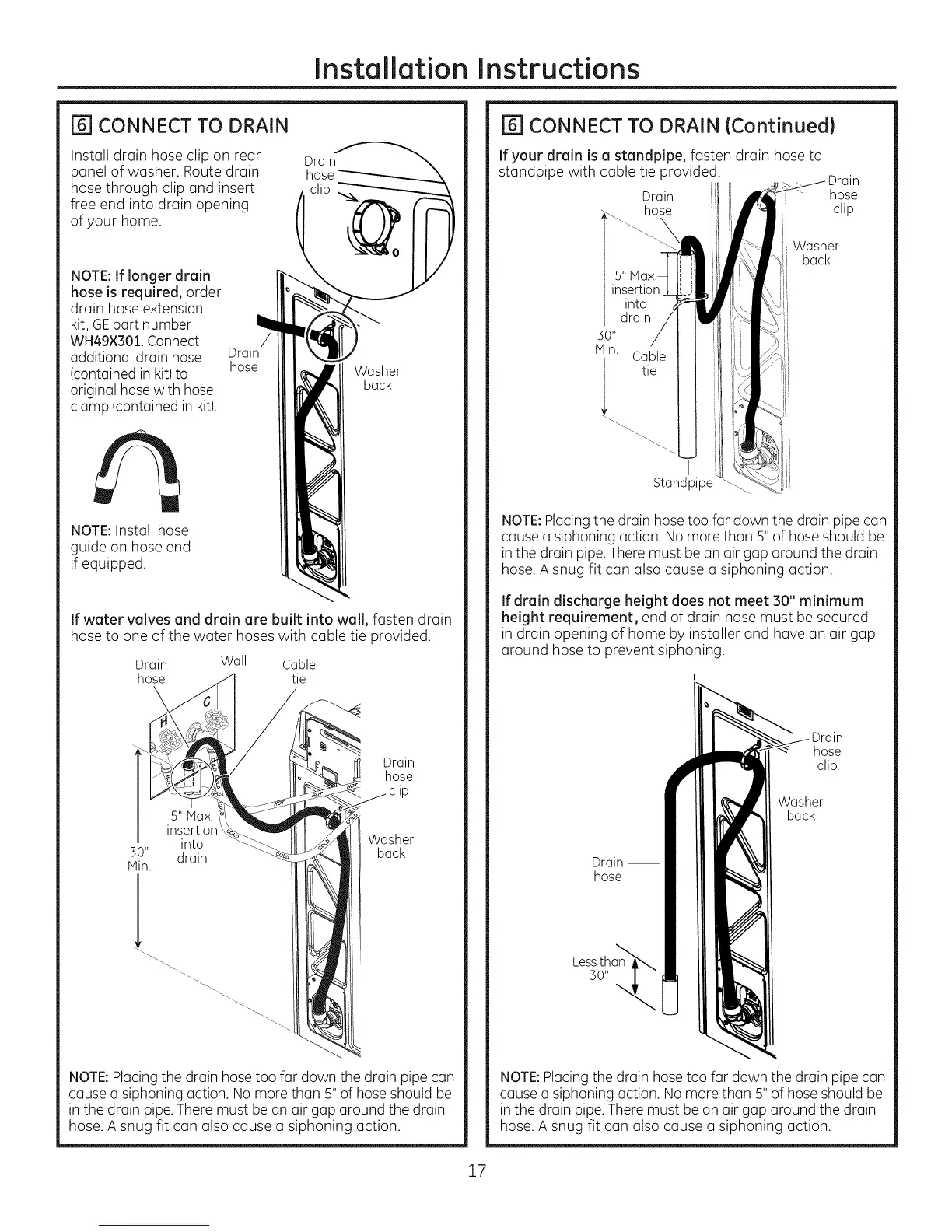

[] CONNECT TO DRAIN
Install drain hose clip on rear
panel of washer. Route drain
hose through clip and insert
free end into drain opening
of your home.
NOTE:If longer drain
hose is required, order
drain hose extension
kit, GEpart number
WH49×301. Connect
additional drain hose
(contained in kit)to
original hose with hose
clamp (contained in kit).
Drain/
hose
NOTE:Install hose
guide on hose end
if equipped.
_rain_
clip__
)
Washer
back
If water valves and drain are built into wall, fasten drain
hose to one of the water hoses with cable tie provided.
Drain Wall Cable
hose tie
\
Drain
hose
Washer
back
NOTE:Placingthe drain hose too far down the drain pipe can
cause a siphoning action. No more than 5" of hose should be
in the drain pipe.There must be an air gap around the drain
hose. A snug fit can also cause a siphoning action.
CONNECT TO DRAIN (Continued}
If your drain is a standpipe, fasten drain hose to
standpipe with cable tie provided.
Drain
hose
hose
clip
Washer
back
Standpipe
NOTE:Placingthe drain hose too far down the drain pipe can
cause a siphoning action. No more than 5" of hose should be
in the drain pipe.There must be an air gap around the drain
hose. A snug fit can also cause a siphoning action.
If drain discharge height does not meet 30" minimum
height requirement, end of drain hose must be secured
in drain opening of home by installer and have an air gap
around hose to prevent siphoning.
hose
clip
Washer
back
Drain --
hose
NOTE:Placingthe drain hose too far down the drain pipe can
cause a siphoning action. No more than 5" of hose should be
in the drain pipe.There must be an air gap around the drain
hose. A snug fit can also cause a siphoning action.
17
