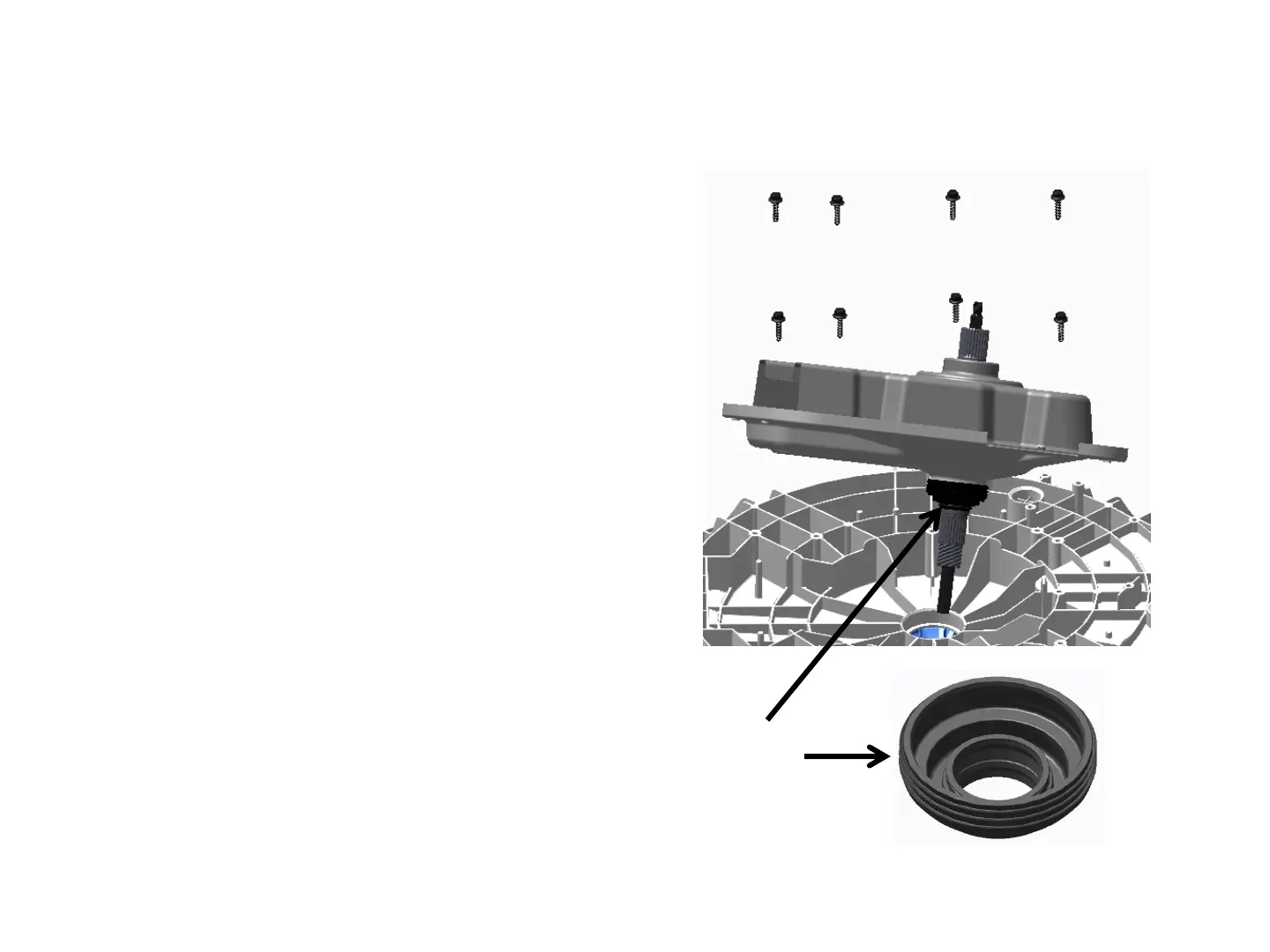

Platform Transmission Assembly
To remove the platform assembly after all
other components have been removed
remove the eight 3/8
th
hex head bolts and
pull the platform away from the tub.
Note: The bottom of the tub can be used to
pry the platform transmission assembly off of
the tub.
The tub seal is pressed on to the platform
transmission assembly. If there is a leak from
the seal, the complete transmission will need
to be replaced.
Triple Lip
Tub Seal
To Next Page
