Platform Transmission Assembly
To reinstall the platform assembly to
the tub, slide the shaft of the
transmission into the opening of the
tub.
Press the tub seal into the tub
opening.

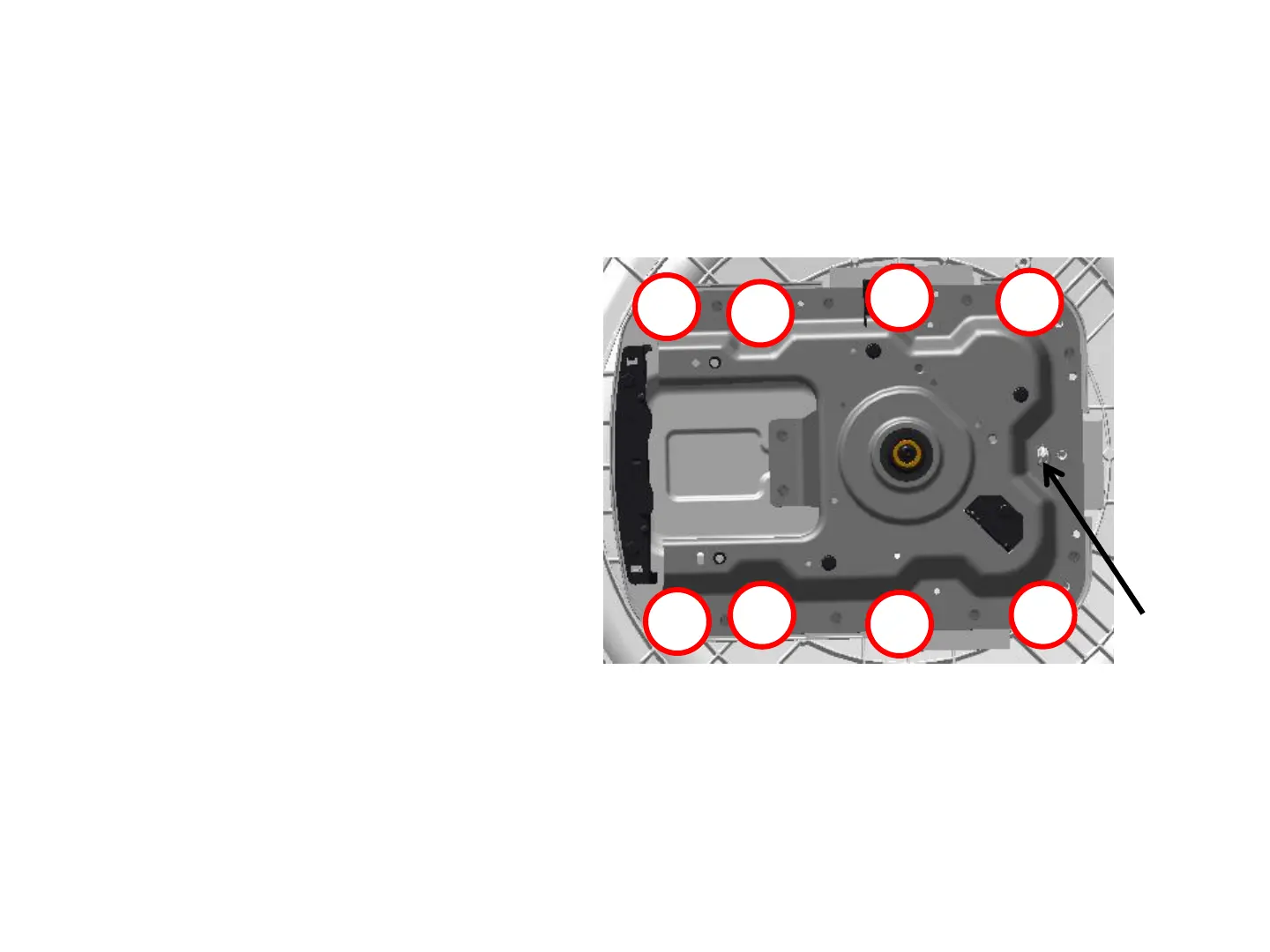

Note: Line the guide post with the
opening in the platform.
Tighten the eight hex head bolts in a
crisscross pattern so that the seal is
pulled into the tub evenly and
securely.
This is done by tightening each bolt
about 1/4 of the way in at a time.
Torque to 65 in-lbs.
Guide
Post
8
7
6
5
4
3
2
1
To Next Page
