GFK-2847 QuickPanel+ User’s Manual–November 2013
Chapter 1 Introduction
1.2 QuickPanel+ Hardware User Features
In addition to the primary touch screen interface, the QuickPanel+ supports a variety of
communication ports. The following diagrams show the physical layout of the QuickPanel+ including
locations of status LEDs, communications ports, and connectors.
1.2.1 Overview
Bottom

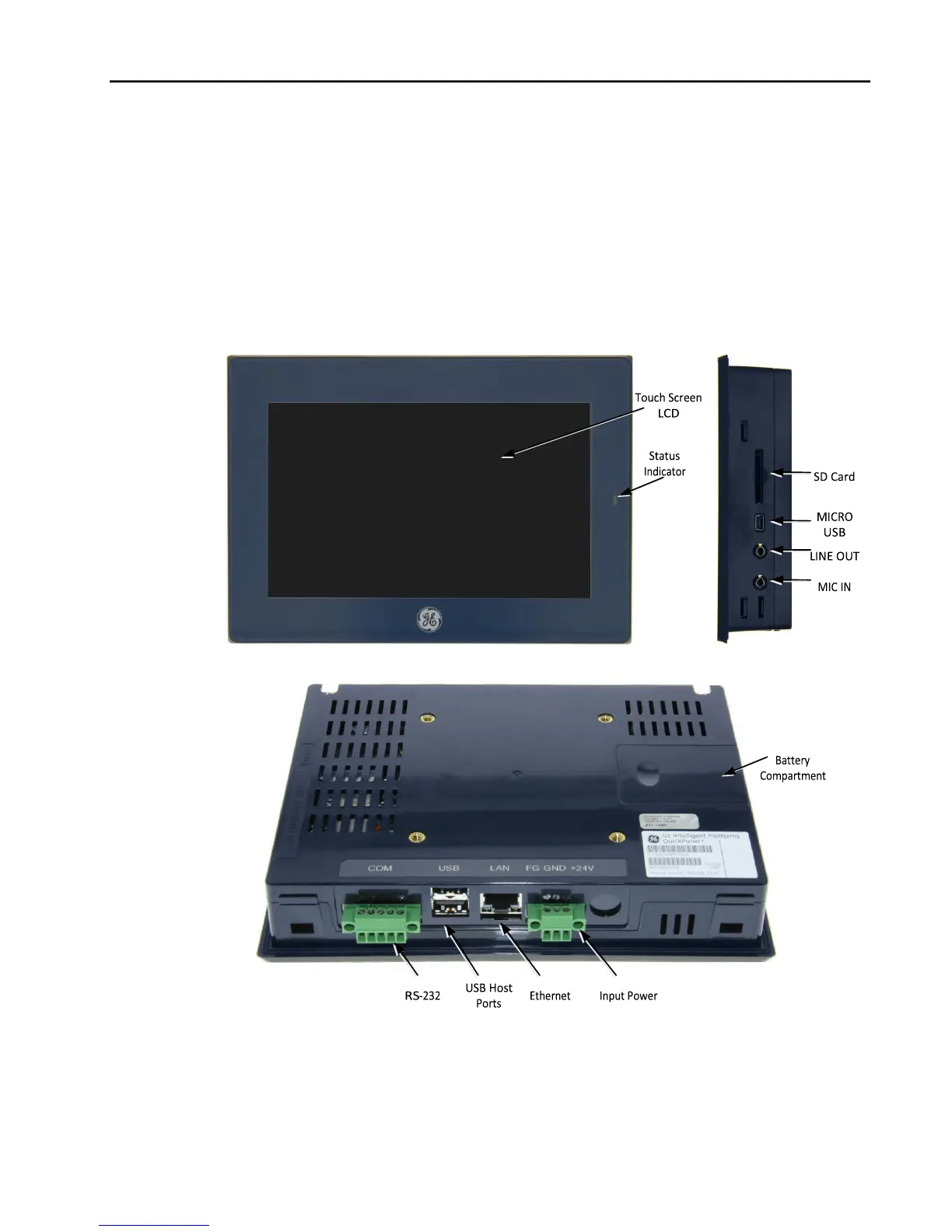

Figure 1. QuickPanel+ Hardware Features
Chapter 1. Introduction
