1.2.2 Status Indicators
The QuickPanel+ operator interface has a tri-color LED that provides visual status indications
and an on-board buzzer for audio indications.
1.2.2.1 QuickPanel+ Status LED Operation
LED State
QuickPanel+ State
Amber, steady
Operating system starting
Green, steady
Normal operating state
Green, blinking
Backlight off
Red, blinking
Backlight fail
Off
Power not applied to the QuickPanel+

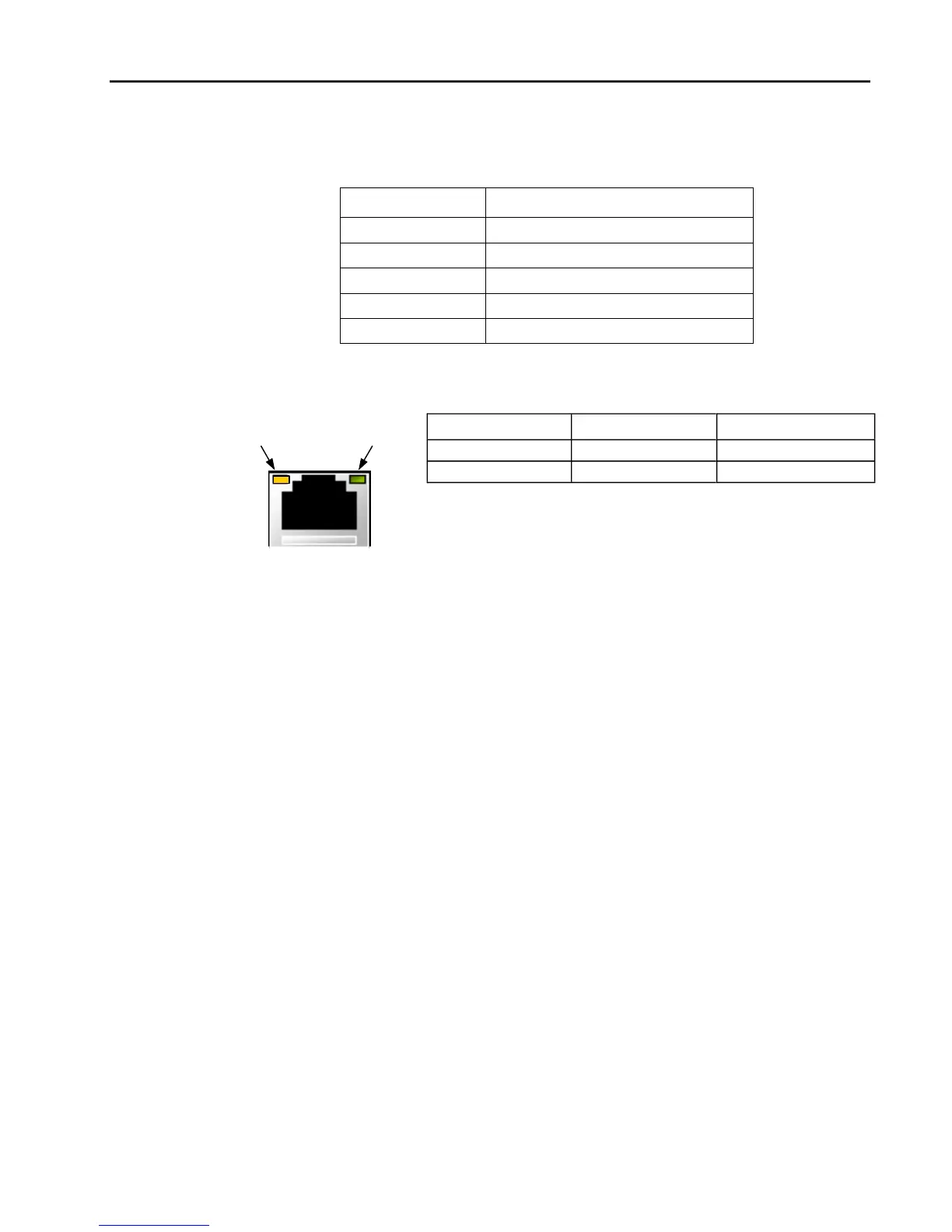

1.2.2.2 Ethernet Port LED Operation
The Ethernet port has two LED indicators, ACTIVITY and LINK.
Speed
Link Activity
GFK-2847 QuickPanel+ User’s Manual–November 2013
LED
LED State
Operating State
Speed
On, Yellow
10/100
Link
Activity
On, Green
L
ink status
